853-83 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 90POS 0.05 GOLD PCB

...

Part	Contact Material	Contact Shape	Insulation Material	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Finish - Mating	Connector Type	Mounting Type	Insulation Color	Contact Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Termination	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Features

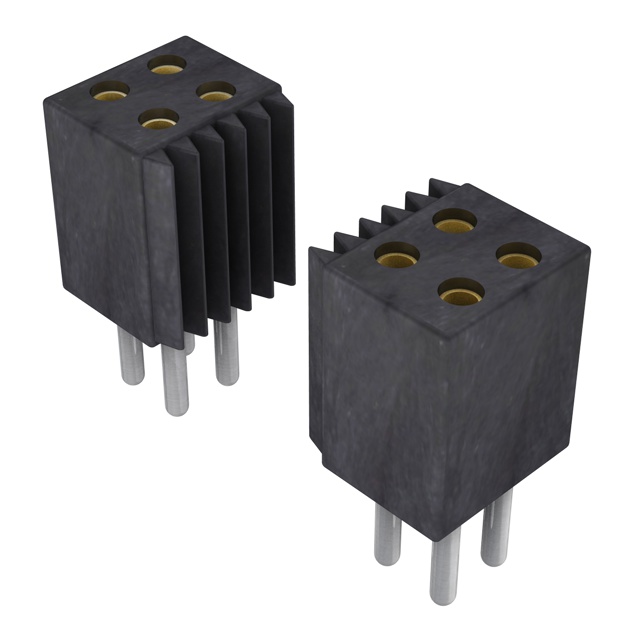

Preci-Dip 853-83-090-10-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4 mm	0.157 in	1.27 mm	0.05 in	2	Gold	Socket	Through Hole	Black	Female Socket	29.5 µin	0.75 µm	UL94 V-0	All	-55 C	125 °C	Tin	0.05 in	1.27 mm	Solder	Push-Pull	2.4 mm	0.094 in	90

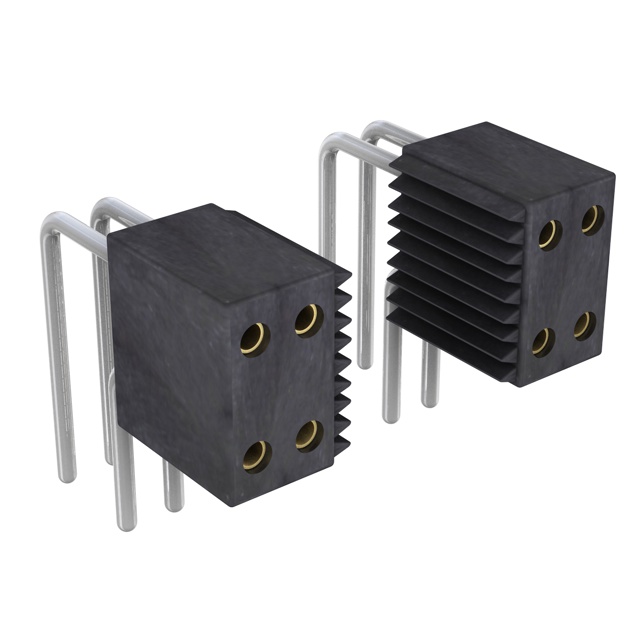

Preci-Dip 853-83-026-20-002101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			1.27 mm	0.05 in	2	Gold	Socket	Right Angle Through Hole	Black	Female Socket	29.5 µin	0.75 µm	UL94 V-0	All	-55 C	125 °C	Tin			Solder	Push-Pull			26	0.1 in	2.54 mm	0.174 in	4.42 mm	0.126 "	3.2 mm

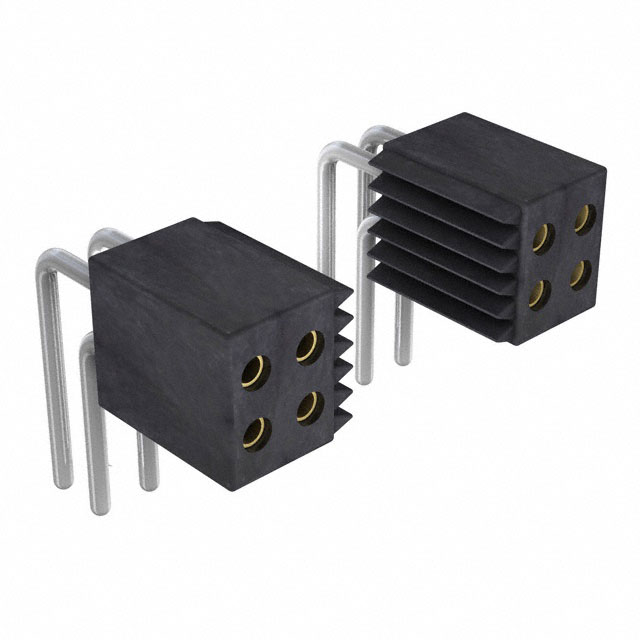

Preci-Dip 853-83-028-20-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			1.27 mm	0.05 in	2	Gold	Socket	Right Angle Through Hole	Black	Female Socket	29.5 µin	0.75 µm	UL94 V-0	All	-55 C	125 °C	Tin	0.05 in	1.27 mm	Solder	Push-Pull	3.3 mm	0.13 "	28			0.128 in	3.25 mm

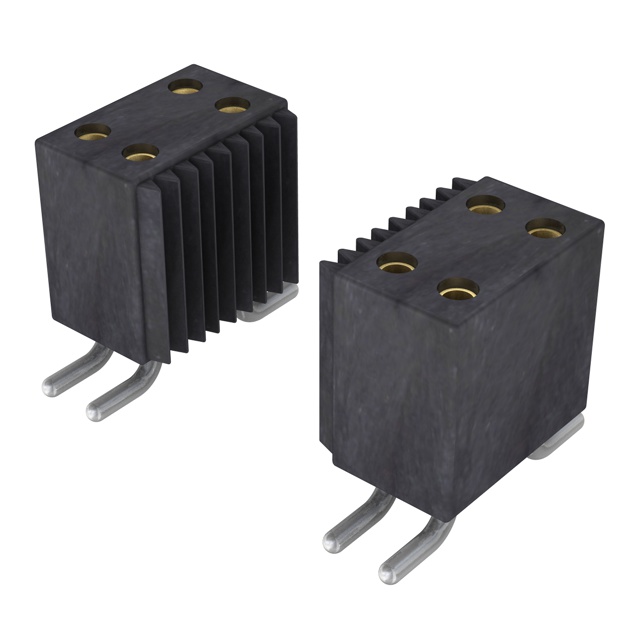

Preci-Dip 853-83-010-30-002191	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			1.27 mm	0.05 in	2	Gold	Socket	Surface Mount	Black	Female Socket	29.5 µin	0.75 µm	UL94 V-0	All	-55 C	125 °C	Tin			Solder	Push-Pull			10	0.1 in	2.54 mm	0.203 in	5.16 mm			Pick and Place
Preci-Dip 853-83-036-30-001191	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			1.27 mm	0.05 in	2	Gold	Socket	Surface Mount	Black	Female Socket	29.5 µin	0.75 µm	UL94 V-0	All	-55 C	125 °C	Tin	0.05 in	1.27 mm	Solder	Push-Pull			36			0.203 in	5.16 mm			Pick and Place
Preci-Dip 853-83-066-20-002101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			1.27 mm	0.05 in	2	Gold	Socket	Right Angle Through Hole	Black	Female Socket	29.5 µin	0.75 µm	UL94 V-0	All	-55 C	125 °C	Tin			Solder	Push-Pull			66	0.1 in	2.54 mm	0.174 in	4.42 mm	0.126 "	3.2 mm
Preci-Dip 853-83-074-20-002101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			1.27 mm	0.05 in	2	Gold	Socket	Right Angle Through Hole	Black	Female Socket	29.5 µin	0.75 µm	UL94 V-0	All	-55 C	125 °C	Tin			Solder	Push-Pull			74	0.1 in	2.54 mm	0.174 in	4.42 mm	0.126 "	3.2 mm
Preci-Dip 853-83-092-30-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			1.27 mm	0.05 in	2	Gold	Socket	Surface Mount	Black	Female Socket	29.5 µin	0.75 µm	UL94 V-0	All	-55 C	125 °C	Tin	0.05 in	1.27 mm	Solder	Push-Pull			92			0.203 in	5.16 mm
Preci-Dip 853-83-044-20-002101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			1.27 mm	0.05 in	2	Gold	Socket	Right Angle Through Hole	Black	Female Socket	29.5 µin	0.75 µm	UL94 V-0	All	-55 C	125 °C	Tin			Solder	Push-Pull			44	0.1 in	2.54 mm	0.174 in	4.42 mm	0.126 "	3.2 mm
Preci-Dip 853-83-100-20-002101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			1.27 mm	0.05 in	2	Gold	Socket	Right Angle Through Hole	Black	Female Socket	29.5 µin	0.75 µm	UL94 V-0	All	-55 C	125 °C	Tin			Solder	Push-Pull			100	0.1 in	2.54 mm	0.174 in	4.42 mm	0.126 "	3.2 mm
