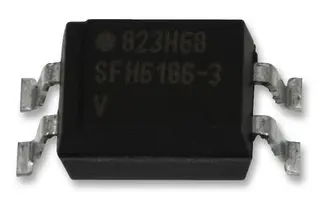

SFH6156 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

OPTOISOLATOR 5.3KV TRANS 4SMD

Part	Input Type	Supplier Device Package	Current - DC Forward (If) (Max) [Max]	Voltage - Output (Max) [Max]	Turn On / Turn Off Time (Typ)	Current Transfer Ratio (Max)	Voltage - Isolation	Current Transfer Ratio (Min) [Min]	Package / Case	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Number of Channels	Mounting Type	Vce Saturation (Max) [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
Vishay General Semiconductor - Diodes Division SFH6156-4	DC	4-SMD	60 mA	70 V	2.3 µs 3 µs	320 %	5300 Vrms	160 %	4-SMD Gull Wing	50 mA	1.25 V	1	Surface Mount	400 mV	1.81 mOhm	100 °C	-55 °C	2 µs	2 µs
Vishay General Semiconductor - Diodes Division SFH6156-3T	DC	4-SMD	60 mA	70 V	2.3 µs 3 µs	200 %	5300 Vrms	100 %	4-SMD Gull Wing	50 mA	1.25 V	1	Surface Mount	400 mV	1.81 mOhm	100 °C	-55 °C	2 µs	2 µs
Vishay General Semiconductor - Diodes Division SFH6156-2X001T	DC	4-SMD	60 mA	70 V	2.3 µs 3 µs	125 %	5300 Vrms	63 %	4-SMD Gull Wing	50 mA	1.25 V	1	Surface Mount	400 mV	1.81 mOhm	100 °C	-55 °C	2 µs	2 µs
Vishay General Semiconductor - Diodes Division SFH6156-1X001T	DC	4-SMD	60 mA	70 V	2.3 µs 3 µs	80 %	5300 Vrms	40 %	4-SMD Gull Wing	50 mA	1.25 V	1	Surface Mount	400 mV	1.81 mOhm	100 °C	-55 °C	2 µs	2 µs
Vishay General Semiconductor - Diodes Division SFH6156-3TX001	DC	4-SMD	60 mA	70 V	2.3 µs 3 µs	200 %	5300 Vrms	100 %	4-SMD Gull Wing	50 mA	1.25 V	1	Surface Mount	400 mV	1.81 mOhm	100 °C	-55 °C	2 µs	2 µs
Vishay General Semiconductor - Diodes Division SFH6156-3T0	DC	4-SMD	60 mA	70 V	2.3 µs 3 µs	200 %	5300 Vrms	100 %	4-SMD Gull Wing	50 mA	1.25 V	1	Surface Mount	400 mV	1.81 mOhm	100 °C	-55 °C	2 µs	2 µs
Vishay General Semiconductor - Diodes Division SFH6156-2T	DC	4-SMD	60 mA	70 V	2.3 µs 3 µs	125 %	5300 Vrms	63 %	4-SMD Gull Wing	50 mA	1.25 V	1	Surface Mount	400 mV	1.81 mOhm	100 °C	-55 °C	2 µs	2 µs
Vishay General Semiconductor - Diodes Division SFH6156-2	DC	4-SMD	60 mA	70 V	2.3 µs 3 µs	125 %	5300 Vrms	63 %	4-SMD Gull Wing	50 mA	1.25 V	1	Surface Mount	400 mV	1.81 mOhm	100 °C	-55 °C	2 µs	2 µs
Vishay General Semiconductor - Diodes Division SFH6156-3X001	DC	4-SMD	60 mA	70 V	2.3 µs 3 µs	200 %	5300 Vrms	100 %	4-SMD Gull Wing	50 mA	1.25 V	1	Surface Mount	400 mV	1.81 mOhm	100 °C	-55 °C	2 µs	2 µs
Vishay General Semiconductor - Diodes Division SFH6156-1	DC	4-SMD	60 mA	70 V	2.3 µs 3 µs	80 %	5300 Vrms	40 %	4-SMD Gull Wing	50 mA	1.25 V	1	Surface Mount	400 mV	1.81 mOhm	100 °C	-55 °C	2 µs	2 µs
