821949 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

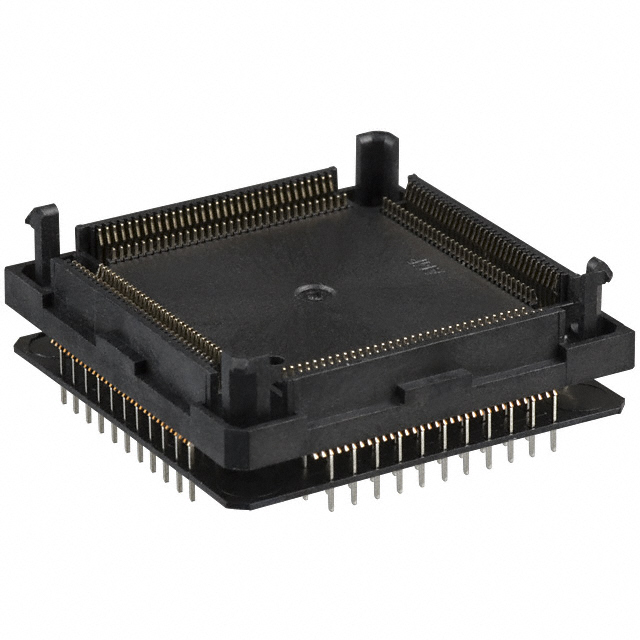

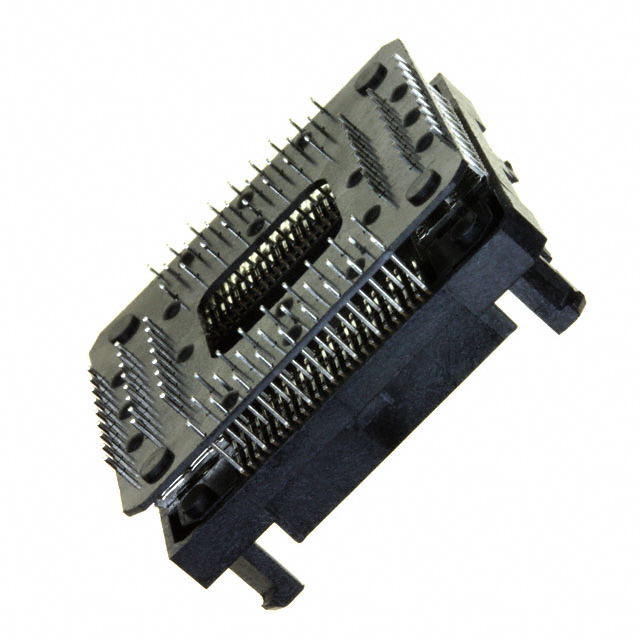

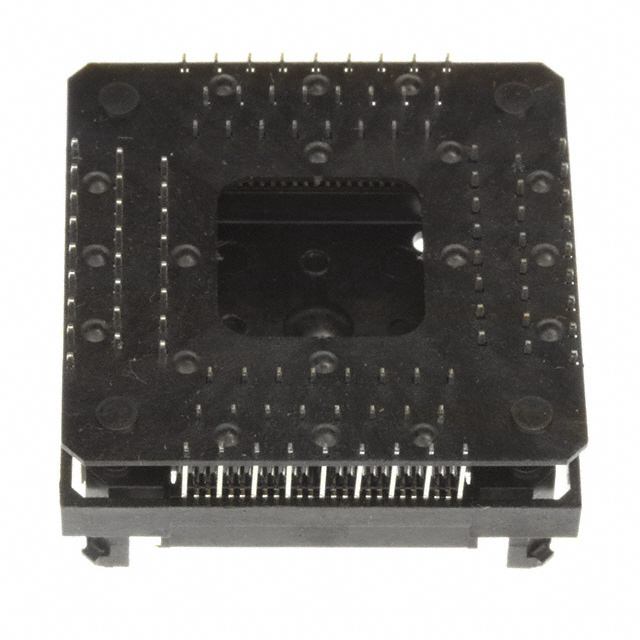

IC & COMPONENT SOCKET, 100 CONTACTS, PQFP SOCKET, 0.64 MM, MICRO-PITCH SERIES, PHOSPHOR BRONZE
| Part | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Pitch - Mating | Pitch - Mating | Termination | Housing Material | Type | Contact Material - Mating | Pitch - Post | Pitch - Post | Contact Material - Post | Contact Finish - Post | Mounting Type | Contact Finish - Mating | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.43 mm | 0.135 in | UL94 V-0 | 200 µin | 5.08 µm | 5.08 µm | 200 µin | Closed Frame | 4 | 25 | 100 | 1.27 mm | 0.05 in | Solder | Liquid Crystal Polymer (LCP) | QFP | Phosphor Bronze | 0.05 in | 1.27 mm | Phosphor Bronze | Tin-Lead | Through Hole | Tin-Lead | ||
 TE Connectivity AMP Connectors | 3.43 mm | 0.135 in | UL94 V-0 | 200 µin | 5.08 µm | 5.08 µm | 200 µin | Closed Frame | 4 | 25 | 100 | 1.27 mm | 0.05 in | Solder | Liquid Crystal Polymer (LCP) | QFP | Phosphor Bronze | 0.05 in | 1.27 mm | Phosphor Bronze | Tin-Lead | Through Hole | Tin-Lead | ||
 TE Connectivity AMP Connectors | 3.43 mm | 0.135 in | UL94 V-0 | 200 µin | 5.08 µm | 5.08 µm | 200 µin | Closed Frame | 132 | 1.27 mm | 0.05 in | Solder | Liquid Crystal Polymer (LCP) | QFP | Phosphor Bronze | 0.05 in | 1.27 mm | Phosphor Bronze | Tin-Lead | Through Hole | Tin-Lead | 33 | 4 | ||
 TE Connectivity AMP Connectors | 3.43 mm | 0.135 in | UL94 V-0 | 200 µin | 5.08 µm | 5.08 µm | 200 µin | Closed Frame | 132 | 1.27 mm | 0.05 in | Solder | Liquid Crystal Polymer (LCP) | QFP | Phosphor Bronze | 0.05 in | 1.27 mm | Phosphor Bronze | Tin-Lead | Through Hole | Tin-Lead | 33 | 4 |
