9964 Series
Manufacturer: Belden Inc.
Beta
⌘K

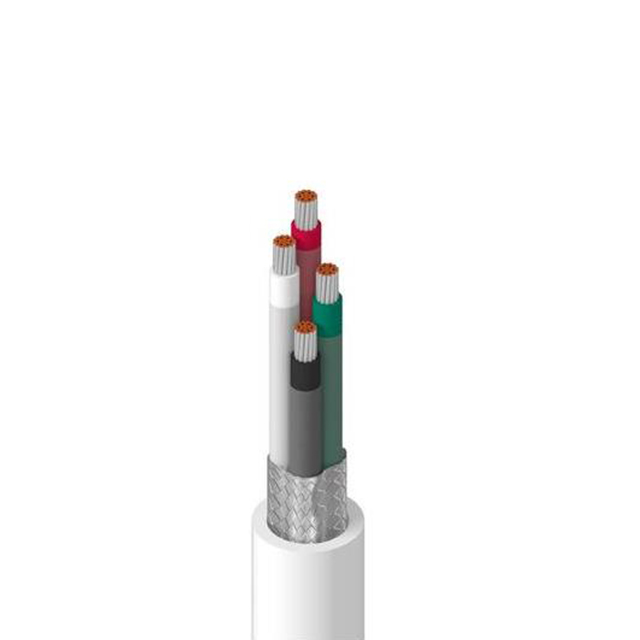

CABLE 4CON 20AWG WHT SHLD
| Part | Shield Coverage | Shield Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket Color | Shield Type | Conductor Insulation | Conductor Insulation | Conductor Insulation | Usage | Jacket (Insulation) Material | Conductor Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 90 % | Copper Tinned | 4 | 19 | 32 AWG | 0.635 mm | 0.025 in | 20 AWG | White | Braid | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | Communications | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | 5.74 mm | 0.226 in | 100 ft | 30.5 m | -20 ░C | 105 ░C | ||
 Belden Inc. | 90 % | Copper Tinned | 4 | 19 | 32 AWG | 0.635 mm | 0.025 in | 20 AWG | White | Braid | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | Communications | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | 5.74 mm | 0.226 in | -20 ░C | 105 ░C | 304.8 m | 1000 ft |
