963539 Series

Catalog

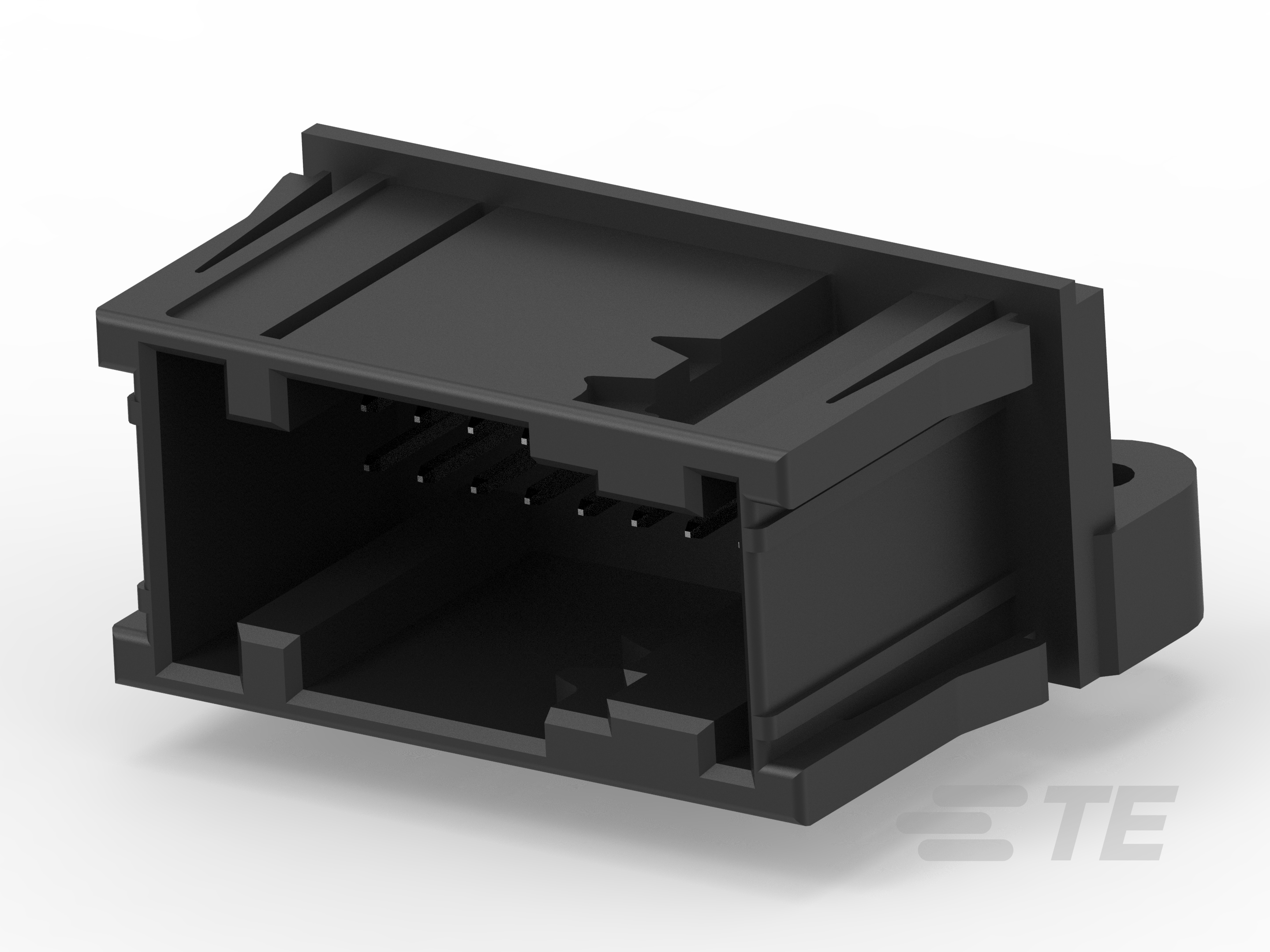

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 18 CONTACTS, THROUGH HOLE RIGHT ANGLE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Shape	Mounting Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Insulation Height	Insulation Height	Contact Material	Insulation Material	Contact Type	Features	Number of Rows [custom]	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Contact Length - Post [custom]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions	Termination	Style
TE Connectivity AMP Connectors 1-963539-1	130 °C	-40 C	Header	Square	Right Angle Through Hole	6.7 mm	0.264 in	Shrouded - 4 Wall	17 mm	0.669 in	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Mounting Flange	2	All	Tin	Black	0.11 in	2.79 mm	0.1 "	2.54 mm	Latch Lock	18	Solder	Board to Cable/Wire
