3RH24311 Series

Manufacturer: Siemens

Catalog

CONT RELAY LATCHED,3NO+1NC,DC 32

Part	Release Time	Coil Power	Operate Time	Switching Voltage [Max]	Features	Termination Style	Contact Form	Coil Voltage	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Mounting Type
Siemens 3RH24311UW80	13 ms	4 W	100 ms	690 VAC	Auxiliary Contacts	Screw Terminal	4PST-3NO/1NC (3 Form A 1 Form B)	32 VDC	25.6 VDC	-25 °C	60 °C	10 A	Chassis Mount DIN Rail
Siemens 3RH24311BB40	13 ms	4 W	100 ms	690 VAC	Auxiliary Contacts	Screw Terminal	4PST-3NO/1NC (3 Form A 1 Form B)	24 VDC	19.2 VDC	-25 °C	60 °C	10 A	Chassis Mount DIN Rail

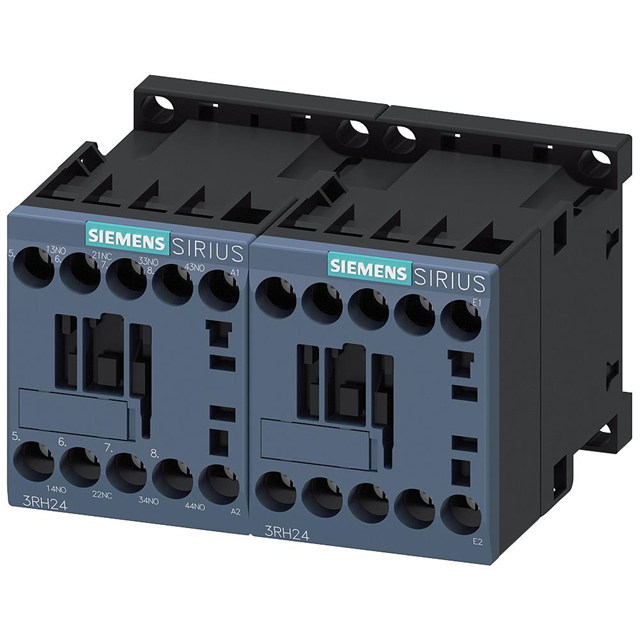

Siemens 3RH24311AB00	15 ms	37 VA	33 ms	690 VAC	Auxiliary Contacts	Screw Terminal	4PST-3NO/1NC (3 Form A 1 Form B)	24 VAC		-25 °C	60 °C	10 A	Chassis Mount DIN Rail
Siemens 3RH24311BG40	13 ms	4 W	100 ms	690 VAC	Auxiliary Contacts	Screw Terminal	4PST-3NO/1NC (3 Form A 1 Form B)	125 VDC	100 VDC	-25 °C	60 °C	10 A	Chassis Mount DIN Rail
Siemens 3RH24311AP00	15 ms	37 VA	33 ms	690 VAC	Auxiliary Contacts	Screw Terminal	4PST-3NO/1NC (3 Form A 1 Form B)	230 VAC	195.5 VAC	-25 °C	60 °C	10 A	Chassis Mount DIN Rail
Siemens 3RH24311AK60	15 ms	37 VA	33 ms	690 VAC	Auxiliary Contacts	Screw Terminal	4PST-3NO/1NC (3 Form A 1 Form B)	120 VAC	102 VAC	-25 °C	60 °C	10 A	Chassis Mount DIN Rail
Siemens 3RH24311AF00	15 ms	37 VA	33 ms	690 VAC	Auxiliary Contacts	Screw Terminal	4PST-3NO/1NC (3 Form A 1 Form B)	110 VAC/DC	93.5 VAC	-25 °C	60 °C	10 A	Chassis Mount DIN Rail

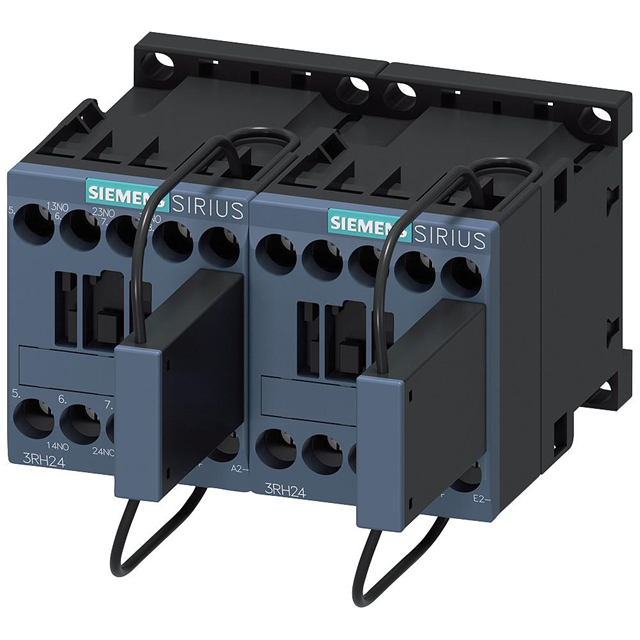

Siemens 3RH24311LW800LA0	20 ms	13 W	130 ms	690 VAC	Auxiliary Contacts	Screw Terminal	3PST-NO (3 Form A)	32 VDC	22.4 VDC	-40 C	70 °C	10 A	Chassis Mount DIN Rail
Siemens 3RH24311AP60	15 ms	37 VA	33 ms	690 VAC	Auxiliary Contacts	Screw Terminal	4PST-3NO/1NC (3 Form A 1 Form B)	240 VAC/DC	204 VAC	-25 °C	60 °C	10 A	Chassis Mount DIN Rail
