M4708 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

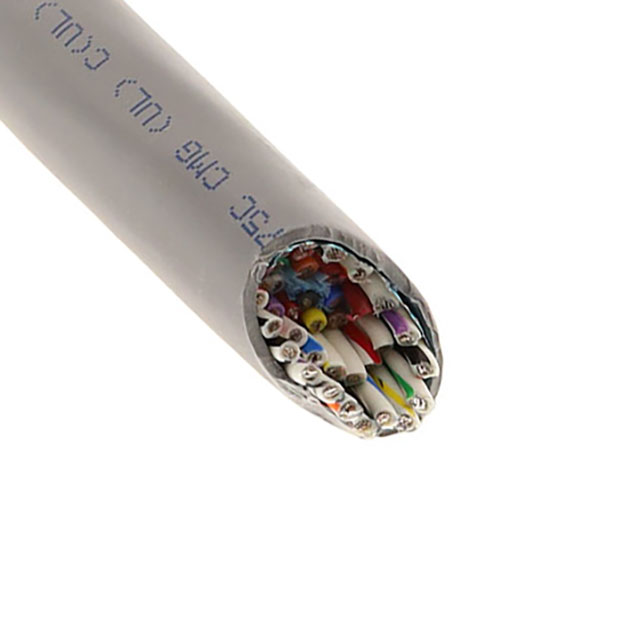

CABLE 40COND 18AWG SHLD
| Part | Shield Coverage | Shield Material | Conductor Insulation | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Ratings | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Number of Conductors | Jacket Color | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Tinned | 16 | 30 AWG | 300 VDC | Foil | 0.053 " | 1.346 mm | 304.8 m | 1000 ft | UL Style 2464 | Drain Wire Rip Cord | 17.53 mm | 0.69 in | 18 AWG | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 40 | Slate | Multi-Conductor |
ALPHA WIRE | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Tinned | 16 | 30 AWG | 300 VDC | Foil | 0.053 " | 1.346 mm | 152.4 m | 500 ft | UL Style 2464 | Drain Wire Rip Cord | 17.53 mm | 0.69 in | 18 AWG | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 40 | Slate | Multi-Conductor |
