TSH-115 Series

Headers & Wire Housings 2.00 mm Shrouded Terminal Strip

Manufacturer: Samtec Inc.

Catalog

Headers & Wire Housings 2.00 mm Shrouded Terminal Strip

Catalog

Headers & Wire Housings 2.00 mm Shrouded Terminal Strip

Part	Number of Positions Loaded	Mounting Type	Contact Finish - Post	Shrouding	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Number of Rows	Fastening Type	Connector Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Overall Contact Length	Overall Contact Length	Features	Contact Material	Material Flammability Rating	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post
Samtec Inc. TSH-130-01-T-D	All	Through Hole	Tin	Shrouded - 3 Wall	2.46 mm	0.097 in	5.33 mm	0.21 in	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	2	Push-Pull	Header	Black	3.2 mm	0.126 "	105 ░C	-55 °C	Solder	0.302 in	7.67 mm	End Shrouds	Phosphor Bronze	UL94 V-0	30	0.079 in	2 mm	Square	Male Pin
Samtec Inc. TSH-130-01-L-DH	All	Surface Mount Right Angle	Tin	Shrouded - 3 Wall					0.079 in	2 mm	Liquid Crystal Polymer (LCP)	2	Push-Pull	Header	Black	3.2 mm	0.126 "	125 °C	-55 °C	Solder			End Shrouds	Phosphor Bronze	UL94 V-0	30	0.079 in	2 mm	Square	Male Pin	10 çin	0.25 çm	Gold	0.157 in	4 mm
Samtec Inc. TSH-130-01-F-DV-A	All	Surface Mount	Tin	Shrouded - 3 Wall			5.33 mm	0.21 in	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	2	Push-Pull	Header	Black	3.2 mm	0.126 "	125 °C	-55 °C	Solder			Board Guide End Shrouds	Phosphor Bronze	UL94 V-0	30	0.079 in	2 mm	Square	Male Pin	3 µin	0.076 µm	Gold

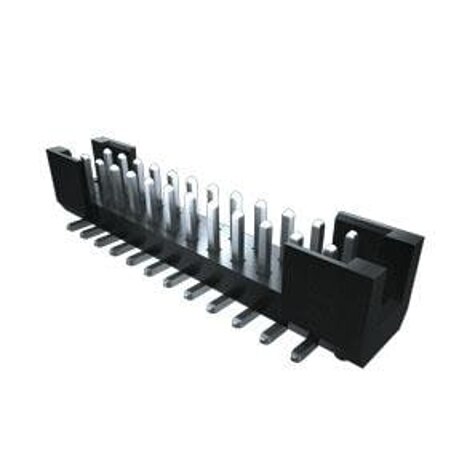

Samtec Inc. TSH-105-01-F-DH	All	Surface Mount Right Angle	Tin	Shrouded - 3 Wall					0.079 in	2 mm	Liquid Crystal Polymer (LCP)	2	Push-Pull	Header	Black	3.2 mm	0.126 "	125 °C	-55 °C	Solder			End Shrouds	Phosphor Bronze	UL94 V-0	10	0.079 in	2 mm	Square	Male Pin	3 µin	0.076 µm	Gold	0.157 in	4 mm
Samtec Inc. TSH-130-01-G-D	All	Through Hole	Gold	Shrouded - 3 Wall	2.46 mm	0.097 in	5.33 mm	0.21 in	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	2	Push-Pull	Header	Black	3.2 mm	0.126 "	125 °C	-55 °C	Solder	0.302 in	7.67 mm	End Shrouds	Phosphor Bronze	UL94 V-0	30	0.079 in	2 mm	Square	Male Pin	20 µin	0.51 µm	Gold			3 µin	0.076 µm
Samtec Inc. TSH-115-01-L-DH-SL-TR	All	Surface Mount Right Angle	Tin	Shrouded - 3 Wall					0.079 in	2 mm	Liquid Crystal Polymer (LCP)	2	Push-Pull	Header	Black	3.2 mm	0.126 "	125 °C	-55 °C	Solder			End Shrouds Solder Retention	Phosphor Bronze	UL94 V-0	30	0.079 in	2 mm	Square	Male Pin	10 çin	0.25 çm	Gold	0.157 in	4 mm
Samtec Inc. TSH-115-01-LM-RA	All	Through Hole Right Angle	Tin	Shrouded - 3 Wall			5.25 mm	0.207 in	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	2	Push-Pull	Header	Black	3.2 mm	0.126 "	125 °C	-55 °C	Solder			End Shrouds	Phosphor Bronze	UL94 V-0	30	0.079 in	2 mm	Square	Male Pin	10 çin	0.25 çm	Gold					0.096 in	2.43 mm
Samtec Inc. TSH-130-01-F-RA	All	Through Hole Right Angle	Tin	Shrouded - 3 Wall			5.25 mm	0.207 in	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	2	Push-Pull	Header	Black	3.2 mm	0.126 "	125 °C	-55 °C	Solder			End Shrouds	Phosphor Bronze	UL94 V-0	30	0.079 in	2 mm	Square	Male Pin	3 µin	0.076 µm	Gold					0.096 in	2.43 mm
Samtec Inc. TSH-130-01-T-DH-TR	All	Surface Mount Right Angle	Tin	Shrouded - 3 Wall					0.079 in	2 mm	Liquid Crystal Polymer (LCP)	2	Push-Pull	Header	Black	3.2 mm	0.126 "	105 ░C	-55 °C	Solder			End Shrouds	Phosphor Bronze	UL94 V-0	30	0.079 in	2 mm	Square	Male Pin				0.157 in	4 mm
Samtec Inc. TSH-130-01-T-DH	All	Surface Mount Right Angle	Tin	Shrouded - 3 Wall					0.079 in	2 mm	Liquid Crystal Polymer (LCP)	2	Push-Pull	Header	Black	3.2 mm	0.126 "	105 ░C	-55 °C	Solder			End Shrouds	Phosphor Bronze	UL94 V-0	30	0.079 in	2 mm	Square	Male Pin				0.157 in	4 mm
