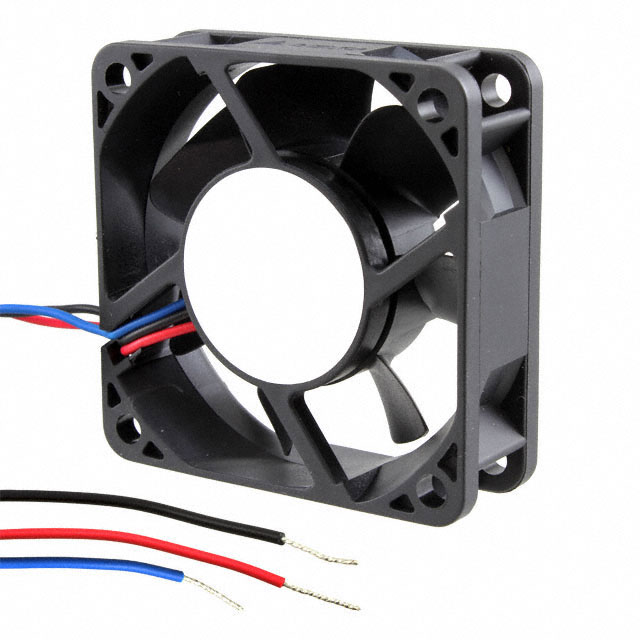

AFB0612 Series

Catalog

FAN AXIAL 60X20MM 12VDC WIRE

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Termination	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Air Flow	Air Flow	Fan Type	Static Pressure	Static Pressure	RPM	Width [y]	Noise	Features	Voltage - Rated	Approval Agency	Ingress Protection
Delta Electronics AFB0612EHD-AF00	0.31 A	70000 Hrs	Plastic	13.8 VDC	7 V	Plastic	3 Wire Leads	Ball	60 mm	60 mm	3.72 W	70 °C	-10 °C	0.124 lb	56.25 g	35.2 CFM	0.986 m³/min	Tubeaxial	120.6 Pa	0.484 in H2O	6600 RPM	20 mm	45 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	CE CSA UL VDE
Delta Electronics AFB0612VHD-AF00	190 mA	70000 Hrs	Plastic	13.8 VDC	7 V	Plastic	3 Wire Leads	Ball	60 mm	60 mm	2.28 W	70 °C	-10 °C	0.124 lb	56.25 g	29.1 CFM	0.815 m³/min	Tubeaxial	69.2 Pa	0.278 in H2O	5400 RPM	20 mm	41 dB	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	CE CSA UL VDE

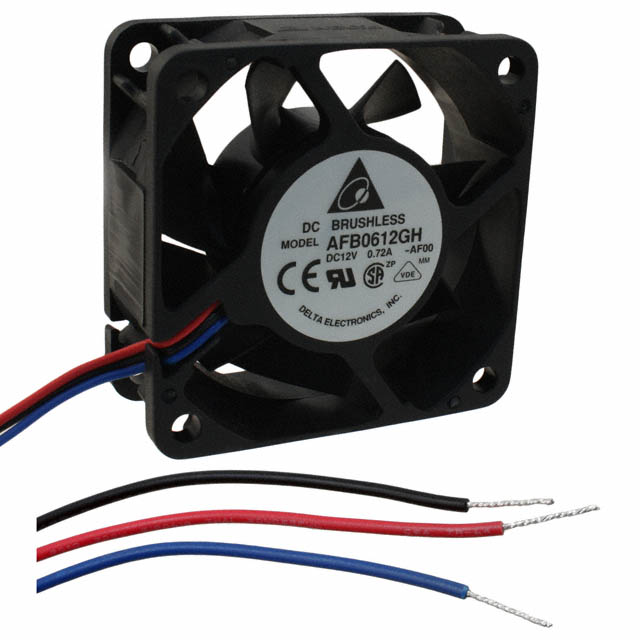

Delta Electronics AFB0612GH-AF00	0.55 A	70000 Hrs	Plastic	13.2 VDC	7 V	Plastic	3 Wire Leads	Ball	60 mm	60 mm	6.6 W	70 °C	-10 °C	0.176 lb	80 g	42 CFM	1.18 m³/min	Tubeaxial	159.4 Pa	0.64 in H2O	7500 RPM	25.4 mm	50.5 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	CE CSA UL VDE

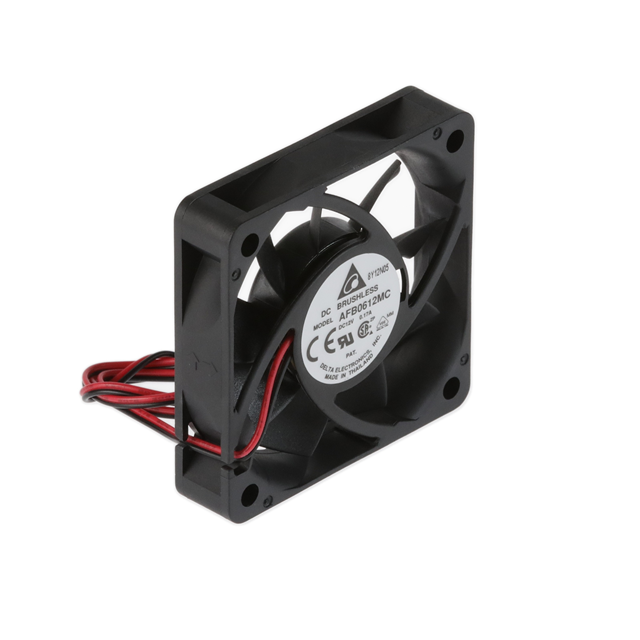

Delta Electronics AFB0612MC	110 mA	70000 Hrs	Plastic	13.8 VDC	7 V	Plastic	2 Wire Leads	Ball	60 mm	60 mm	1.32 W	70 °C	-10 °C	0.074 lb	33.56 g	18.2 CFM	0.51 m³/min	Tubeaxial	29.6 Pa	0.119 in H2O	3600 RPM	13 mm	28 dB		12 VDC	CE CSA UL VDE
Delta Electronics AFB0612H-EP	140 mA	70000 Hrs	Plastic	13.8 VDC	5 VDC	Plastic	2 Wire Leads	Ball	60 mm	60 mm	1.68 W	70 °C	-10 °C	0.176 lb	80 g	22.6 CFM	0.633 mł/min	Tubeaxial	52.6 Pa	0.211 in H2O	4250 RPM	25.4 mm	34 dB(A)	GR-487 (Salt Fog Protection) Locked Rotor Protection	12 VDC	CE CSA UL VDE	IP56 - Dust Protected Water Resistant

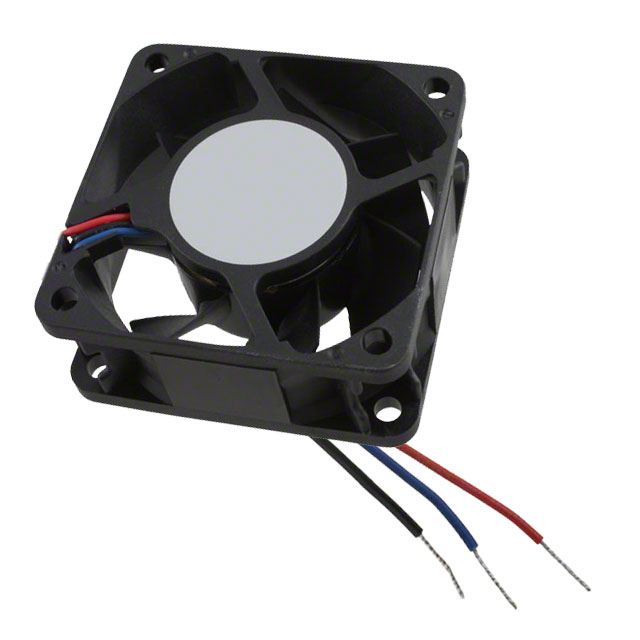

Delta Electronics AFB0612DH-AF00	0.84 A	70000 Hrs	Plastic	13.2 VDC	7 V	Plastic	3 Wire Leads	Ball	60 mm	60 mm	10.08 W	70 °C	-10 °C	0.176 lb	80 g	50.4 CFM	1.41 mł/min	Tubeaxial	230.7 Pa	0.926 in H2O	9000 RPM	25.4 mm	55 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	CE CSA UL VDE
Delta Electronics AFB0612HHD-R00	150 mA	70000 Hrs	Plastic	13.8 VDC	7 V	Plastic	3 Wire Leads	Ball	60 mm	60 mm	1.8 W	70 °C	-10 °C	0.137 lb	62.14 g	18.4 CFM	0.515 mł/min	Tubeaxial	57 Pa	0.229 in H2O	4400 RPM	20 mm	31 dB(A)	Locked Rotor Sensor	12 VDC	CE CSA UL VDE

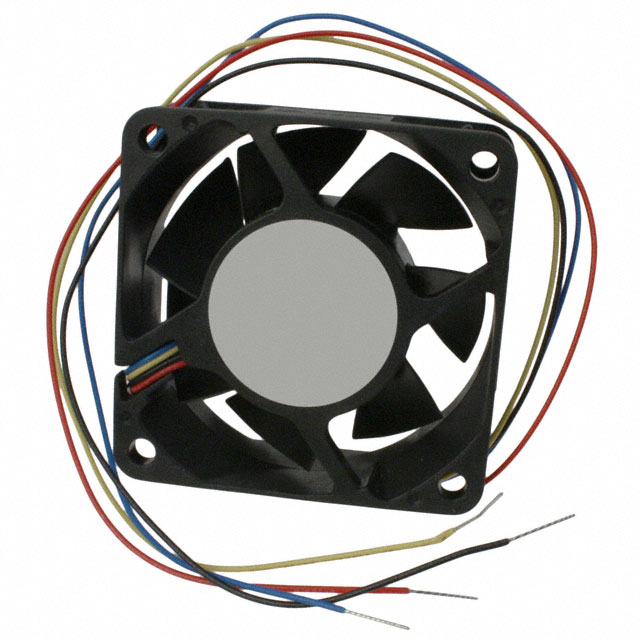

Delta Electronics AFB0612DH-TP11	0.84 A	70000 Hrs	Plastic	13.2 VDC	10.8 VDC	Plastic	4 Wire Leads	Ball	60 mm	60 mm	10.08 W	70 °C	-10 °C	0.176 lb	80 g	50.4 CFM	1.41 mł/min	Tubeaxial	230.7 Pa	0.926 in H2O	9000 RPM	25.4 mm	55 dB(A)	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12 VDC	CE CSA UL VDE

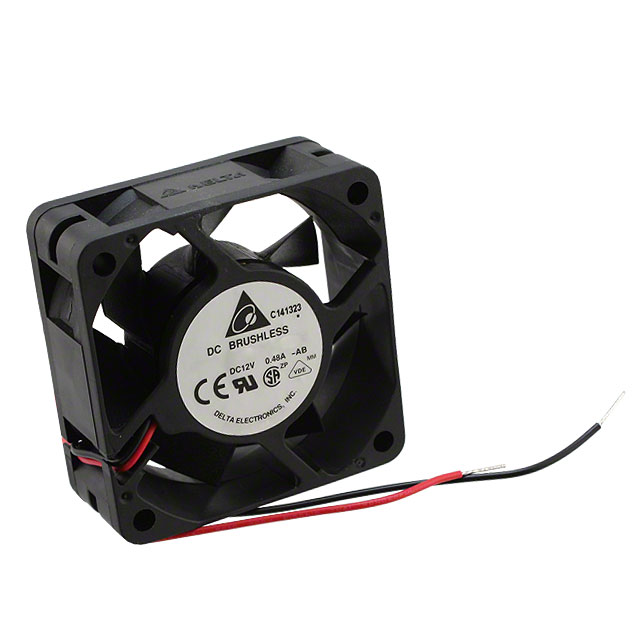

Delta Electronics AFB0612EH-AB	0.38 A	70000 Hrs	Plastic	13.8 VDC	4 VDC	Plastic	2 Wire Leads	Ball	60 mm	60 mm	4.56 W	70 °C	-10 °C	0.176 lb	80 g	38.4 CFM	1.08 m³/min	Tubeaxial	135.5 Pa	0.544 in H2O	6800 RPM	25.4 mm	46.5 dB		12 VDC	CE CSA UL VDE

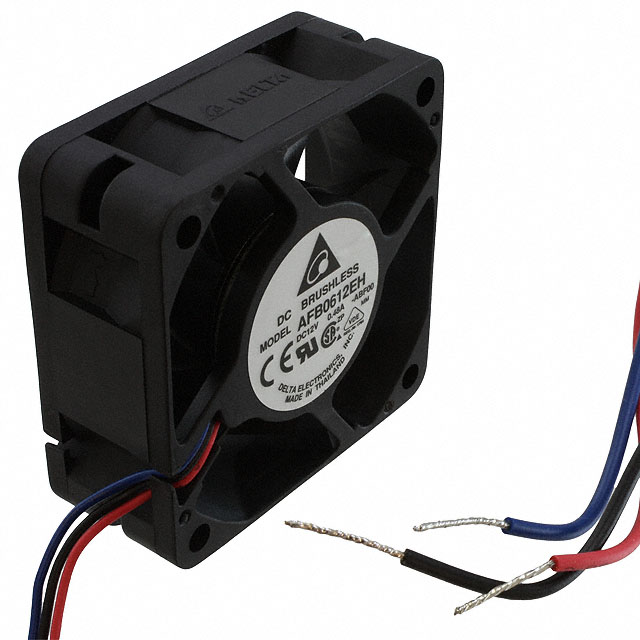

Delta Electronics AFB0612EH-ABF00	0.38 A	70000 Hrs	Plastic	13.8 VDC	4 VDC	Plastic	3 Wire Leads	Ball	60 mm	60 mm	4.56 W	70 °C	-10 °C	0.176 lb	80 g	38.4 CFM	1.08 m³/min	Tubeaxial	135.5 Pa	0.544 in H2O	6800 RPM	25.4 mm	46.5 dB	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	CE CSA UL VDE
