RT2808 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K
IC REG BUCK ADJUSTABLE 3A 8SOP
| Part | Output Configuration | Current - Output | Voltage - Output (Max) [Max] | Synchronous Rectifier | Mounting Type | Topology | Package / Case | Package / Case [y] | Package / Case [x] | Number of Outputs | Frequency - Switching | Voltage - Input (Min) [Min] | Voltage - Output (Min/Fixed) | Output Type | Function | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Supplier Device Package | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Contents | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Utilized IC / Part | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | Positive | 3 A | 26 V | Surface Mount | Buck | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | 1 | 500 kHz | 5.5 V | 1.222 V | Adjustable | Step-Down | 85 C | -40 ¯C | 36 V | 8-SOP-EP | ||||||||||||

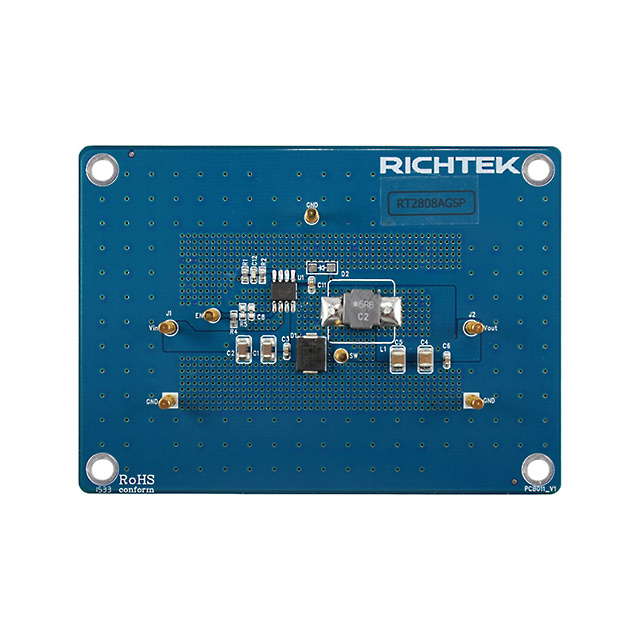

 Richtek USA Inc. | 3 A | 500 kHz | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | Buck | 5.5 V | 36 V | 2.5 V | RT2808A | DC/DC Step Down |
