TPS62442-Q1 Series

Automotive 2.75-V to 6-V, dual 2-A or 3-A and 1-A output, adjustable frequency, step-down converter

Catalog

Automotive 2.75-V to 6-V, dual 2-A or 3-A and 1-A output, adjustable frequency, step-down converter

Part	Function	Voltage - Input (Max) [Max]	Output Configuration	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Output Type	Voltage - Output (Max) [Max]	Number of Outputs	Supplier Device Package	Synchronous Rectifier	Frequency - Switching	Mounting Type	Topology	Voltage - Output (Min/Fixed)	Current - Output	Supplier Device Package [y]	Supplier Device Package [x]	Package / Case	Grade	Qualification	Frequency - Switching [Max]	Frequency - Switching [Min]
Texas Instruments TPS62442RQRR	Step-Down	6 V	Positive	3A/2A 3A/3A	150 °C	-40 °C	2.75 V	Adjustable	5.5 V	2	21-VQFN-HR (3x5)		2.25 MHz	Surface Mount	Buck	0.6 V

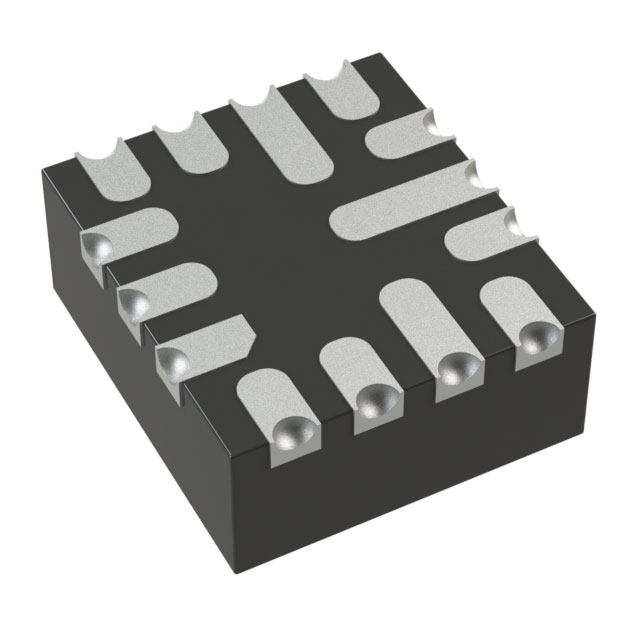

Texas Instruments TPS62442QWRQRRQ1	Step-Down	6 V	Positive		125 °C	-40 °C	2.75 V	Adjustable	5.5 V	2	14-VQFN-HR			Surface Mount Wettable Flank	Buck	0.6 V	1 A 2 A 3 A	2.7	2.3	14-VFQFN	Automotive	AEC-Q100	4 MHz	1.8 MHz

Catalog

Automotive 2.75-V to 6-V, dual 2-A or 3-A and 1-A output, adjustable frequency, step-down converter

Key Features

• Functional Safety-CapableDocumentation available to aid functional safety system design0.6-V to 5.5-V dual-channel, output voltage1-A/1-A, 2-A/2-A, 3-A/1-A output currents2.75-V to 6-V input voltage range1% feedback voltage accuracy (PWM operation)T J = –40°C to +150°CTwo precise ENABLE inputs allow:User-defined undervoltage lockoutExact sequencingTwo power-good outputs with window comparator1.8-MHz to 4-MHz adjustable switching frequencyOptional synchronization to external clockOptional spread spectrum clockingForced PWM or PWM/PFM operationSelectable compensation network up to 200 µF22-µA quiescent current180° phase shifted operation100% duty cycle modeActive output dischargeThermal shutdown protection2.3-mm × 2.7-mm QFN packageFunctional Safety-CapableDocumentation available to aid functional safety system design0.6-V to 5.5-V dual-channel, output voltage1-A/1-A, 2-A/2-A, 3-A/1-A output currents2.75-V to 6-V input voltage range1% feedback voltage accuracy (PWM operation)T J = –40°C to +150°CTwo precise ENABLE inputs allow:User-defined undervoltage lockoutExact sequencingTwo power-good outputs with window comparator1.8-MHz to 4-MHz adjustable switching frequencyOptional synchronization to external clockOptional spread spectrum clockingForced PWM or PWM/PFM operationSelectable compensation network up to 200 µF22-µA quiescent current180° phase shifted operation100% duty cycle modeActive output dischargeThermal shutdown protection2.3-mm × 2.7-mm QFN package

Description

The TPS6244x-Q1 is a family of pin-to-pin dual 1-A, dual 2-A or 3-A, and 1-A high-efficiency and easy-to-use synchronous step-down DC/DC converters. They are based on a peak current mode control topology. The devices are designed for automotive applications such as infotainment and advanced driver assistance systems. Low resistive switches allow up to 3-A continuous output current and a total maximum output current up to 4 A at high ambient temperature. The switching frequency is externally adjustable from 1.8 MHz to 4 MHz and can also be synchronized to an external clock from 2 MHz to 4 MHz. In PWM and PFM mode, the TPS6244x-Q1 automatically enters power save mode at light loads to maintain high efficiency across the whole load range. The TPS6244x-Q1 provides a 1% output voltage accuracy in PWM mode, which helps design a power supply with high output voltage accuracy. The TPS6244x-Q1 is available as an adjustable voltage version, packaged in a VQFN package. The TPS6244x-Q1 is a family of pin-to-pin dual 1-A, dual 2-A or 3-A, and 1-A high-efficiency and easy-to-use synchronous step-down DC/DC converters. They are based on a peak current mode control topology. The devices are designed for automotive applications such as infotainment and advanced driver assistance systems. Low resistive switches allow up to 3-A continuous output current and a total maximum output current up to 4 A at high ambient temperature. The switching frequency is externally adjustable from 1.8 MHz to 4 MHz and can also be synchronized to an external clock from 2 MHz to 4 MHz. In PWM and PFM mode, the TPS6244x-Q1 automatically enters power save mode at light loads to maintain high efficiency across the whole load range. The TPS6244x-Q1 provides a 1% output voltage accuracy in PWM mode, which helps design a power supply with high output voltage accuracy. The TPS6244x-Q1 is available as an adjustable voltage version, packaged in a VQFN package.
