Nano-Change (M8) Field Attachable Connector, 4 Poles, Straight, Female, Unshielded, IDC Termination, Cable Diameter 2.50-5.20mm
Nano-Change (M8) Field Attachable Connector, 4 Poles, Straight, Female, Unshielded, IDC Termination, Cable Diameter 2.50-5.20mm
Nano-Change (M8) Field Attachable Connector, 4 Poles, Straight, Female, Unshielded, IDC Termination, Cable Diameter 2.50-5.20mm
| Part | Number of Positions | Contact Finish - Mating | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Mounting Type | Contact Material | Shielding | Features | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Insert Material | Shell Material | Connector Type | Current Rating (Amps) | Shell Size - Insert | Orientation | Voltage Rating | Ingress Protection | Applications | Shell Finish | Color | Termination | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | ||||||||||||||||||||||||||||||

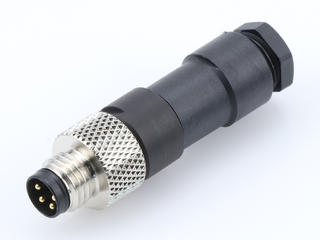

 Molex | 4 | Gold | Metal | 80 C | 0 °C | Nylon Polyamide (PA) | Free Hanging (In-Line) | Copper Alloy | Unshielded | Backshell | 5 mm | 3.5 mm | 0.197 in | 0.138 in | Nylon Polyamide (PA) | Brass | Male Pins Receptacle | 4 A | M8-4 | Keyed | 60 VAC 75 VDC | IP67 - Dust Tight Waterproof | Industrial | Nickel | Black Silver | |||||

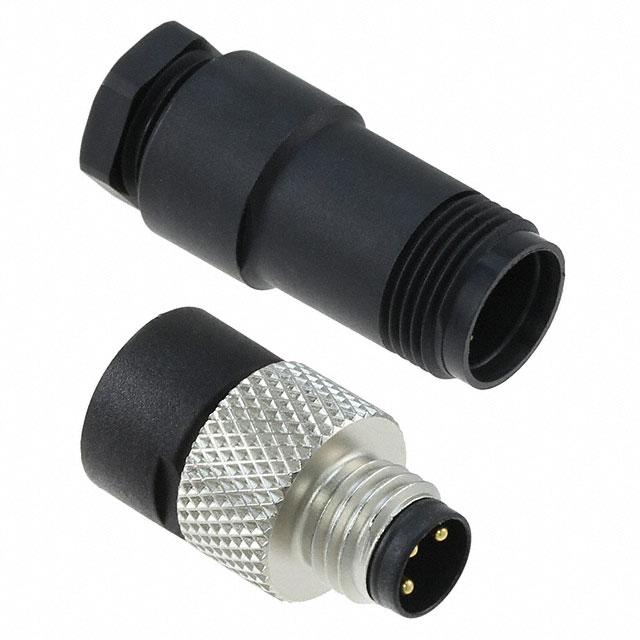

 Molex | Gold | Metal | 80 C | 0 °C | Nylon Polyamide (PA) | Free Hanging (In-Line) | Copper Alloy | Backshell | 5 mm | 3.5 mm | 0.197 in | 0.138 in | Nylon Polyamide (PA) | Brass | Male Pins Receptacle | 4 A | M8-3 | 60 VAC 75 VDC | IP67 - Dust Tight Waterproof | Industrial | Nickel | Black Silver | Solder | |||||||

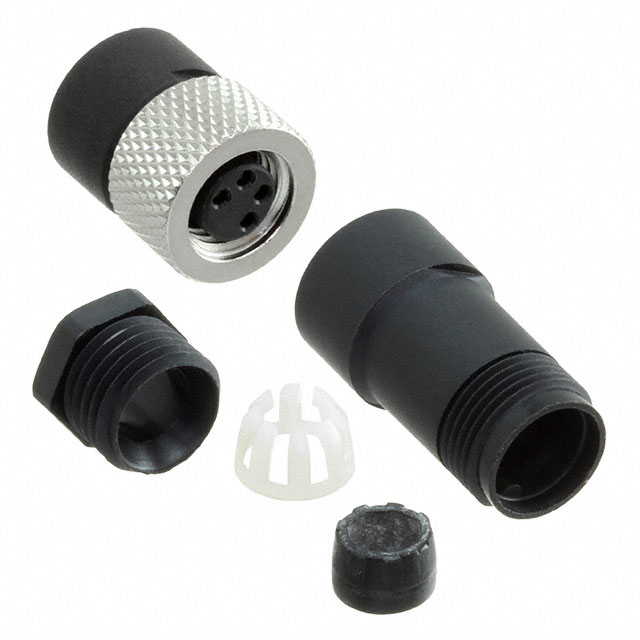

 Molex | 4 | Gold | Metal | 80 C | 0 °C | Nylon Polyamide (PA) | Free Hanging (In-Line) | Copper Alloy | Backshell Coupling Nut | Brass | Female Sockets Plug | 4 A | M8-4 | 60 VAC 75 VDC | IP67 - Dust Tight Waterproof | Industrial | Nickel | Black Silver | ||||||||||||
 Molex | Gold | Metal | 80 C | 0 °C | Nylon Polyamide (PA) | Free Hanging (In-Line) Right Angle | Copper Alloy | Unshielded | Backshell Coupling Nut | 5 mm | 3.5 mm | 0.197 in | 0.138 in | Nylon Polyamide (PA) | Brass | Female Sockets Plug | 4 A | M8-3 | Keyed | 60 VAC 75 VDC | IP67 - Dust Tight Waterproof | Industrial | Nickel | Black Silver | ||||||

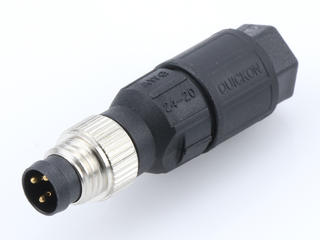

 Molex | Gold | Metal | 80 C | -25 °C | Nylon Polyamide (PA) | Free Hanging (In-Line) | Copper Tin | Unshielded | Backshell | Zinc Die Cast | Male Pins Receptacle | 3 A | M8-3 | 60 VDC | IP65 IP67 | Industrial | Nickel | Black Silver | IDC | 2.5 mm | 0.205 in | 5.2 mm | 0.098 in |
