71212 Series

Catalog

PELTIER CP085,127,06,L,RT,W4.5

Part	Current - Max [Max]	Number of Stages	Operating Temperature	Features	Qmax @ Th	Delta Tmax @ Th	Resistance	Height [z]	Voltage - Max [Max]	Size / Dimension [x]	Size / Dimension [y]

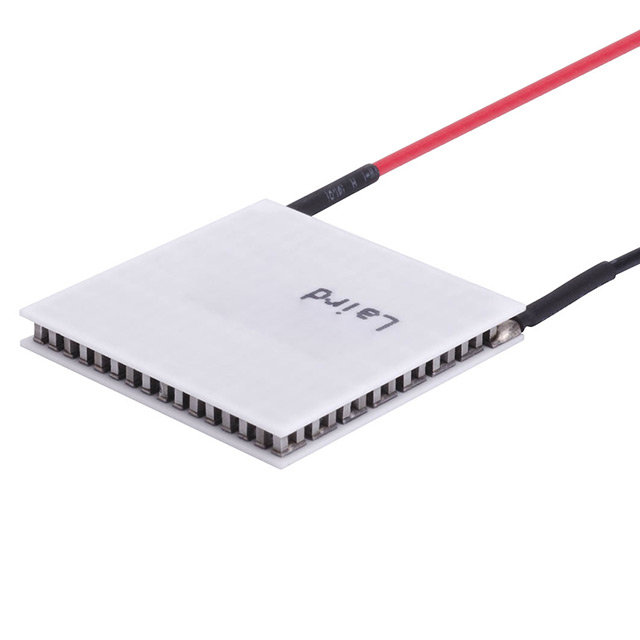

Laird Thermal Systems, Inc. 71212-503	2.3 A	1	80 °C	Lead Wires Sealed - Silicone RTV	20 W	68 °C	5.76 Ohms	3.58 mm	14.5 V	29.72 mm	29.72 mm

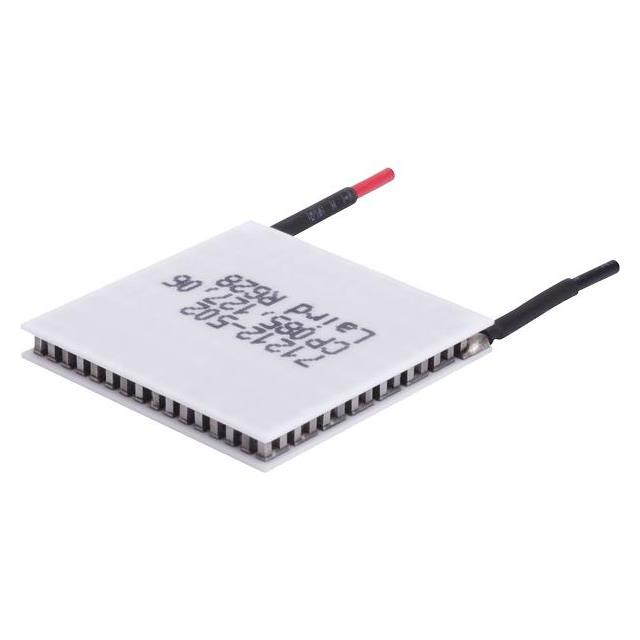

Laird Thermal Systems, Inc. 71212-502	2.3 A	1	80 °C	Lead Wires Non-Sealed	20 W	68 °C	5.76 Ohms	3.58 mm	14.5 V	29.72 mm	29.72 mm
