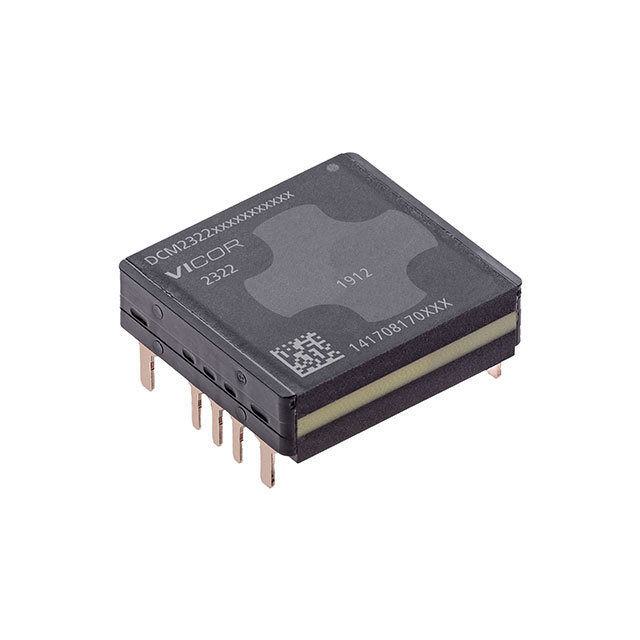

DCM2322 Series
Manufacturer: Vicor Corporation
Beta
⌘K
DC DC CONVERTER 28V 120W
| Part | Efficiency | Voltage - Input (Min) [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Package / Case | Features | Voltage - Output 1 | Applications | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Isolation | Power (Watts) | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vicor Corporation | 93 % | 43 V | 24.8 mm | 0.98 " | 7.2 mm | 0.9 in | 0.28 " | 22.8 mm | 1 | 9-DIP Module | Adjustable Output | 28 V | ITE (Commercial) | 154 V | Through Hole | 3000 V | 120 W | CE cTUVus cURus | -55 C | 125 °C | 4.29 A | Isolated Module |
Vicor Corporation | 93 % | 14 V | 24.8 mm | 0.98 " | 7.2 mm | 0.9 in | 0.28 " | 22.8 mm | 1 | 9-DIP Module | Adjustable Output | 28 V | ITE (Commercial) | 72 V | Through Hole | 3000 V | 100 W | CE cTUVus cURus | -40 C | 125 °C | 3.57 A | Isolated Module |
 Vicor Corporation | 93 % | 14 V | 24.8 mm | 0.98 " | 7.2 mm | 0.9 in | 0.28 " | 22.8 mm | 1 | 9-DIP Module | Adjustable Output | 15 V | ITE (Commercial) | 72 V | Through Hole | 3000 V | 100 W | CE cTUVus cURus | -55 C | 125 °C | 6.67 A | Isolated Module |
Vicor Corporation | 86.2 % | 43 V | 24.8 mm | 0.98 " | 7.2 mm | 0.9 in | 0.28 " | 22.8 mm | 1 | 9-DIP Module | Adjustable Output | 5 V | ITE (Commercial) | 154 V | Through Hole | 3000 V | 60 W | CE | -55 C | 125 °C | 12 A | Isolated Module |
 Vicor Corporation | 93 % | 43 V | 24.8 mm | 0.98 " | 7.2 mm | 0.9 in | 0.28 " | 22.8 mm | 1 | 9-DIP Module | Adjustable Output | 3.3 V | ITE (Commercial) | 154 V | Through Hole | 3000 V | 40 W | CE cTUVus cURus | -55 C | 125 °C | 12.12 A | Isolated Module |
Vicor Corporation | 93 % | 9 V | 24.8 mm | 0.98 " | 7.2 mm | 0.9 in | 0.28 " | 22.8 mm | 1 | 9-DIP Module | Adjustable Output | 48 V | ITE (Commercial) | 50 V | Through Hole | 3000 V | 60 W | CE cTUVus cURus | -40 C | 125 °C | 1.25 A | Isolated Module |
Vicor Corporation | 93 % | 14 V | 24.8 mm | 0.98 " | 7.2 mm | 0.9 in | 0.28 " | 22.8 mm | 1 | 9-DIP Module | Adjustable Output | 12 V | ITE (Commercial) | 72 V | Through Hole | 3000 V | 100 W | CE cTUVus cURus | -55 C | 125 °C | 8.33 A | Isolated Module |
