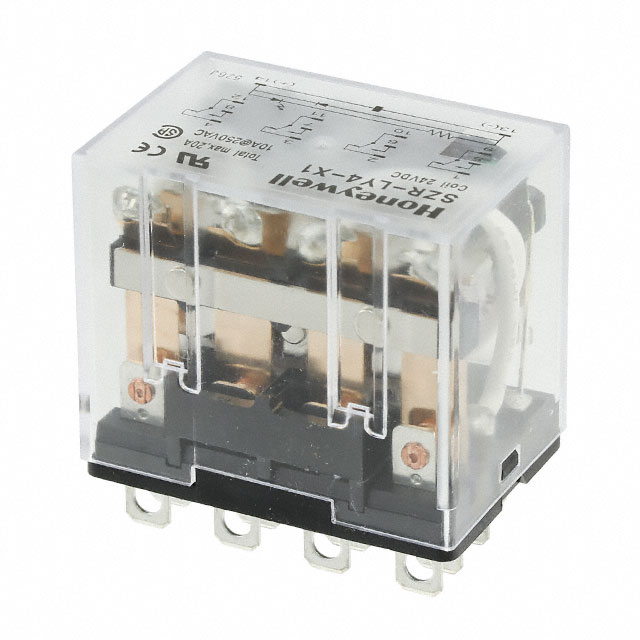

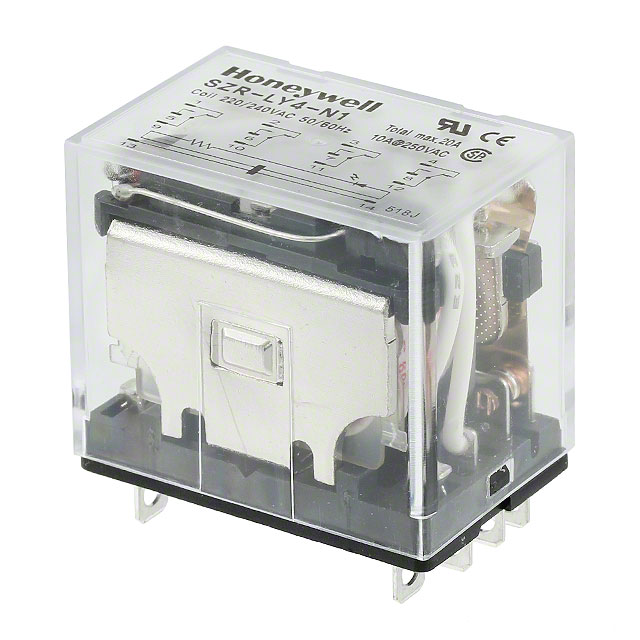

SZR-LY4 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
RELAY CONTROLS
| Part | Coil Resistance | Must Operate Voltage | Coil Voltage | Features | Contact Rating (Current) | Contact Material | Load - Max Switching | Termination Style | Termination Style | Termination Style | Coil Current | Contact Form | Switching Voltage | Operate Time | Release Time | Relay Type | Approval Agency | Must Release Voltage | Coil Type | Mounting Type | Coil Voltage [Max] | Coil Voltage [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 4.84 kOhms | 88 VAC/DC | 110 VAC/DC | Lighted Indicator | 10 A | Silver Cadmium Oxide (AgCdO) | 1250 W 2500 VA | Plug In Quick Connect | 0.197 in | 5 mm | 22.7 mA | 4PDT (4 Form C) | 125 VDC 250 VAC | 25 ms | 25 ms | General Purpose | CE CSA UR | 33 VAC | Non Latching | Socketable | ||
Honeywell Sensing and Productivity Solutions | 100 Ohms | 9.6 VDC | 12 VDC | Lighted Indicator | 10 A | Silver Cadmium Oxide (AgCdO) | 1250 W 2500 VA | Plug In | 124 mA | 4PDT (4 Form C) | 125 VDC 250 VAC | 25 ms | 25 ms | General Purpose | CE CSA UR | 1.2 VDC | Non Latching | Socketable | ||||
 Honeywell Sensing and Productivity Solutions | 350 Ohms | 19.2 VDC | 24 VDC | Lighted Indicator | 10 A | Silver Cadmium Oxide (AgCdO) | 1250 W 2500 VA | Plug In | 73 mA | 4PDT (4 Form C) | 125 VDC 250 VAC | 25 ms | 25 ms | General Purpose | CE CSA UR | 2.4 VDC | Non Latching | Socketable | ||||
Honeywell Sensing and Productivity Solutions | 350 Ohms | 19.2 VDC | 24 VDC | Diode | 10 A | Silver Cadmium Oxide (AgCdO) | 1250 W 2500 VA | Plug In | 69 mA | 4PDT (4 Form C) | 125 VDC 250 VAC | 25 ms | 25 ms | General Purpose | CE CSA UR | 2.4 VDC | Non Latching | Socketable | ||||
Honeywell Sensing and Productivity Solutions | 6.667 kOhms | 80 VDC | 100 VDC | Lighted Indicator | 10 A | Silver Cadmium Oxide (AgCdO) | 1250 W 2500 VA | Plug In Quick Connect | 0.197 in | 5 mm | 0.015 A | 4PDT (4 Form C) | 125 VDC 250 VAC | 25 ms | 25 ms | General Purpose | CE CSA UR | 10 VDC | Non Latching | Socketable | ||
 Honeywell Sensing and Productivity Solutions | 350 Ohms | 19.2 VDC | 24 VDC | Diode Lighted Indicator | 10 A | Silver Cadmium Oxide (AgCdO) | 1250 W 2500 VA | Plug In | 73 mA | 4PDT (4 Form C) | 125 VDC 250 VAC | 25 ms | 25 ms | General Purpose | CE CSA UR | 2.4 VDC | Non Latching | Socketable | ||||
Honeywell Sensing and Productivity Solutions | 6.7 kOhms | 176 VAC | 220 VAC/DC | Lighted Indicator | 10 A | Silver Cadmium Oxide (AgCdO) | 1250 W 2500 VA | Plug In | 13.8 mA | 4PDT (4 Form C) | 125 VDC 250 VAC | 25 ms | 25 ms | General Purpose | CE CSA UR | 66 VAC | Non Latching | Socketable | ||||
Honeywell Sensing and Productivity Solutions | 350 Ohms | 19.2 VDC | 24 VDC | 10 A | Silver Cadmium Oxide (AgCdO) | 1250 W 2500 VA | PC Pin | 69 mA | 4PDT (4 Form C) | 125 VDC 250 VAC | 25 ms | 25 ms | General Purpose | CE CSA UR | 2.4 VDC | Non Latching | Through Hole | |||||
Honeywell Sensing and Productivity Solutions | Lighted Indicator | 10 A | Silver Cadmium Oxide (AgCdO) | 1250 W 2500 VA | Plug In Quick Connect | 0.197 in | 5 mm | 4PDT (4 Form C) | 125 VDC 250 VAC | 25 ms | 25 ms | General Purpose | CE CSA UR | Non Latching | Socketable | 240 VAC | 220 VAC |
