JF15RP3F Series

Catalog

ILLUMINATED ULTRA-THIN PROCESS SEALED TACTILE

Part	Switch Travel	Actuator Material	Mechanical Life	Features	Mounting Type	Actuator Height off PCB, Vertical [z]	Illumination Type, Color	Outline [x]	Outline [y]	Illumination	Circuit	Termination Style	Actuator Type	Operating Force	Contact Rating @ Voltage	Illumination Voltage (Nominal)	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Orientation

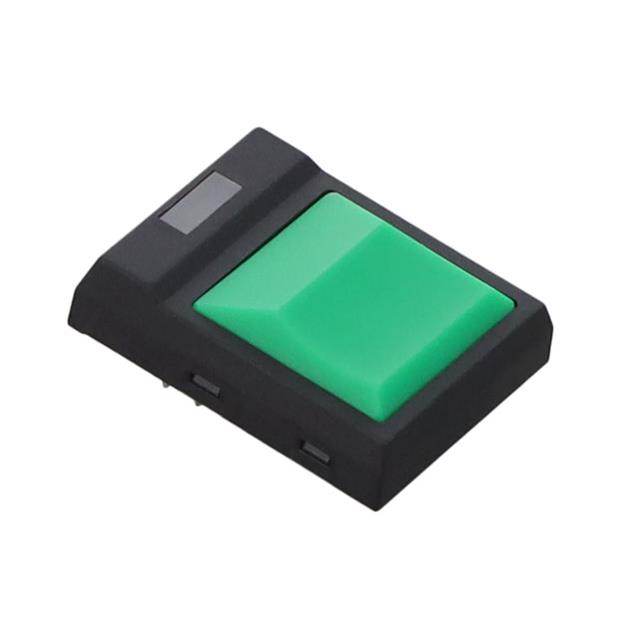

NKK Switches JF15RP3FC	0.8 mm	Polyamide (PA) Nylon	500000 Cycles	Process Sealed	Through Hole	6.78 mm	LED Red	22.8 mm	17.7 mm	Illuminated	SPST-NO	PC Pin	Square Button	0.2 kgf	0.05 A 24 VDC	2 VDC	-25 °C	70 °C	Off-Mom	Top Actuated
NKK Switches JF15RP3FE	0.8 mm	Polyamide (PA) Nylon	500000 Cycles	Process Sealed	Through Hole	6.78 mm	LED Yellow	22.8 mm	17.7 mm	Illuminated	SPST-NO	PC Pin	Square Button	0.2 kgf	0.05 A 24 VDC	1.9 VDC	-25 °C	70 °C	Off-Mom	Top Actuated
