B3AL Series

Tactile Switches 2.45N OF Long Stroke Green Button

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

Tactile Switches 2.45N OF Long Stroke Green Button

Catalog

Tactile Switches 2.45N OF Long Stroke Green Button

Part	Mechanical Life	Switch Travel	Mounting Type	Actuator Orientation	Termination Style	Actuator Type	Contact Rating @ Voltage	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Actuator Height off PCB, Vertical [z]	Outline [x]	Outline [y]	Operating Force	Circuit

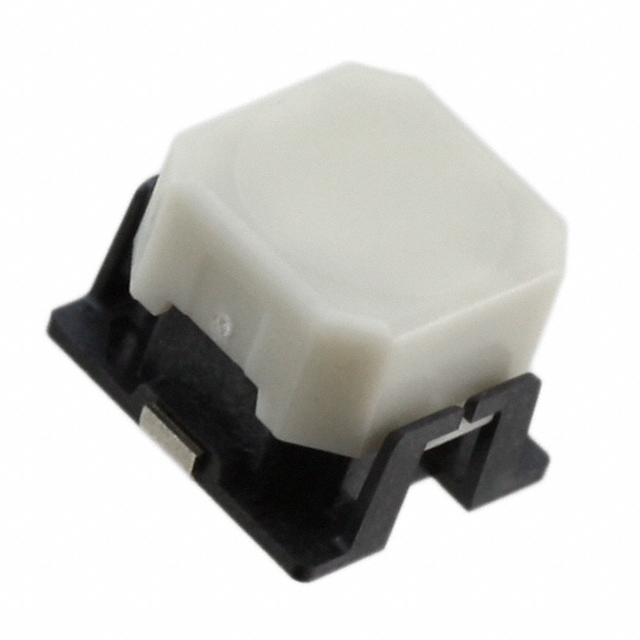

Omron Electronics Inc-EMC Div B3AL-1003P	1000000 Cycles	1.3 mm	Surface Mount	Top Actuated	SMD (SMT) Tab	Square Button	0.05 A 16 VDC	Off-Mom	90 °C	-40 C	Non-Illuminated	5 mm	6.9 mm	6 mm	357 gf	SPST-NO

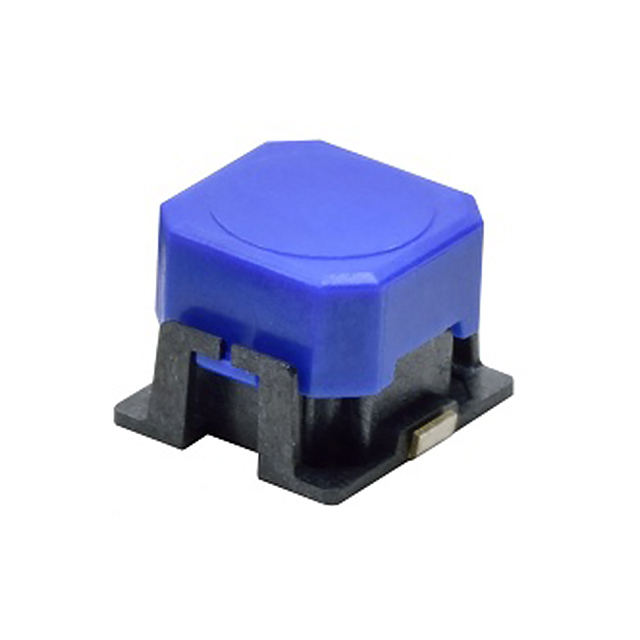

Omron Electronics Inc-EMC Div B3AL-1004P	500000 Cycles	1.3 mm	Surface Mount	Top Actuated	SMD (SMT) Tab	Square Button	0.05 A 16 VDC	Off-Mom	90 °C	-40 C	Non-Illuminated	5 mm	6.9 mm	6 mm	510 gf	SPST-NO

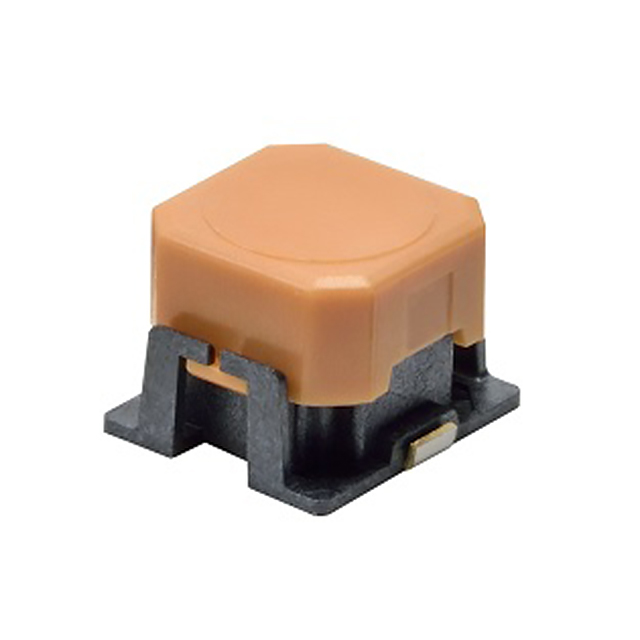

Omron Electronics Inc-EMC Div B3AL-1006P	1000000 Cycles	1.3 mm	Surface Mount	Top Actuated	SMD (SMT) Tab	Square Button	0.05 A 16 VDC	Off-Mom	90 °C	-40 C	Non-Illuminated	5 mm	6.9 mm	6 mm	408 gf	SPST-NO

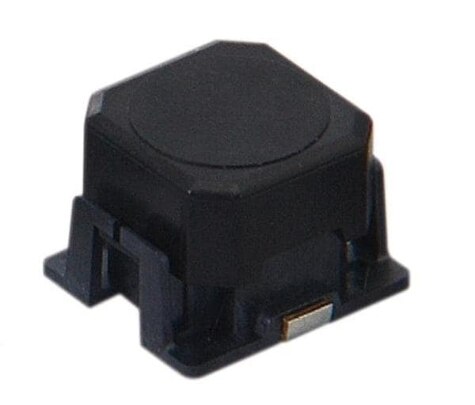

Omron Electronics Inc-EMC Div B3AL-1001P			Surface Mount	Top Actuated	SMD (SMT) Tab	Square Button	0.05 A 16 VDC	Off-Mom	90 °C	-40 C	Non-Illuminated	5 mm	6.9 mm	6 mm	0.25 kgf	SPST-NO

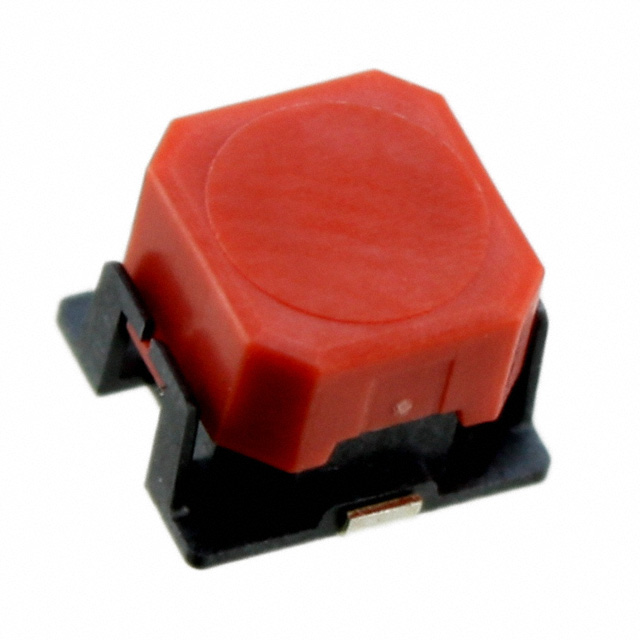

Omron Electronics Inc-EMC Div B3AL-1000P	1000000 Cycles	1.3 mm	Surface Mount	Top Actuated	SMD (SMT) Tab	Square Button	0.05 A 16 VDC	Off-Mom	90 °C	-40 C	Non-Illuminated	5 mm	6.9 mm	6 mm	0.2 kgf	SPST-NO
Omron Electronics Inc-EMC Div B3AL-1005P	1000000 Cycles	1.3 mm	Surface Mount	Top Actuated	SMD (SMT) Tab	Square Button	0.05 A 16 VDC	Off-Mom	90 °C	-40 C	Non-Illuminated	5 mm	6.9 mm	6 mm	459 gf	SPST-NO
