DCCM9 Series

Manufacturer: Cinch Connectivity Solutions

Catalog

CONN MICRO-D RCPT 9POS R/A SLDR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Dielectric Material	Number of Positions	Features	Backset Spacing	Backset Spacing	Flange Feature	Termination	Shell Material, Finish	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Material Flammability Rating	Current Rating (Amps)	Contact Finish	Mounting Type	Connector Style	Contact Type	Number of Rows [custom]	1st Connector	Color	2nd Connector	Type	Length	Length

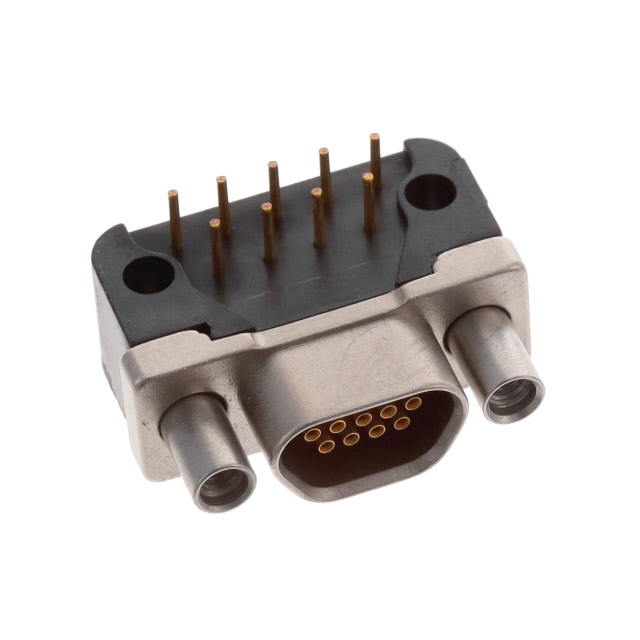

Cinch Connectivity Solutions DCCM9SCBRPN	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	9	Shielded	0.23 in	5.84 mm	Female Screwlock Mating Side	Solder	Aluminum Alloy Electroless Nickel Plated	0.043 in	0.05 in	50 µin	1.27 µm	Receptacle Female Sockets	UL94 V-0	3 A	Gold	Right Angle Through Hole	D-Type Micro-D	Signal	2
Cinch Connectivity Solutions DCCM9PSB	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	9	Shielded					Aluminum Alloy Yellow Chromate Plated Cadmium	0.043 in	0.05 in	50 µin	1.27 µm	Plug Male Pins	UL94 V-0	3 A	Gold	Panel Mount	D-Type Micro-D	Signal	2

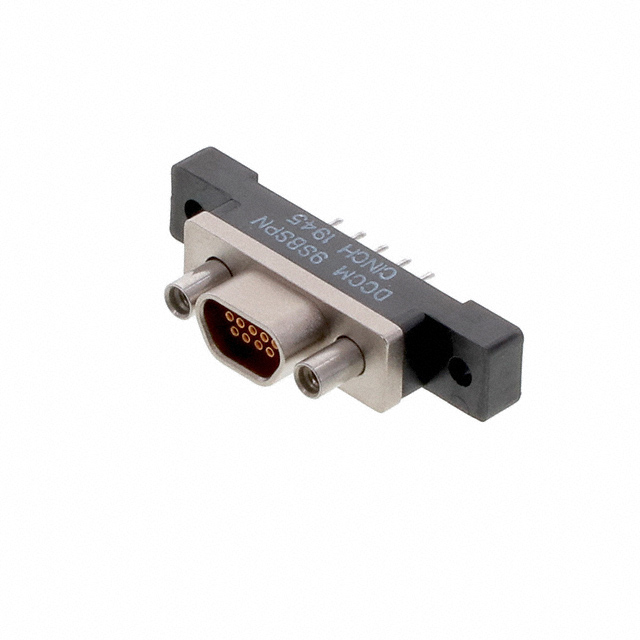

Cinch Connectivity Solutions DCCM9SBSPN	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	9	Shielded			Female Screwlock Mating Side	Solder	Aluminum Alloy Electroless Nickel Plated	0.043 in	0.05 in	50 µin	1.27 µm	Receptacle Female Sockets	UL94 V-0	3 A	Gold	Through Hole	D-Type Micro-D	Signal	2
Cinch Connectivity Solutions DCCM9PCBRP	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	9	Shielded	0.23 in	5.84 mm	Female Screwlock Mating Side	Solder	Aluminum Alloy Yellow Chromate Plated Cadmium	0.043 in	0.05 in	50 µin	1.27 µm	Plug Male Pins	UL94 V-0	3 A	Gold	Right Angle Through Hole	D-Type Micro-D	Signal	2
Cinch Connectivity Solutions DCCM9PBSP	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	9	Shielded			Female Screwlock Mating Side	Solder	Aluminum Alloy Yellow Chromate Plated Cadmium	0.043 in	0.05 in	50 µin	1.27 µm	Plug Male Pins	UL94 V-0	3 A	Gold	Through Hole	D-Type Micro-D	Signal	2

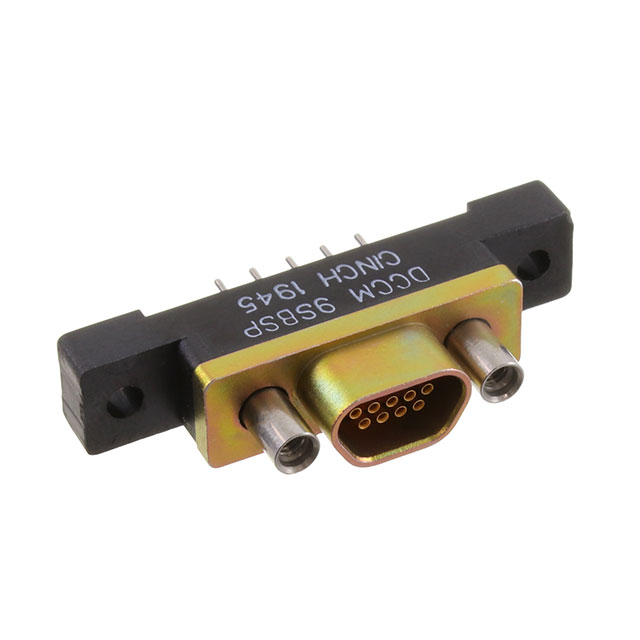

Cinch Connectivity Solutions DCCM9SBSP	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	9	Shielded			Female Screwlock Mating Side	Solder	Aluminum Alloy Yellow Chromate Plated Cadmium	0.043 in	0.05 in	50 µin	1.27 µm	Receptacle Female Sockets	UL94 V-0	3 A	Gold	Through Hole	D-Type Micro-D	Signal	2
Cinch Connectivity Solutions DCCM9P6E5-36.0BN					9									50 µin	1.27 µm				Gold					Male Pins Plug	Individual Multiple	Individual Wire Leads	D-Type Micro-D	91.44 cm	3 ft
