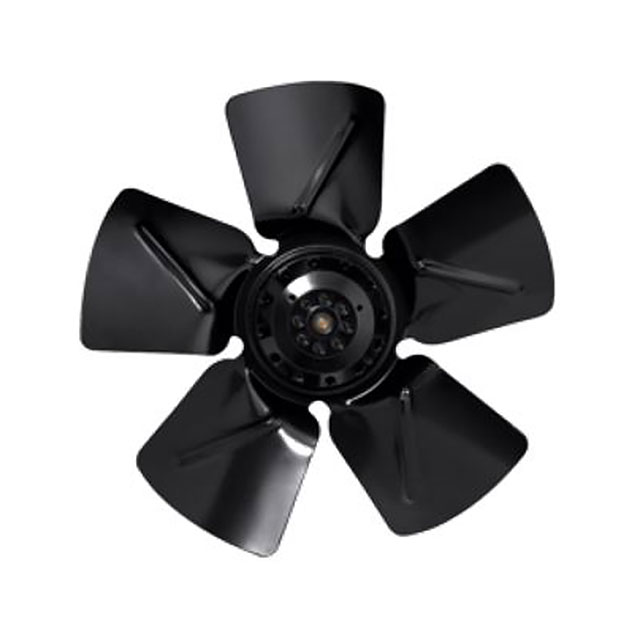

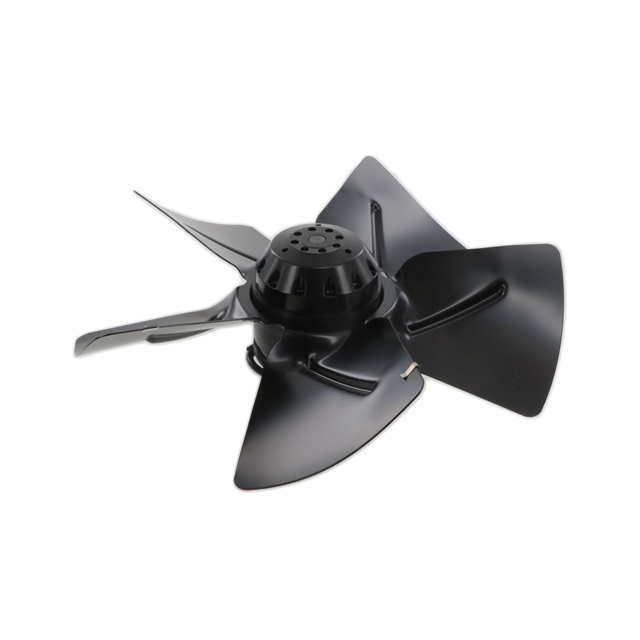

A4E350 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
AC FAN AXIAL BALL BEARING 230V 353 X 103.5MM
| Part | Current Rating (Amps) | Material - Blade | Weight | Weight | RPM | Size / Dimension | Size / Dimension [diameter] | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Ingress Protection | Bearing Type | Static Pressure | Static Pressure | Width [y] | Voltage - Rated | Approval Agency | Termination | Air Flow | Air Flow | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 0.86 A | Steel | 7 lbs | 3.2 kg | 1550 RPM | Round | 353 mm | Motorized Impellers | -40 C | 70 °C | 70 °C | -40 °C | 195 W | IP44 | Ball | 89.6 Pa | 0.36 in H2O | 101.5 mm | 230 VAC | CE CSA UL | 4 Wire Leads | |||
 ebm-papst Inc. | 900 mA | Steel | 1550 RPM | Round | 353 mm | Tubeaxial | -25 °C | 30 °C | 205 W | IP44 | Ball | 90.5 Pa | 0.363 in H2O | 101.5 mm | 230 VAC | CCC CE EAC UL | 4 Wire Leads | 1107.3 CFM | 31 m³/min | Capacitor Thermal Overload Protector (TOP) |
