1546105 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

15 POS 5.08MM LH PLUG BLCK

Part	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Insulation Height	Insulation Height	Number of Positions	Positions Per Level	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Pitch [x]	Pitch [x]	Plug Wire Entry	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Torque - Screw	Torque - Screw	Voltage - UL	Type	Color	Contact Mating Finish	Screw Size	Number of Levels	Contact Material	Mounting Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Raychem Cable Protection 1-1546105-5	0.05 mm²	3 mm²	25 mm	0.984 in	15	15	30 AWG	12 AWG	0.2 in	5.08 mm	270 °	7.5 mm	6 mm	UL94 V-0	0.79 Nm	7 Lb-In	300 V	Plug Female Sockets	Black	Tin	M3	1	Phosphor Bronze	Free Hanging (In-Line)	Screw - Rising Cage Clamp	-40 °C	110 °C

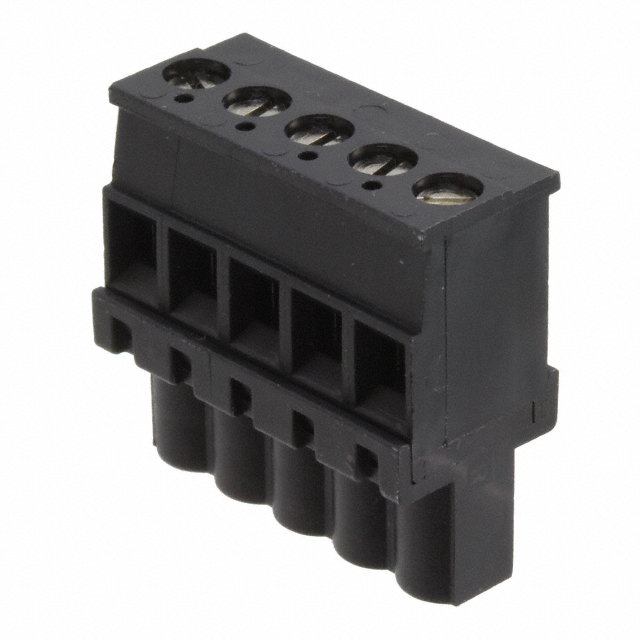

TE Connectivity Raychem Cable Protection 1546105-5	0.05 mm²	3 mm²	25 mm	0.984 in		5	30 AWG	12 AWG	0.2 in	5.08 mm	270 °	7.5 mm	6 mm	UL94 V-0	0.79 Nm	7 Lb-In	300 V	Plug Female Sockets	Black	Tin	M3	1	Phosphor Bronze	Free Hanging (In-Line)	Screw - Rising Cage Clamp	-40 °C	110 °C
TE Connectivity Raychem Cable Protection 1-1546105-1	0.05 mm²	3 mm²	25 mm	0.984 in	11	11	30 AWG	12 AWG	0.2 in	5.08 mm	270 °	7.5 mm	6 mm	UL94 V-0	0.79 Nm	7 Lb-In	300 V	Plug Female Sockets	Black	Tin	M3	1	Phosphor Bronze	Free Hanging (In-Line)	Screw - Rising Cage Clamp	-40 °C	110 °C
TE Connectivity Raychem Cable Protection 2-1546105-1	0.05 mm²	3 mm²	25 mm	0.984 in	21	21	30 AWG	12 AWG	0.2 in	5.08 mm	270 °	7.5 mm	6 mm	UL94 V-0	0.79 Nm	7 Lb-In	300 V	Plug Female Sockets	Black	Tin	M3	1	Phosphor Bronze	Free Hanging (In-Line)	Screw - Rising Cage Clamp	-40 °C	110 °C
