LZ4-20 Series

Catalog

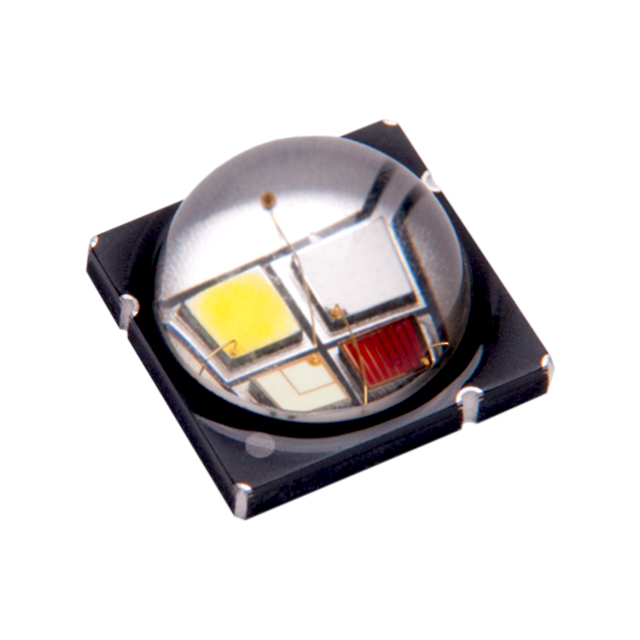

LED MOD LZ4 RGBA STARBOARD

Part	Type	Voltage - Forward (Vf) (Typ)	Configuration	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Light Emitting Surface (LES) [diameter]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Viewing Angle	Size / Dimension [diameter]	Height [z]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Temperature - Test	Color	Wavelength [custom]	Wavelength [custom]	Wavelength [custom]	Wavelength [custom]	Lens Type	Wavelength	Luminous Flux @ Current/Temperature [custom]	CRI (Color Rendering Index)	CCT (K)	Current - Max [custom]	Lumens/Watt @ Current - Test [custom]	Current - Test	Mounting Type	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
ams-OSRAM USA INC. LZ4-20MA00-0000	LED Module	2.2 V 2.5 V 3.5 V 3.5 V	Starboard	160 lm	78 lm	115 lm	30 lm	5.6 mm	700 mA	700 mA	700 mA	700 mA	1 A	1 A	1 A	1 A	95 °	19.9 mm	5.6 mm	65 lm/W	45 lm/W	75 lm/W	12 lm/W	25 °C	Amber Blue Green Red	457 nm	525 nm	593 nm	624 nm	Domed
ams-OSRAM USA INC. LZ4-20D108-0000
ams-OSRAM USA INC. LZ4-20MC00-0000	LED Module	2.2 V 3.5 V 7 V	Starboard	290 lm		115 lm	31 lm	5.6 mm	700 mA		700 mA	700 mA	1 A	1 A		1 A	95 °	19.9 mm	5.6 mm	59 lm/W		75 lm/W	13 lm/W	25 °C	Blue Green Red					Domed	457 nm 525 nm 624 nm
ams-OSRAM USA INC. LZ4-20MD0C-0000	LED Module		Starboard	160 lm		115 lm	30 lm	5.6 mm					1 A	1 A		1 A	95 °	19.9 mm	5.6 mm	62 lm/W		61 lm/W	12 lm/W	25 °C	Blue Green Red White					Domed	457 nm 525 nm 624 nm	190 lm	75	6500 K	1 A	75 lm/W
ams-OSRAM USA INC. LZ4-20MD06-0000				235 lm		215 lm	56 lm																		Blue Green Red White						457 nm 523 nm 623 nm 6500 K	360 lm					1.2 A	Surface Mount	3 A	0.276 "	0.276 in	7 mm	7 mm
