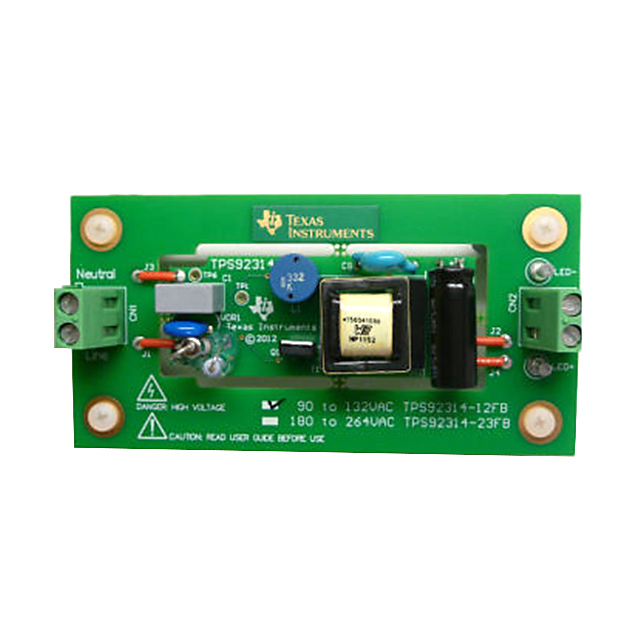

TPS92314A Series

high-current off-line primary side sensing controller with PFC in 8-SOIC

Catalog

high-current off-line primary side sensing controller with PFC in 8-SOIC

Part	Package / Case	Package / Case [y]	Package / Case [x]	Type	Mounting Type	Voltage - Supply (Max) [Max]	Internal Switch(s)	Topology	Number of Outputs	Voltage - Supply (Min) [Min]	Supplier Device Package	Applications	Frequency [Max]	Frequency [Min]	Operating Temperature [Min]	Operating Temperature [Max]
Texas Instruments TPS92314D/NOPB	8-SOIC	3.9 mm	0.154 in	AC DC Offline Switcher	Surface Mount	35 V		Flyback	1	13 V	8-SOIC	Lighting	150 kHz	60 kHz	-40 °C	125 ¯C
Texas Instruments TPS92314ADR/NOPB	8-SOIC	3.9 mm	0.154 in	AC DC Offline Switcher	Surface Mount	35 V		Flyback	1	13 V	8-SOIC	Lighting	150 kHz	60 kHz	-40 °C	125 ¯C

Catalog

high-current off-line primary side sensing controller with PFC in 8-SOIC

Key Features

• Regulates LED Current Without Secondary Side SensingAdaptive ON-time Control with Inherent PFCCritical-Conduction-Mode (CRM) with Zero-Current Detection (ZCD) for Valley SwitchingProgrammable Switch Turn ON DelayProgrammable Constant ON-Time (COT)Over Current Limit Options:TPS92314: 1.15VTPS92314A: 2.0VAdvanced Over Current and Over Voltage ProtectionInternal Over-temperature Protection8-Pin SOIC PackageAll trademarks are the property of their respective owners.Regulates LED Current Without Secondary Side SensingAdaptive ON-time Control with Inherent PFCCritical-Conduction-Mode (CRM) with Zero-Current Detection (ZCD) for Valley SwitchingProgrammable Switch Turn ON DelayProgrammable Constant ON-Time (COT)Over Current Limit Options:TPS92314: 1.15VTPS92314A: 2.0VAdvanced Over Current and Over Voltage ProtectionInternal Over-temperature Protection8-Pin SOIC PackageAll trademarks are the property of their respective owners.

Description

The TPS92314/14A is an off-line controller specifically designed to drive high power LEDs for lighting applications. Features include adaptive constant on-time control and quasi-resonant switching. Resonant switching allows for a reduced EMI signature and increased system efficiency. Thus, the device introduces a low external parts count and high level of integration. The control algorithm of TPS92314/14A adjusts the on time with reference to the primary side inductor peak current and secondary side inductor discharge time dynamically, the response time of which is set by an external capacitor. The over current protection is implemented by a cycle by cycle current limit of the primary inductor current. TPS92314A has a higher OCP threshold which is more suitable for universal line application and TPS92314 can optimize the system cost. Other supervisory features of the TPS92314/14A include VCC over voltage protection and under-voltage lockout, output LEDs over-voltage protection and controller thermal shutdown. The TPS92314/14A is available in 8-pin SOIC package. The TPS92314/14A is an off-line controller specifically designed to drive high power LEDs for lighting applications. Features include adaptive constant on-time control and quasi-resonant switching. Resonant switching allows for a reduced EMI signature and increased system efficiency. Thus, the device introduces a low external parts count and high level of integration. The control algorithm of TPS92314/14A adjusts the on time with reference to the primary side inductor peak current and secondary side inductor discharge time dynamically, the response time of which is set by an external capacitor. The over current protection is implemented by a cycle by cycle current limit of the primary inductor current. TPS92314A has a higher OCP threshold which is more suitable for universal line application and TPS92314 can optimize the system cost. Other supervisory features of the TPS92314/14A include VCC over voltage protection and under-voltage lockout, output LEDs over-voltage protection and controller thermal shutdown. The TPS92314/14A is available in 8-pin SOIC package.
