YA-2RQ Series

Catalog

SWITCH SNAP ACT SPST-NO 20A 125V

Part	Features	Switch Function	Mechanical Life	Actuator Type	Operating Position	Operating Position	Overtravel [custom]	Overtravel [custom]	Current Rating (Amps)	Release Force	Operating Force [Max]	Operating Force [Min]	Circuit	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Voltage Rating - AC	Pretravel	Pretravel	Differential Travel	Differential Travel

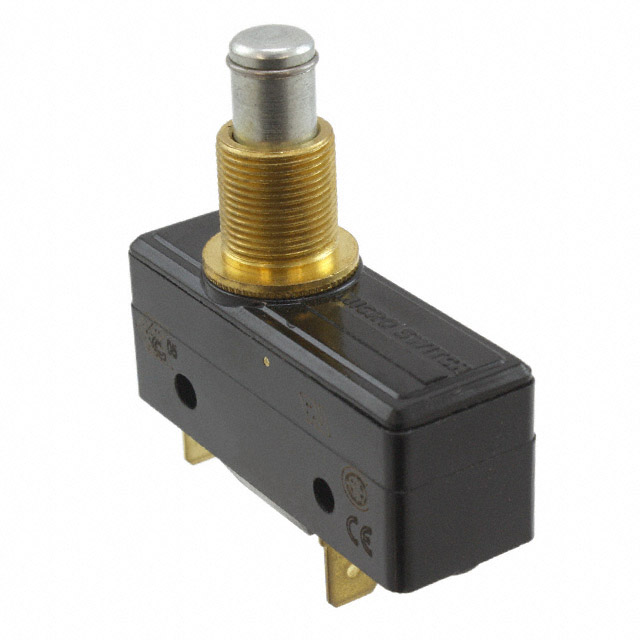

Honeywell Sensing and Productivity Solutions YA-2RQ1243-D6	Steel Plunger	Off-Mom	20000000 Cycles	Overtravel Plunger	21.8 mm	0.859 in	5.6 mm	0.219 "	20 A 500 mA	283 gf	624 gf	397 gf	SPST-NO	125 VDC	-55 C	121 C	Panel Mount	Quick Connect - 0.250" (6.3mm)	125 V	0.05 in	1.27 mm	0.007 in	0.18 mm
Honeywell Sensing and Productivity Solutions YA-2RQ1250-A2	Steel Plunger	Off-Mom	20000000 Cycles	Overtravel Plunger	21.8 mm	0.859 in	5.6 mm	0.219 "	20 A 500 mA	283 gf	624 gf	397 gf	SPST-NO	125 VDC	-55 C	121 C	Panel Mount	Screw Terminal	125 V	0.05 in	1.27 mm	0.007 in	0.18 mm

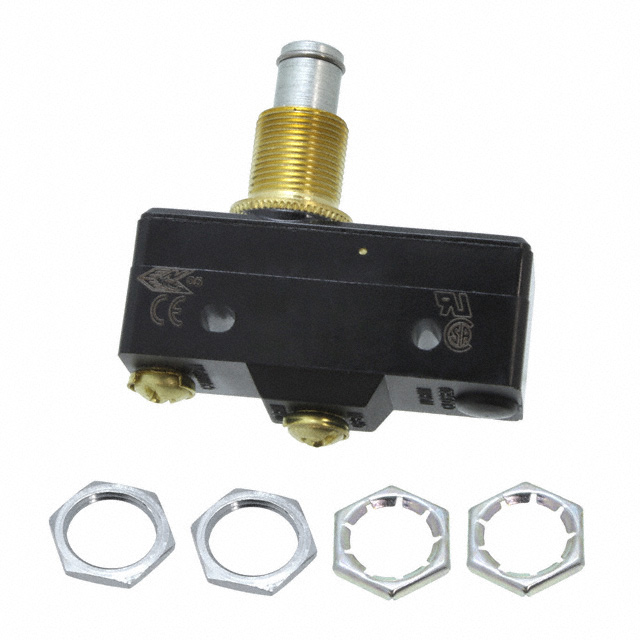

Honeywell Sensing and Productivity Solutions YA-2RQ1-A2	Steel Plunger	Off-Mom	20000000 Cycles	Overtravel Plunger	21.8 mm	0.859 in	5.6 mm	0.219 "	20 A 500 mA	283 gf	624 gf	397 gf	SPST-NO	125 VDC	-55 C	85 °C	Panel Mount	Screw Terminal	125 V	0.05 in	1.27 mm	0.007 in	0.18 mm
Honeywell Sensing and Productivity Solutions YA-2RQ81245-D6		Off-Mom	20000000 Cycles	Cross Roller Plunger	49.3 mm	1.942 in	5.6 mm	0.219 "	20 A 500 mA	255 gf	624 gf	397 gf	SPST-NO	125 VDC	-55 C	121 C	Panel Mount	Quick Connect - 0.250" (6.3mm)	125 V	0.05 in	1.27 mm	0.007 in	0.18 mm
