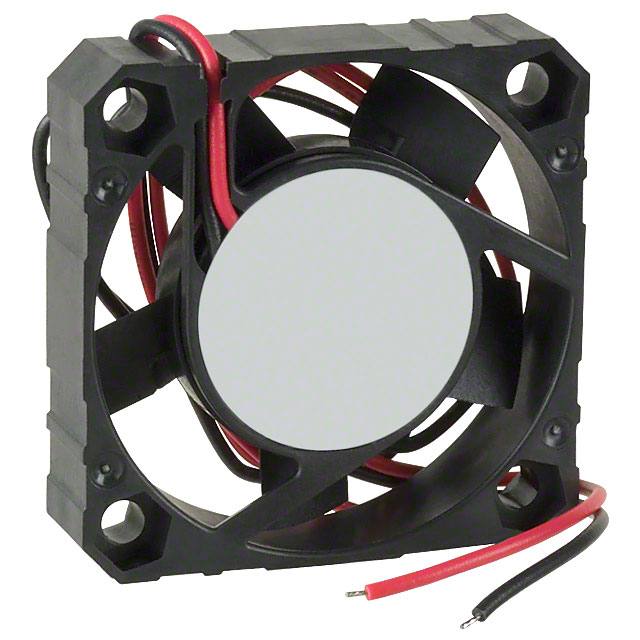

F410T Series

Manufacturer: Nidec Components Corporation

Catalog

AXIAL FAN, 40MM, 12VDC, 5.297CFM, 18DBA

Part	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	RPM	Power (Watts)	Bearing Type	Static Pressure	Static Pressure	Material - Frame	Material - Blade	Current Rating (Amps)	Weight	Weight	Air Flow	Air Flow	Noise	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Width [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Termination	Air Flow
Nidec Components Corporation F410T-12MC	12 VDC	-10 °C	-10 °C	60 °C	60 °C	5800 RPM	720 mW	Sleeve	23 Pa	0.092 in H2O	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	60 mA	0.044 lb	19.96 g	5.3 CFM	0.148 m³/min	18 dB(A)	10.2 VDC	13.8 VDC	Tubeaxial	10 mm	40 mm	Square	40 mm	2 Wire Leads
Nidec Components Corporation F410T-05MC	5 V	-10 °C	-10 °C	60 °C	60 °C	5800 RPM	600 mW	Sleeve	23 Pa	0.092 in H2O	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	120 mA	0.044 lb	19.96 g	5.3 CFM	0.148 m³/min	18 dB(A)	4.5 V	5.7 VDC	Tubeaxial	10 mm	40 mm	Square	40 mm	2 Wire Leads
Nidec Components Corporation F410T-05LC	5 V	-10 °C	-10 °C	60 °C	60 °C	4600 RPM	0.4 W	Sleeve	10 Pa	0.04 in H2O	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)		0.044 lb	19.96 g		3.9 CFM	12 dB(A)	4.5 V	5.7 VDC	Tubeaxial	10 mm	40 mm	Square	40 mm	2 Wire Leads	0.109 m³/min
Nidec Components Corporation F410T-12LC	12 VDC	-10 °C	-10 °C	60 °C	60 °C	4600 RPM	0.48 W	Sleeve	10 Pa	0.04 in H2O	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	40 mA	0.044 lb	19.96 g		3.9 CFM	12 dB(A)	10.2 VDC	13.2 VDC	Tubeaxial	10 mm	40 mm	Square	40 mm	2 Wire Leads	0.109 m³/min
