TPS2124 Series

2.8-V to 22-V priority power MUX with seamless switchover

Catalog

2.8-V to 22-V priority power MUX with seamless switchover

Part	Type	Contents	Function	Utilized IC / Part	Supplied Contents	Secondary Attributes	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Supplier Device Package	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply

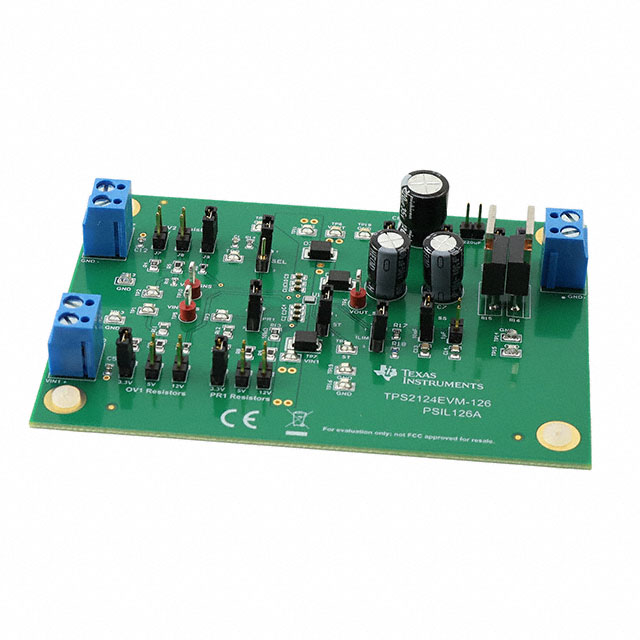

Texas Instruments TPS2124EVM-126	Power Management	Board(s)	Power Distribution Switch (Load Switch)	TPS2124	Board(s)	On-Board Test Points
Texas Instruments TPS2124YFPR							-40 °C	125 ¯C	Surface Mount	20-DSBGA	General Purpose	22 V	2.8 V	300 µA

Catalog

2.8-V to 22-V priority power MUX with seamless switchover

Key Features

• Wide operating range: 2.8 V to 22 VAbsolute maximum input voltage of 24 VLow RONresistance:TPS2124: 62 mΩ (typical)Adjustable over-voltage supervisor (OVx):Accuracy < ±5%Adjustable priority supervisor (PR1):Accuracy < ±5%Output current limit (ILM):TPS2124: 1 A – 2.5 AChannel status indication (ST)Adjustable input settling time (SS)Adjustable output soft start time (SS)Low IQfrom enabled input: 200 µA (typical)Low IQfrom disabled input: 15 µA (Typical)Manual input source selection (OVx)Over-temperature protection (OTP)Wide operating range: 2.8 V to 22 VAbsolute maximum input voltage of 24 VLow RONresistance:TPS2124: 62 mΩ (typical)Adjustable over-voltage supervisor (OVx):Accuracy < ±5%Adjustable priority supervisor (PR1):Accuracy < ±5%Output current limit (ILM):TPS2124: 1 A – 2.5 AChannel status indication (ST)Adjustable input settling time (SS)Adjustable output soft start time (SS)Low IQfrom enabled input: 200 µA (typical)Low IQfrom disabled input: 15 µA (Typical)Manual input source selection (OVx)Over-temperature protection (OTP)

Description

The TPS2124 device is a Dual-Input, Single-Output (DISO) Power Multiplexer (MUX) that is well suited for a variety of systems having multiple power sources. The device will Automatically Detect, Select, and Seamlessly Transition between available inputs. Priority can be automatically given to the highest input voltage or manually assigned to a lower voltage input to support both ORing and Source Selection operations. A priority voltage supervisor is used to select an input source. An Ideal Diode operation is used to seamlessly transition between input sources. During switchover, the voltage drop is controlled to block reverse current before it happens and provide uninterrupted power to the load with minimal hold-up capacitance. Current limiting is used during startup and switchover to protect against overcurrent events, and also protects the device during normal operation. The output current limit can be adjusted with a single external resistor. The TPS2124 device is available in a WCSP package characterized for operation for a temperature range of –40°C to 125°C. The TPS2124 device is a Dual-Input, Single-Output (DISO) Power Multiplexer (MUX) that is well suited for a variety of systems having multiple power sources. The device will Automatically Detect, Select, and Seamlessly Transition between available inputs. Priority can be automatically given to the highest input voltage or manually assigned to a lower voltage input to support both ORing and Source Selection operations. A priority voltage supervisor is used to select an input source. An Ideal Diode operation is used to seamlessly transition between input sources. During switchover, the voltage drop is controlled to block reverse current before it happens and provide uninterrupted power to the load with minimal hold-up capacitance. Current limiting is used during startup and switchover to protect against overcurrent events, and also protects the device during normal operation. The output current limit can be adjusted with a single external resistor. The TPS2124 device is available in a WCSP package characterized for operation for a temperature range of –40°C to 125°C.
