337-078 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 78POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Material	Termination	Card Type	Mounting Type	Read Out	Contact Type	Number of Positions/Bay/Row	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows [custom]	Pitch	Pitch	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Features
EDAC Inc. 337-078-541-204	2	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Wire Wrap	Non Specified - Dual Edge	Through Hole	Dual	Cantilever	39	78	Green	0.25 Ám	10 Áin	Gold	2	3.96 mm	0.156 in	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 337-078-558-807	2	Polyester Thermoplastic	M3 Threaded Insert Top Mount Opening			Copper Alloy	Wire Wrap	Non Specified - Dual Edge	Right Angle Through Hole	Dual	Cantilever	39	78	Green	0.25 Ám	10 Áin	Gold	2	3.96 mm	0.156 in	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm

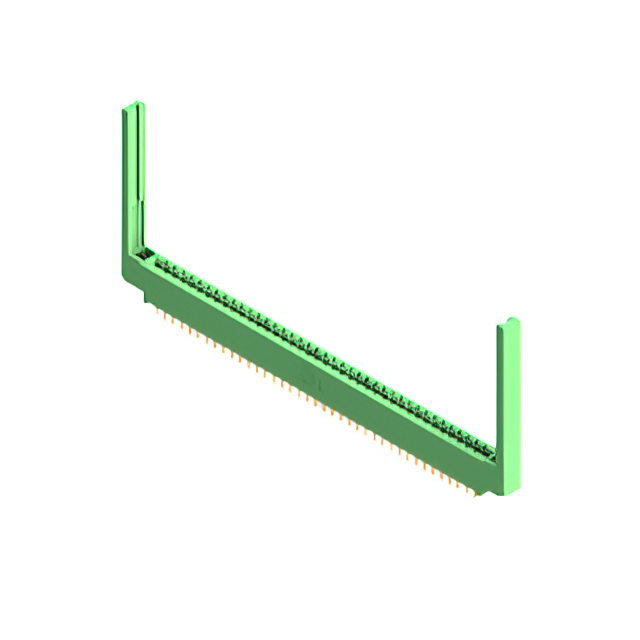

EDAC Inc. 337-078-540-868	2	Polyester Thermoplastic	4-40 Threaded Insert Top Mount Opening			Copper Alloy	Wire Wrap	Non Specified - Dual Edge	Through Hole	Dual	Cantilever	39	78	Green	0.25 Ám	10 Áin	Gold	2	3.96 mm	0.156 in	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Guides
EDAC Inc. 337-078-559-204	2	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Wire Wrap	Non Specified - Dual Edge	Right Angle Through Hole	Dual	Cantilever	39	78	Green	0.25 Ám	10 Áin	Gold	2	3.96 mm	0.156 in	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 337-078-556-203	2	Polyester Thermoplastic	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Copper Alloy	Solder	Non Specified - Dual Edge	Board Edge Straddle Mount	Dual	Cantilever	39	78	Green	0.25 Ám	10 Áin	Gold	2	3.96 mm	0.156 in	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
EDAC Inc. 337-078-541-212	2	Polyester Thermoplastic	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	Wire Wrap	Non Specified - Dual Edge	Through Hole	Dual	Cantilever	39	78	Green	0.25 Ám	10 Áin	Gold	2	3.96 mm	0.156 in	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 337-078-541-208	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Wire Wrap	Non Specified - Dual Edge	Through Hole	Dual	Cantilever	39	78	Green	0.25 Ám	10 Áin	Gold	2	3.96 mm	0.156 in	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 337-078-500-868	2	Polyester Thermoplastic	4-40 Threaded Insert Top Mount Opening			Copper Alloy	Solder Eyelet(s)	Non Specified - Dual Edge	Through Hole	Dual	Cantilever	39	78	Green	0.25 Ám	10 Áin	Gold	2	3.96 mm	0.156 in	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Guides
EDAC Inc. 337-078-541-207	2	Polyester Thermoplastic	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	Wire Wrap	Non Specified - Dual Edge	Through Hole	Dual	Cantilever	39	78	Green	0.25 Ám	10 Áin	Gold	2	3.96 mm	0.156 in	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm

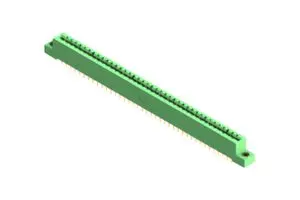

EDAC Inc. 337-078-524-207	2	Polyester Thermoplastic	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	Solder	Non Specified - Dual Edge	Through Hole	Dual	Cantilever	39	78	Green	0.25 Ám	10 Áin	Gold	2	3.96 mm	0.156 in	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
