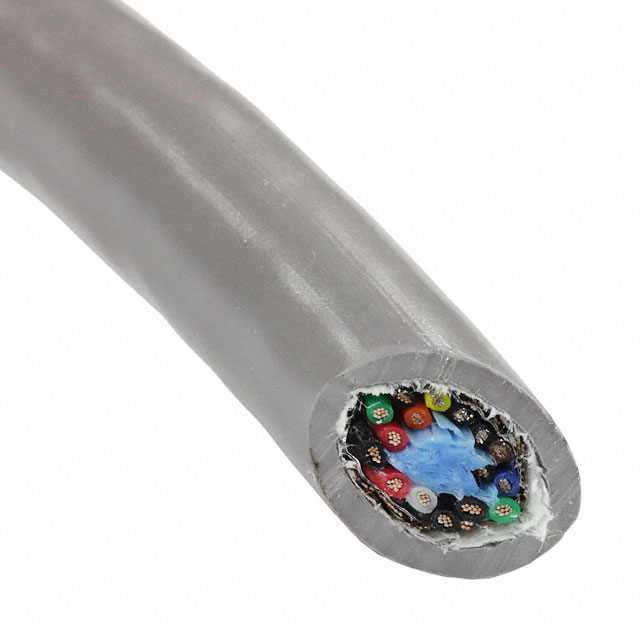

6379 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 16COND 22AWG 500'
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Features | Jacket (Insulation) Material | Conductor Insulation | Wire Gauge | Jacket Color | Shield Type | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Length | Length | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 80 °C | -20 ░C | 28 AWG | 7 | 16 | Drain Wire | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 22 AWG | Slate | Braid Foil | UL Style 2464 | 9.22 mm | 0.363 in | Copper Tinned | 0.813 mm | 0.032 in | Multi-Pair | 152.4 m | 500 ft | 300 VDC |
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 80 °C | -20 ░C | 28 AWG | 7 | 16 | Drain Wire | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 22 AWG | Slate | Braid Foil | UL Style 2464 | 9.22 mm | 0.363 in | Copper Tinned | 0.813 mm | 0.032 in | Multi-Pair | 304.8 m | 1000 ft | 300 VDC |
