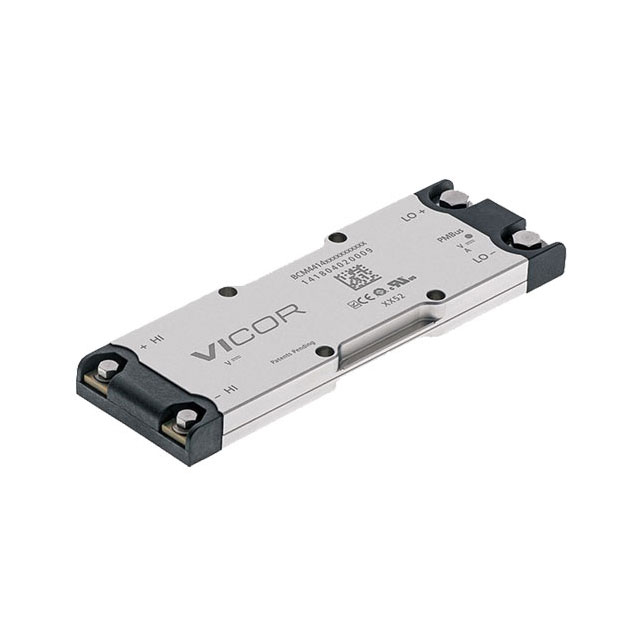

BCM4414 Series

Catalog

DC DC CONVERTER 50V

Part	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Features	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 1	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Applications	Efficiency	Supplier Device Package	Voltage - Isolation	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Power (Watts)
Vicor Corporation BCM4414BD1E5135T06	410 V	35 A	-40 C	100 °C	Bus Converter Module	OCP OTP OVP SCP UVLO	1	260 V	50 V	Through Hole	Module	1.4 in	35.5 mm	0.37 in	4.35 "	9.3 mm	110.6 mm	ITE (Commercial)
Vicor Corporation BCM4414BD1E13A3C06	410 V	125 A	-20 ░C	100 °C	Bus Converter Module	OCP OTP OVP SCP UVLO	1	260 V	12 V	Through Hole	Module	1.4 in	35.5 mm	0.37 in	4.35 "	9.3 mm	110.6 mm	ITE (Commercial)	97 %	Module
Vicor Corporation BCM4414BG0F4440T06	700 V	40 A	-40 °C	100 °C	Bus Converter Module	OCP OTP OVP SCP UVLO	1	400 VDC	34 V	Through Hole	Module	1.4 in	35.5 mm	0.37 in	4.44 "	9.3 mm	112.8 mm	ITE (Commercial)	97.5 %	Module	4.3 kV
Vicor Corporation BCM4414VD1E13A3C02	410 V	125 A	-20 ░C	100 °C	Front End		1	260 V	12.8 V	Chassis Mount		1.4 in		0.37 in	4.35 "		110.6 mm	ITE (Commercial)	97.1 %		2.121 kV	CE cURus	3535 mm	9.4 mm
Vicor Corporation BCM4414VD1E13A2T02	410 V	125 A	-40 C	100 °C	Enclosed		1	260 V	12 V	Chassis Mount		1.4 in	35.5 mm	0.37 in	4.35 "	9.3 mm	110.6 mm	ITE (Commercial)	97 %			CE
Vicor Corporation BCM4414BG0F4440M06	700 V	40 A	-55 °C	100 °C	Bus Converter Module	OCP OTP OVP SCP UVLO	1	400 VDC	34 V	Through Hole	Module	1.4 in	35.5 mm	0.37 in	4.44 "	9.3 mm	112.8 mm	ITE (Commercial)	97.5 %		4.3 kV	CE cTUVus cURus
Vicor Corporation BCM4414VD1E2663C02	410 V	62.5 A	-40 °C	100 °C	Enclosed		1	260 V	24 V	Chassis Mount		1.4 in	35.5 mm	0.37 in	4.35 "	9.3 mm	110.6 mm	ITE (Commercial)	97.1 %		2.121 kV	CE cTUVus cURus			60950-1	1500 W
Vicor Corporation BCM4414VD1E5135T02	410 V	35 A	-40 C	100 °C	Enclosed		1	260 V	50 V	Chassis Mount		1.4 in	35.5 mm	0.37 in	4.35 "	9.3 mm	110.6 mm	ITE (Commercial)				CE cURus TUV
Vicor Corporation BCM4414BH0E5035T10	800 VDC	35 A	-40 C	100 °C	Bus Converter Module	OCP OTP OVP SCP UVLO	1	500 V	40.6 V	Through Hole	Module	1.4 in	35.5 mm	0.37 in	4.44 "	9.3 mm	112.8 mm	ITE (Commercial)	97.5 %		4.3 kV	CE
Vicor Corporation BCM4414BG0F4440T10	700 V	40 A	-40 °C	100 °C	Bus Converter Module	OCP OTP OVP SCP UVLO	1	400 VDC	34 V	Through Hole	Module	1.4 in	35.5 mm	0.37 in	4.44 "	9.3 mm	112.8 mm	ITE (Commercial)	97.5 %	Module	4.3 kV
