076530 Series

Manufacturer: Molex

Catalog

CONN MEZZANINE RCP 240 POS 1.9MM PRESS FIT ST THRU-HOLE IMPACT™ TRAY

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Number of Positions	Termination	Number of Positions Loaded	Voltage Rating	Mounting Type	Pitch [x]	Pitch [x]	Color	Number of Columns	Number of Rows	Connector Style	Material Flammability Rating	Contact Layout, Typical	Operating Temperature [Max]	Operating Temperature [Min]
Molex 0765303036	0.76 Ám	30 Áin	Receptacle Female Sockets	Gold	240	Press-Fit	All	30 VDC	Through Hole	0.053 in	1.35 mm	Black	16	15	Guide Left Impact	UL94 V-0	80	85 °C	-55 °C

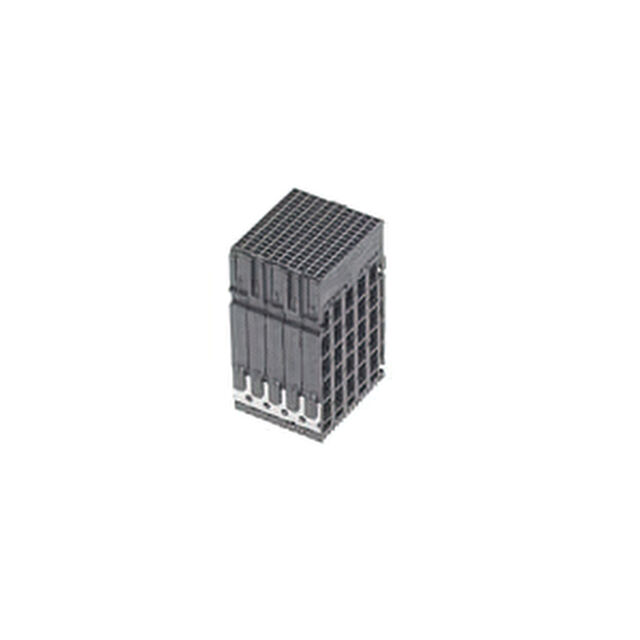

Molex 0765301040	0.76 Ám	30 Áin	Receptacle Female Sockets	Gold	150	Press-Fit	All	30 VDC	Through Hole	0.053 in	1.35 mm	Black	10	15	Impact	UL94 V-0	50 Differential Pairs	85 °C	-55 °C
Molex 0765305040	0.76 Ám	30 Áin	Receptacle Female Sockets	Gold	150	Press-Fit	All	30 VDC	Through Hole	0.053 in	1.35 mm	Black	10	15		UL94 V-0	50 Differential Pairs	85 °C	-55 °C
Molex 0765305032	0.76 Ám	30 Áin	Receptacle Female Sockets	Gold	180	Press-Fit	All	30 VDC	Through Hole	0.053 in	1.35 mm	Black	12	15		UL94 V-0	60 Ground	85 °C	-55 °C
Molex 0765305036	0.76 Ám	30 Áin	Receptacle Female Sockets	Gold	240	Press-Fit	All	30 VDC	Through Hole	0.053 in	1.35 mm	Black	16	15		UL94 V-0	80	85 °C	-55 °C
Molex 0765301030	0.76 Ám	30 Áin	Receptacle Female Sockets	Gold	150	Press-Fit	All	30 VDC	Through Hole	0.053 in	1.35 mm	Black	10	15	Impact	UL94 V-0	50 Differential Pairs	85 °C	-55 °C
Molex 0765305046	0.76 Ám	30 Áin	Receptacle Female Sockets	Gold	240	Press-Fit	All	30 VDC	Through Hole	0.053 in	1.35 mm	Black	16	15		UL94 V-0	80	85 °C	-55 °C
Molex 0765301046	0.76 Ám	30 Áin	Receptacle Female Sockets	Gold	240	Press-Fit	All	30 VDC	Through Hole	0.053 in	1.35 mm	Black	16	15	Impact	UL94 V-0	80	85 °C	-55 °C
Molex 0765303040	0.76 Ám	30 Áin	Receptacle Female Sockets	Gold	150	Press-Fit	All	30 VDC	Through Hole	0.053 in	1.35 mm	Black	10	15	Guide Left Impact	UL94 V-0	50 Differential Pairs	85 °C	-55 °C
