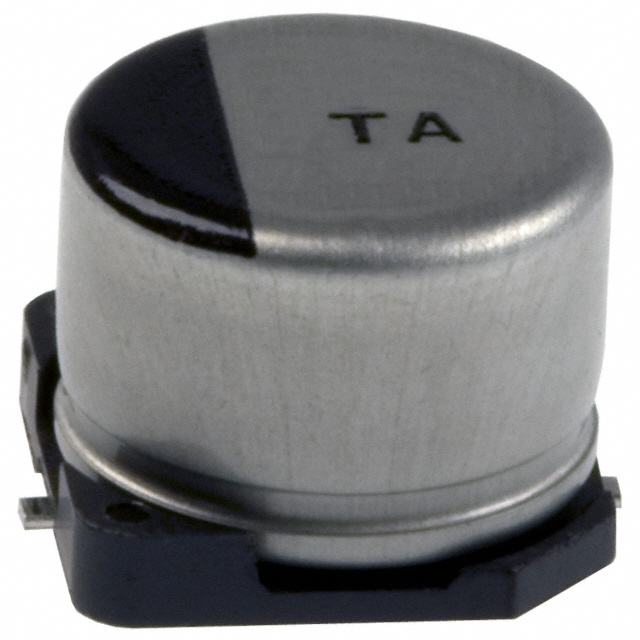

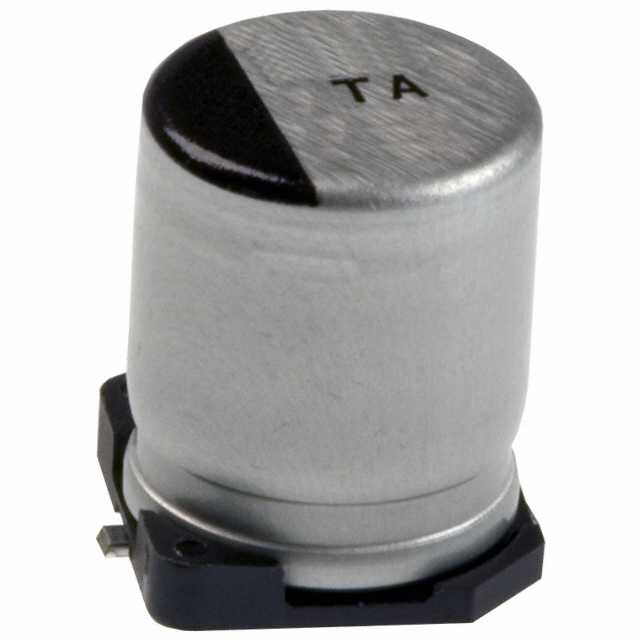

EEV-TA Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 100UF 20% 16V SMD

Part	Lifetime @ Temp.	Voltage - Rated	Tolerance	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Applications	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Ripple Current @ High Frequency	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency
Panasonic Industrial Automation Sales EEV-TA1C101P	1000 Hrs	16 V	20 %	Surface Mount	0.315 "	8 mm	100 µF	Automotive	0.327 "	8.3 mm	0.327 in	8.3 mm	125 °C	-40 °C	Radial Can - SMD	89 mA	Polar	10.2 mm	0.402 "
Panasonic Industrial Automation Sales EEV-TA1A331P	1000 Hrs	10 V	20 %	Surface Mount	0.394 in	10 mm	330 µF	Automotive	0.406 in	10.3 mm	0.406 "	10.3 mm	125 °C	-40 °C	Radial Can - SMD	118 mA	Polar	10.2 mm	0.402 "
Panasonic Industrial Automation Sales EEV-TA1E101P	1000 Hrs	25 VDC	20 %	Surface Mount	0.315 "	8 mm	100 µF	Automotive	0.327 "	8.3 mm	0.327 in	8.3 mm	125 °C	-40 °C	Radial Can - SMD		Polar	10.2 mm	0.402 "	54.6 mA
Panasonic Industrial Automation Sales EEV-TA1C221P	1000 Hrs	16 V	20 %	Surface Mount	0.394 in	10 mm	220 µF	Automotive	0.406 in	10.3 mm	0.406 "	10.3 mm	125 °C	-40 °C	Radial Can - SMD	113 mA	Polar	10.2 mm	0.402 "
Panasonic Industrial Automation Sales EEV-TA1H220P	1000 Hrs	50 VDC	20 %	Surface Mount	0.315 "	8 mm	22 µF	Automotive	0.327 "	8.3 mm	0.327 in	8.3 mm	125 °C	-40 °C	Radial Can - SMD		Polar	6.2 mm	0.244 in	32.5 mA
Panasonic Industrial Automation Sales EEV-TA1V101P	1000 Hrs	35 V	20 %	Surface Mount	0.394 in	10 mm	100 µF	Automotive	0.406 in	10.3 mm	0.406 "	10.3 mm	125 °C	-40 °C	Radial Can - SMD		Polar	10.2 mm	0.402 "	65.65 mA
Panasonic Industrial Automation Sales EEV-TA1H470P	1000 Hrs	50 VDC	20 %	Surface Mount	0.394 in	10 mm	47 µF	Automotive	0.406 in	10.3 mm	0.406 "	10.3 mm	125 °C	-40 °C	Radial Can - SMD		Polar	10.2 mm	0.402 "	61.1 mA
