SMCD Series

Catalog

SWITCH THUMB BCD 0.4VA 20V

Part	Housing Material	Depth Behind Flange [z]	Color	Actuator Type	Output Code	Mounting Type	Contact Material	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Section Width [custom]	Section Width [custom]	End Caps	Termination Style	Read Out [Max]	Read Out [Min]	Display Characters - Height [z]	Display Characters - Height [z]	Contact Finish	Read Out	Number of Sections	Output Code [z]	Output Code [y]	Output Code [x]	Output Code [y]	Output Code [x]	Output Code [z]
TE Connectivity AMP Connectors SMCD137AK	Polyphenylene Oxide (PPO)	32 mm	Black	Pushwheel	BCD	Panel Mount Snap-In	Copper Alloy	0.4 VA 20 VAC/DC	80 °C	-20 ░C	0.3 in	7.62 mm	Sold Separately	Card Edge/Solder Pad	9	0	0.193 in	4.9 mm	Gold

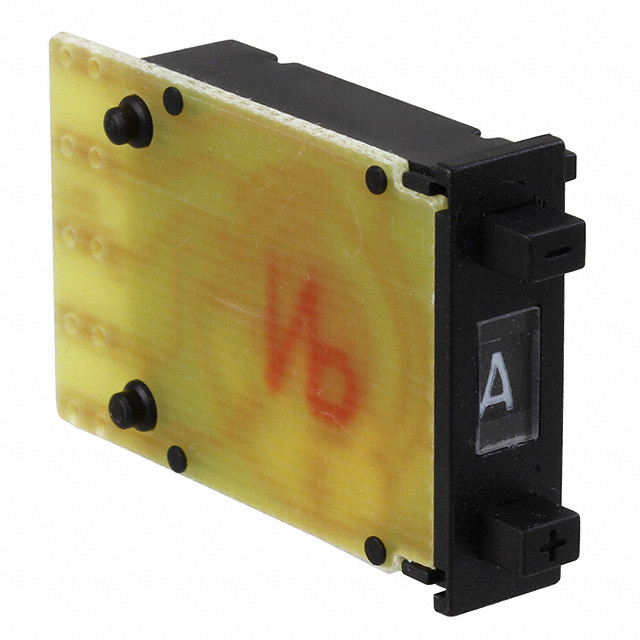

TE Connectivity AMP Connectors SMCD301AK	Polyphenylene Oxide (PPO)	32 mm	Black	Pushwheel	Hexadecimal	Panel Mount Snap-In	Copper Alloy	0.4 VA 20 VAC/DC	80 °C	-20 ░C	0.3 in	7.62 mm	Sold Separately	Card Edge/Solder Pad			0.134 in	3.4 mm	Gold	0 ~ 9 A ~ F	1
TE Connectivity AMP Connectors SMCD111AK	Polyphenylene Oxide (PPO)	32 mm	Black	Pushwheel		Panel Mount Snap-In	Copper Alloy	0.4 VA 20 VAC/DC	80 °C	-20 ░C	0.3 in	7.62 mm	Sold Separately	Card Edge/Solder Pad	9	0	0.193 in	4.9 mm	Gold		1	0.22 "	12.19 mm	8.89 mm	0.48 "	0.35 "	5.59 mm
