MLW3022 Series

Catalog

SWITCH ROCKER DPDT 5A 125V

Part	Mechanical Life	Electrical Life	Circuit	Voltage Rating - DC	Switch Function	Actuator Type	Illumination Voltage (Nominal)	Color - Actuator/Cap	Panel Cutout Dimensions	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Marking	Voltage Rating - AC	Approval Agency	Current Rating (Amps)	Features	Illumination Type, Color	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [custom]

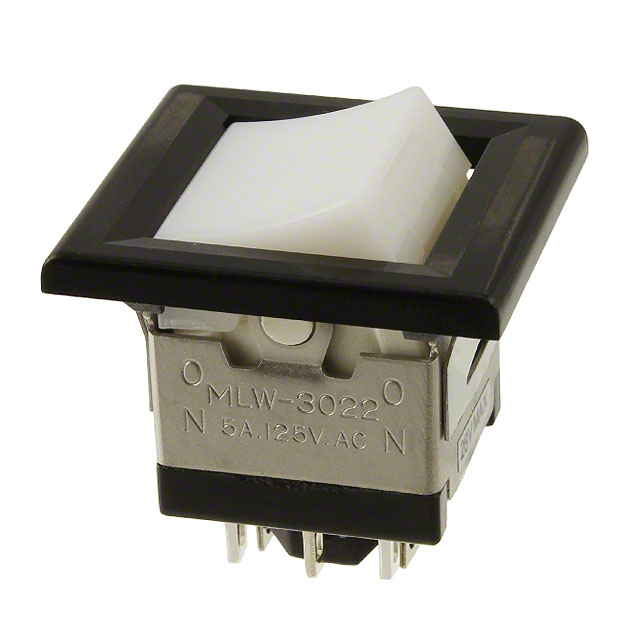

NKK Switches MLW3022-06-RB-2A	30000 Steps	10000 Cycles	DPDT	30 V	On-On	Concave (Curved) - Illuminated	6 VAC	White	19.2 mm²	Panel Mount Snap-In	50 °C	-10 °C	Solder Lug	No Marking	125 V	UL	3 A 5 A	Epoxy Sealed Terminals	Incandescent White
NKK Switches MLW3022-CLC-1A	30000 Steps	10000 Cycles	DPDT	30 V	On-On	Concave (Curved) - Illuminated	1.85 VDC	Red		Panel Mount Snap-In	50 °C	-10 °C	Solder Lug	No Marking	125 V	UL	3 A 5 A	Epoxy Sealed Terminals	LED Red	16.7 mm	18.7 mm

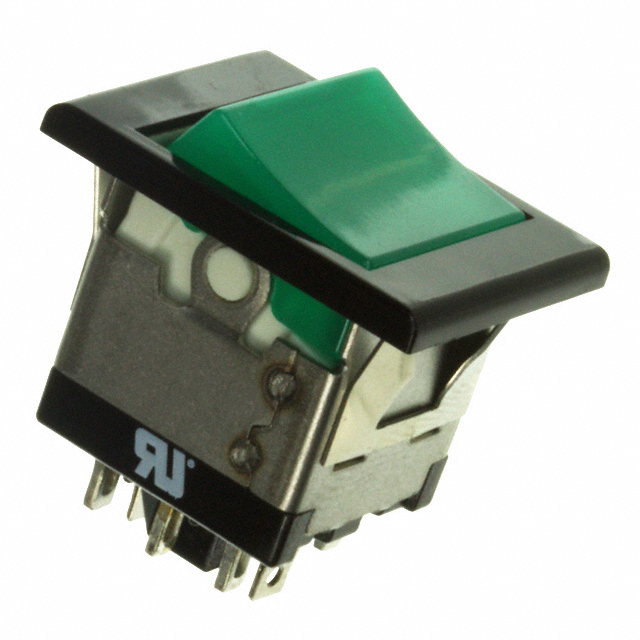

NKK Switches MLW3022-12-RF-1A	30000 Steps	10000 Cycles	DPDT	30 V	On-On	Concave (Curved) - Illuminated	12 VAC	Green		Panel Mount Snap-In	50 °C	-10 °C	Solder Lug	No Marking	125 V	UL	3 A 5 A	Epoxy Sealed Terminals	Green Incandescent	16.7 mm	18.7 mm
NKK Switches MLW3022/U	30000 Steps	10000 Cycles	DPDT		On-On	Actuator Arm Cap Required				Panel Mount Snap-In	50 °C	-10 °C	Solder Lug	Varies by Cap	125 V	UL	5 A	Epoxy Sealed Terminals		16.7 mm	18.7 mm

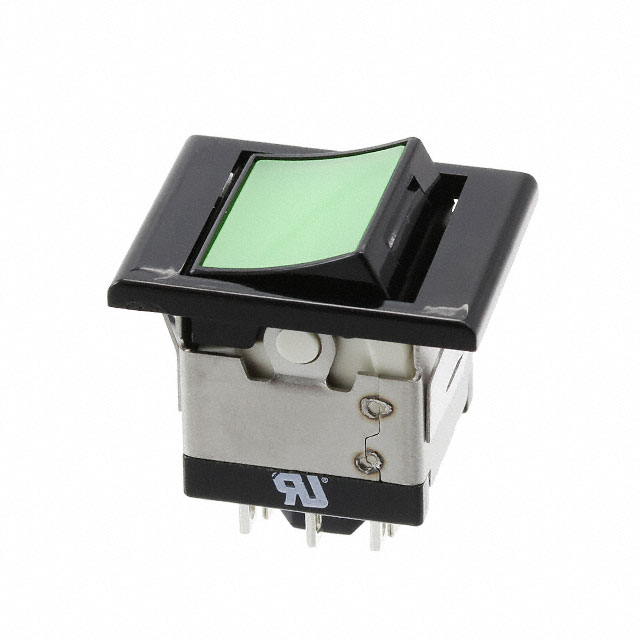

NKK Switches MLW3022-F-LF-1A	30000 Steps	10000 Cycles	DPDT	30 V	On-On	Concave (Curved) - Illuminated	2.1 VDC	Green		Panel Mount Snap-In	50 °C	-10 °C	Solder Lug	No Marking	125 V	UL	3 A 5 A	Epoxy Sealed Terminals	Green LED	16.7 mm	18.7 mm
NKK Switches MLW3022-28-RB-1B	30000 Steps	10000 Cycles	DPDT	30 V	On-On	Concave (Curved) - Illuminated	28 VAC	White		Panel Mount Snap-In	50 °C	-10 °C	Solder Lug	No Marking	125 V	UL	3 A 5 A	Epoxy Sealed Terminals	Incandescent White	16.7 mm	18.7 mm
NKK Switches MLW3022-00-RB-1A	30000 Steps	10000 Cycles	DPDT	30 V	On-On	Concave (Curved)		White		Panel Mount Snap-In	50 °C	-10 °C	Solder Lug	No Marking	125 V	UL	3 A 5 A	Epoxy Sealed Terminals		16.7 mm	18.7 mm
NKK Switches MLW3022-00-RB-2A	30000 Steps	10000 Cycles	DPDT	30 V	On-On	Concave (Curved)		White	19.2 mm²	Panel Mount Snap-In	50 °C	-10 °C	Solder Lug	No Marking	125 V	UL	3 A 5 A	Epoxy Sealed Terminals				19.2 mm˛
NKK Switches MLW3022-00-PC-1A
NKK Switches MLW3022-00-RC	30000 Steps	10000 Cycles	DPDT	30 V	On-On	Concave (Curved)		Red		Panel Mount Snap-In	50 °C	-10 °C	Solder Lug	No Marking	125 V	UL	3 A 5 A	Epoxy Sealed Terminals		16.7 mm	18.7 mm
