LMR24220 Series
Manufacturer: Texas Instruments
Beta
⌘K
BOARD EVAL FOR LMR24220
| Part | Frequency - Switching | Utilized IC / Part | Main Purpose | Current - Output | Outputs and Type | Outputs and Type | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Board Type | Supplied Contents | Regulator Topology | Mounting Type | Voltage - Input (Min) [Min] | Number of Outputs | Output Type | Output Configuration | Voltage - Output (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Topology | Synchronous Rectifier | Frequency - Switching [Max] | Voltage - Output (Min/Fixed) | Package / Case | Supplier Device Package | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 500 kHz | LMR24220 | DC/DC Step Down | 2 A | Non-Isolated | 1 | 3.3 V | 42 V | 4.5 V | Fully Populated | Board(s) | Buck | ||||||||||||||||

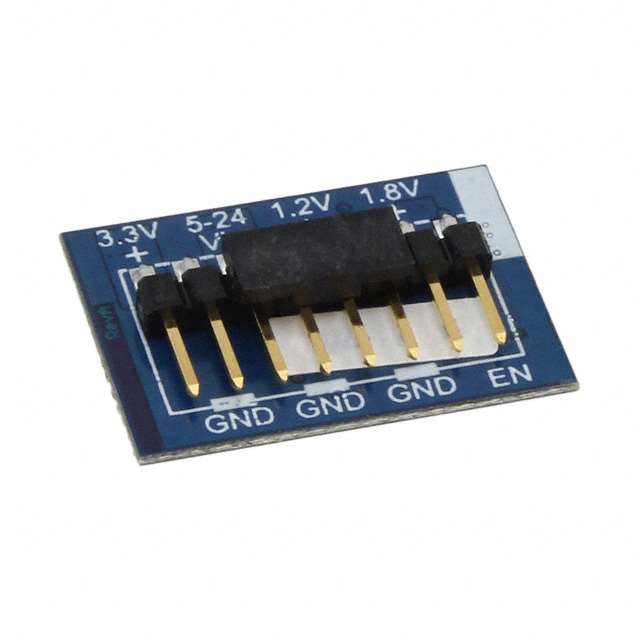

 Texas Instruments | LMR24220 LMZ10501 | DC/DC Step Down | 1 A | Non-Isolated | 3 | 1.2 V 1.8 V 3.3 V | 32 V | 5 V | Fully Populated | Board(s) | Buck | |||||||||||||||||
 Texas Instruments | 2 A | Surface Mount | 4.5 V | 1 | Adjustable | Positive | 24 V | -40 °C | 125 ¯C | 42 V | Buck | 1 MHz | 0.8 V | 28-WFBGA DSBGA | 28-DSBGA | Step-Down |
