89035 Series

Catalog

CONN RCPT 24POS EDGE MNT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Color	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions Loaded	Number of Positions	Termination	Material Flammability Rating	Features	Connector Style

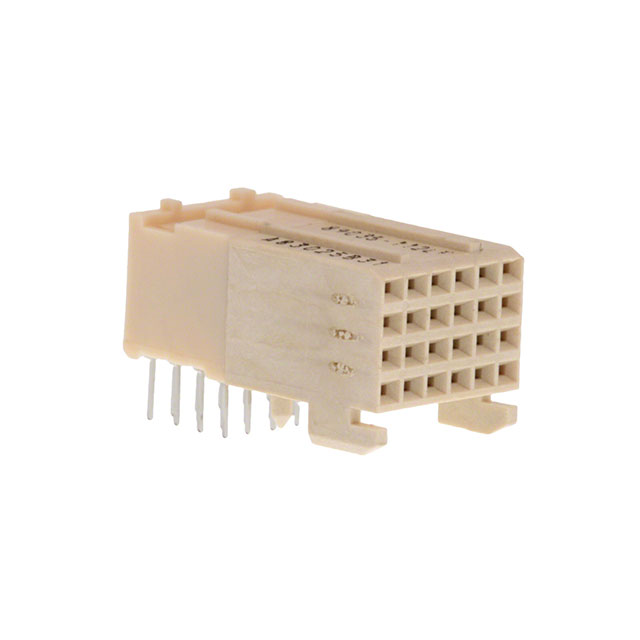

Amphenol ICC (FCI) 89035-112LF	105 ░C	-55 °C	Receptacle Female Sockets	Natural	1000 VDC	0.76 Ám	30 Áin	Gold	Board Edge Right Angle Through Hole	0.079 in	2 mm	All	24	Solder	UL94 V-0	Board Guide Spacer
Amphenol ICC (FCI) 89035-102	105 ░C	-55 °C	Receptacle Female Sockets	Natural	1000 VDC	0.76 Ám	30 Áin	Gold	Board Edge Right Angle Through Hole	0.079 in	2 mm	All	24	Solder	UL94 V-0	Board Guide Spacer
Amphenol ICC (FCI) 89035-113LF	105 ░C	-55 °C	Receptacle Female Sockets	Natural	1000 VDC	0.76 Ám	30 Áin	Gold	Board Edge Right Angle Through Hole	0.079 in	2 mm	All	24	Solder	UL94 V-0	Board Guide Spacer
Amphenol ICC (FCI) 89035-301	105 ░C	-55 °C	Receptacle Female Sockets	Natural	1000 VDC				Board Edge Right Angle Through Hole	0.079 in	2 mm	All	24	Solder	UL94 V-0	Board Guide Spacer	High Speed
