039514 Series
Manufacturer: Waldom
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

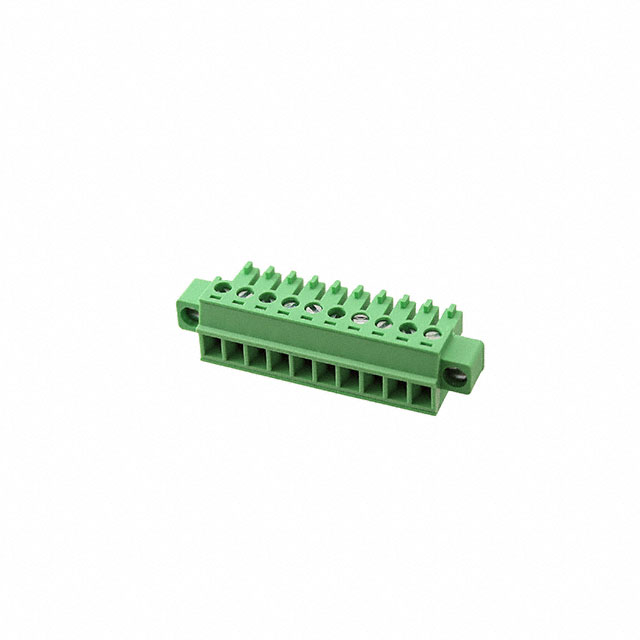

TERM BLOCK PLUG 10POS 3.81MM
| Part | Number of Levels | Type | Plug Wire Entry Angle | Wire Gauge or Range - AWG (Min) | Wire Gauge or Range - AWG (Max) | Voltage - UL | Termination Style | Current - UL | Number of Positions | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Color | Features | Positions Per Level | Contact Mating Finish | Pitch | Screw Size | Contact Material | Torque - Screw | Housing Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Waldom | 1 | Female Sockets Plug | 180 ° | 16 AWG | 30 AWG | 300 V | Screw - Rising Cage Clamp | 8 A | 10 | Free Hanging (In-Line) | -40 °C | 115 °C | Green | Mating Flange | 10 | Tin | 0.15 in | M2 | Phosphor Bronze | 0.23 Nm | Nylon 6/6 PA66 Polyamide | UL94 V-0 |
