125-2701 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SMPM MALE, STRAIGHT, SURFACE MOU
| Part | Mounting Type | Connector Style | Center Contact Material | Housing Color | Frequency - Max | Shield Termination | Fastening Type | Contact Termination | Number of Ports | Features | Connector Type | Impedance | Dielectric Material | Center Contact Plating | Body Finish | Body Material | Voltage Rating | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

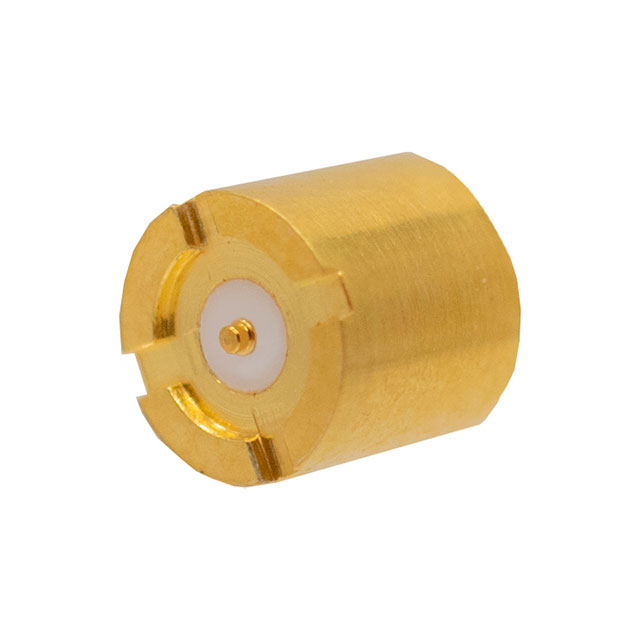

 Cinch Connectivity Solutions Johnson | Surface Mount | SMPM | Beryllium Copper | Gold | 26.5 GHz | Solder | Snap-On | Solder | 1 | Smooth Bore | Male Pin Plug | 50 Ohm | Polytetrafluoroethylene (PTFE) | Gold | Gold | Beryllium Copper | 325 V | 500 cycles | -65 °C | 165 °C |
 Cinch Connectivity Solutions Johnson | Board Edge Cutout Surface Mount | SMPM | Beryllium Copper | Gold | 65 GHz | Solder | Snap-On | Solder | 4 | Smooth Bore | Male Pin Plug | 50 Ohm | Polytetrafluoroethylene (PTFE) | Gold | Gold | Beryllium Copper Brass | 325 V | 500 cycles | -65 °C | 165 °C |

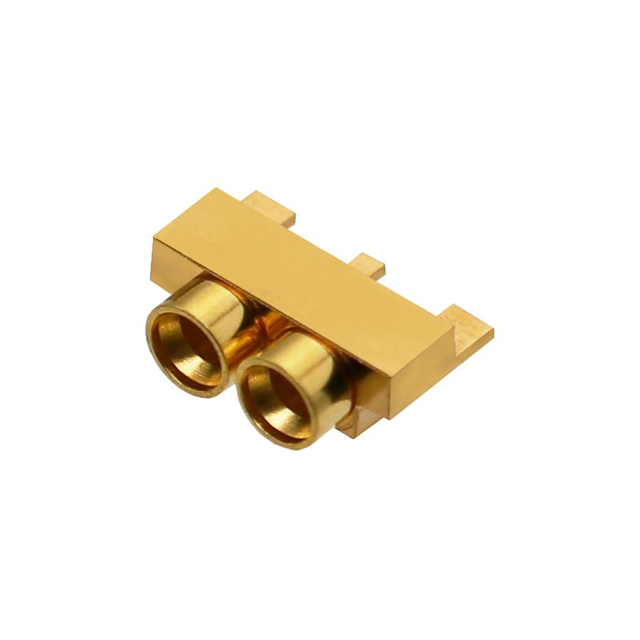

 Cinch Connectivity Solutions Johnson | Board Edge Cutout Surface Mount | SMPM | Beryllium Copper | Gold | 65 GHz | Solder | Snap-On | Solder | 2 | Smooth Bore | Male Pin Plug | 50 Ohm | Polytetrafluoroethylene (PTFE) | Gold | Gold | Beryllium Copper Brass | 325 V | 500 cycles | -65 °C | 165 °C |
