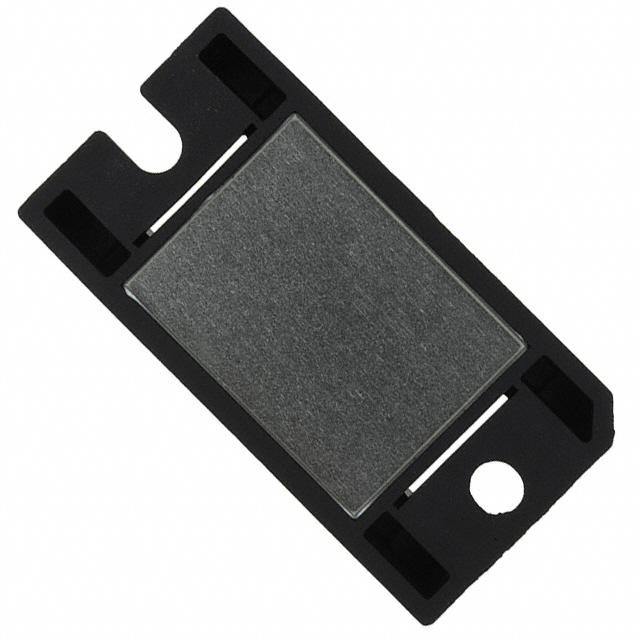

Bipolar Module-Bridge Rectifier V1A/B pk
Description
AI
The Three Phase Bridge series comes in a high variety of packages and breakdown voltages up to 2200V.
Beta
⌘K
Bipolar Module-Bridge Rectifier V1A/B pk
Bipolar Module-Bridge Rectifier V1A/B pk
| Part | Voltage - Forward (Vf) (Max) @ If [Max] | Technology | Current - Average Rectified (Io) | Supplier Device Package | Voltage - Peak Reverse (Max) | Diode Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Reverse Leakage @ Vr | Mounting Type | Voltage - Peak Reverse (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 1.13 V | Standard | 54 A | V1-A | 1.6 kV | Three Phase | -40 °C | 150 °C | 40 µA | Chassis Mount | ||
LITTELFUSE | 1.13 V | Standard | 54 A | V1-A | 1.2 kV | Three Phase | -40 °C | 150 °C | 40 µA | Chassis Mount | ||
LITTELFUSE | 1.13 V | Standard | 54 A | V1-A | 1.8 kV | Three Phase | -40 °C | 150 °C | 40 µA | Chassis Mount | ||
LITTELFUSE | 1.13 V | Standard | 54 A | V1-A | Three Phase | -40 °C | 150 °C | 40 µA | Chassis Mount | 2 kV | ||
LITTELFUSE | 1.13 V | Standard | 54 A | V1-A | 800 V | Three Phase | -40 °C | 150 °C | 40 µA | Chassis Mount | ||
LITTELFUSE | 1.13 V | Standard | 60 A | V1A-PAK | Three Phase | -40 °C | 150 °C | 40 µA | Chassis Mount | 2.2 kV | V1A-PAK |
