QTLP63 Series

Catalog

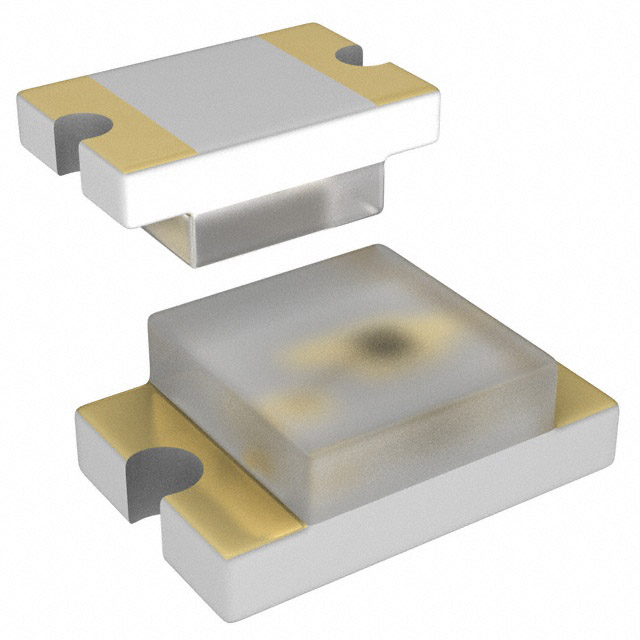

LED RED CLEAR 0805 SMD

Part	Lens Style	Lens Transparency	Lens Color	Millicandela Rating	Mounting Type	Current - Test	Supplier Device Package	Package / Case	Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max]	Configuration	Lens Size [y]	Lens Size [x]	Wavelength - Dominant	Wavelength - Peak
ON Semiconductor QTLP630CRTR	Rectangle with Flat Top	Clear	Colorless	40 mcd	Surface Mount	20 mA	0805	0805	Red	2 V	140 °	2 mm	1.25 mm	1.2 mm	Standard	1.25 mm	1.4 mm	624 nm	630 nm
ON Semiconductor QTLP630CYTR	Rectangle with Flat Top	Clear	Colorless	40 mcd	Surface Mount	20 mA	0805	0805	Yellow	2 V	140 °	2 mm	1.25 mm	1.2 mm	Standard	1.25 mm	1.4 mm	589 nm	590 nm
ON Semiconductor QTLP630C2TR	Rectangle with Flat Top	Clear	Colorless	10 mcd	Surface Mount	20 mA	0805	0805	Red	2 V	140 °	2 mm	1.25 mm	1.2 mm	Standard	1.25 mm	1.4 mm	630 nm	635 nm
