PMV1 Series

Catalog

RING TONGUE TERMINAL, M5, #10, 18 AWG, 1 MM², RED

Part	Length - Overall [x]	Length - Overall [x]	Contact Material	Termination	Mounting Type	Material - Insulation	Insulation Diameter	Insulation Diameter	Color	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges	Features	Insulation Diameter [diameter]	Insulation Diameter [diameter]

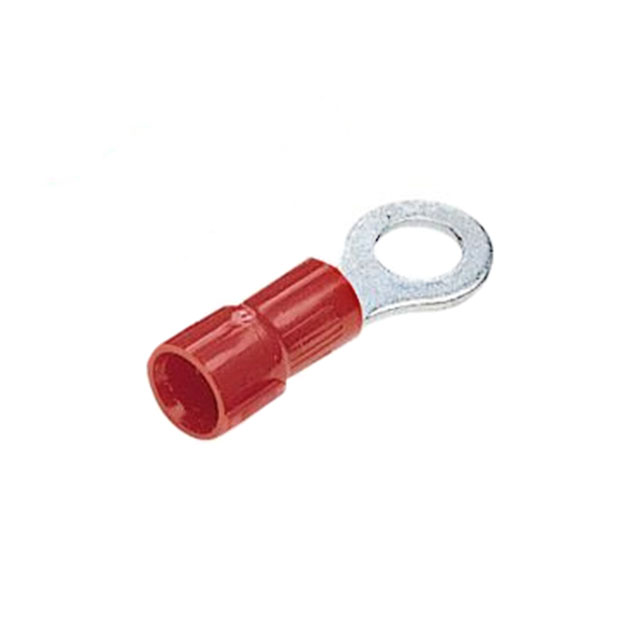

Panduit Corp PMV1-5RB-3K	0.88 in	22.35 mm	Copper	Crimp	Free Hanging (In-Line)	Vinyl	3.81 mm	0.15 in	Red	M5 Stud	8.89 mm	0.35 in	Circular	0.031 in	0.79 mm	22 AWG	17.5 AWG	Insulated	Tin

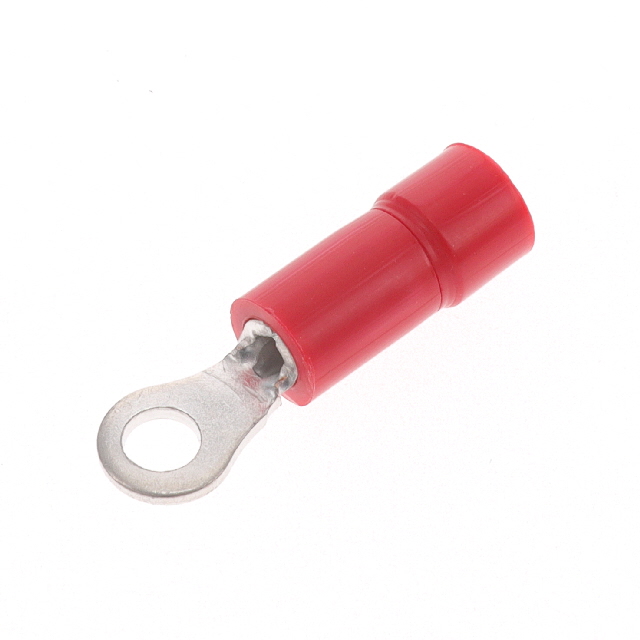

Panduit Corp PMV1-3RB-XY	0.82 in	20.83 mm	Copper	Crimp	Free Hanging (In-Line)	Vinyl			Red	M3 Stud			Circular	0.032 in	0.81 mm	22 AWG	17.5 AWG	Insulated	Tin	0.23 in	5.84 mm	Butted Seam Serrated Termination	0.16 in	4.06 mm
