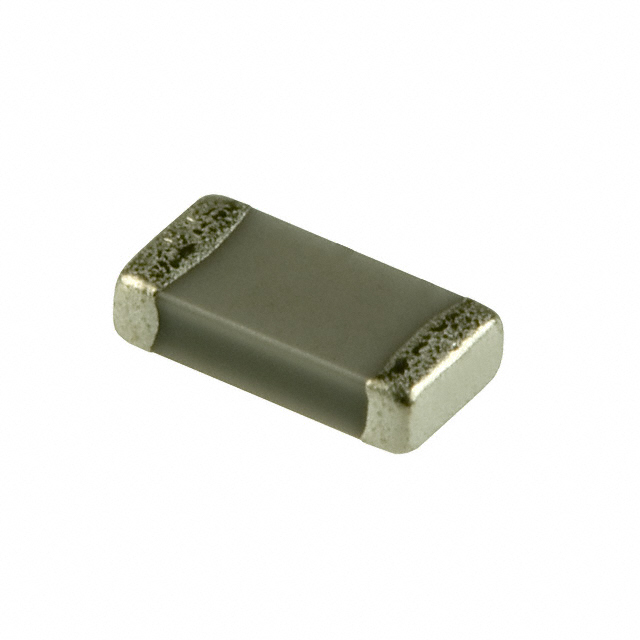

ECJ-3VB Series

Catalog

CAP CER 0.47UF 16V X7R 1206

Part	Capacitance	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Temperature Coefficient	Voltage - Rated
Panasonic Electronic Components ECJ-3VB1C474K	0.47 µF	MLCC Surface Mount	0.063 "	0.126 "	3.2 mm	1.6 mm	General Purpose	0.037 in	0.95 mm	10 %	-55 C	125 °C	1206 (3216 Metric)	X7R	16 V
Panasonic Electronic Components ECJ-3VB1E224K	0.22 µF	MLCC Surface Mount	0.063 "	0.126 "	3.2 mm	1.6 mm	General Purpose	0.037 in	0.95 mm	10 %	-55 C	125 °C	1206 (3216 Metric)	X7R	25 VDC
Panasonic Electronic Components ECJ-3VB1H104K	100000 pF	MLCC Surface Mount	0.063 "	0.126 "	3.2 mm	1.6 mm	General Purpose	0.037 in	0.95 mm	10 %	-55 C	125 °C	1206 (3216 Metric)	X7R	50 VDC
Panasonic Electronic Components ECJ-3VB1C184K	0.18 µF	MLCC Surface Mount	0.063 "	0.126 "	3.2 mm	1.6 mm	General Purpose	0.037 in	0.95 mm	10 %	-55 C	125 °C	1206 (3216 Metric)	X7R	16 V
Panasonic Electronic Components ECJ-3VB1E154K	0.15 ÁF	MLCC Surface Mount	0.063 "	0.126 "	3.2 mm	1.6 mm	General Purpose	0.037 in	0.95 mm	10 %	-55 C	125 °C	1206 (3216 Metric)	X7R	25 VDC
Panasonic Electronic Components ECJ-3VB1E184K	0.18 µF	MLCC Surface Mount	0.063 "	0.126 "	3.2 mm	1.6 mm	General Purpose	0.037 in	0.95 mm	10 %	-55 C	125 °C	1206 (3216 Metric)	X7R	25 VDC
