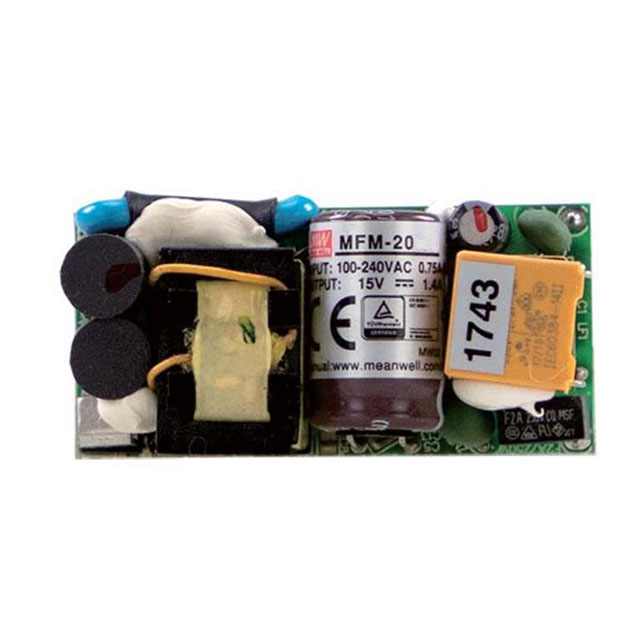

MFM-20 Series

Catalog

AC/DC CONVERTER 5V 20W

Part	Load Regulation	Line Regulation	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Voltage - Output 1	Features	Power (Watts)	Type	Efficiency	Mounting Type	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Applications
MEAN WELL USA Inc. MFM-20-5	0.5 %	0.5 %	CB CE cURus EAC TUV	80 VAC	264 VAC	1	5 V	Universal Input	20 W	Open Frame	85 %	Through Hole	4-DIP Module	23 mm	49 mm	0.94 in	0.91 in	1.93 in	23.8 mm	4 A	-35 °C	85 °C	Household Appliances Medical
MEAN WELL USA Inc. MFM-20-3.3	0.5 %	0.3 %	CB CE cURus EAC TUV	80 VAC	264 VAC	1	3.3 V	Universal Input	15 W	Open Frame	81 %	Through Hole	4-DIP Module	23 mm	49 mm	0.94 in	0.91 in	1.93 in	23.8 mm	4.5 A	-35 °C	85 °C	Household Appliances Medical

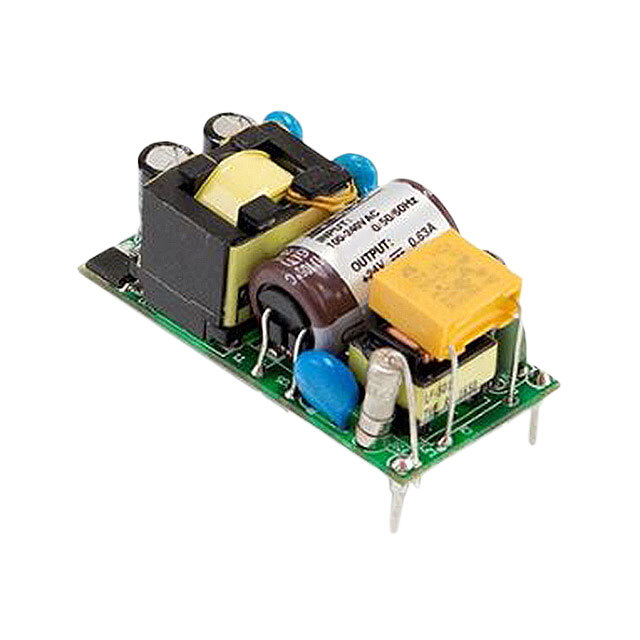

MEAN WELL USA Inc. MFM-20-15	0.5 %	0.3 %	CB CE cURus EAC TUV	80 VAC	264 VAC	1	15 V	Universal Input	21 W	Open Frame	87 %	Through Hole	4-DIP Module	23 mm	49 mm	0.94 in	0.91 in	1.93 in	23.8 mm	1.4 A	-35 °C	85 °C	Household Appliances Medical
MEAN WELL USA Inc. MFM-20-12	0.5 %	0.3 %	CB CE cURus EAC TUV	80 VAC	264 VAC	1	12 V	Universal Input	22 W	Open Frame	85.5 %	Through Hole	4-DIP Module	23 mm	49 mm	0.94 in	0.91 in	1.93 in	23.8 mm	1.8 A	-35 °C	85 °C	Household Appliances Medical
