745-058 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 58POS 0.100

Part	Material - Insulation	Termination Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Type	Contact Finish	Card Type	Card Thickness [Max]	Card Thickness [Min]	Read Out	Contact Material	Pitch	Pitch	Number of Positions	Color	Gender	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 745-058-540-106	Polyester Thermoplastic	1	Through Hole	30 Áin	0.76 Ám	58	Press-Fit Wire Wrap	-40 C	105 ░C	1	Cantilever	Gold	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Copper Alloy	0.1 "	2.54 mm	58	Black	Female
EDAC Inc. 745-058-545-201	Polyester Thermoplastic		Through Hole	30 Áin	0.76 Ám	29	Press-Fit	-40 C	105 ░C		Cantilever	Gold	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Copper Alloy	0.1 "	2.54 mm	58	Black	Female	2	2

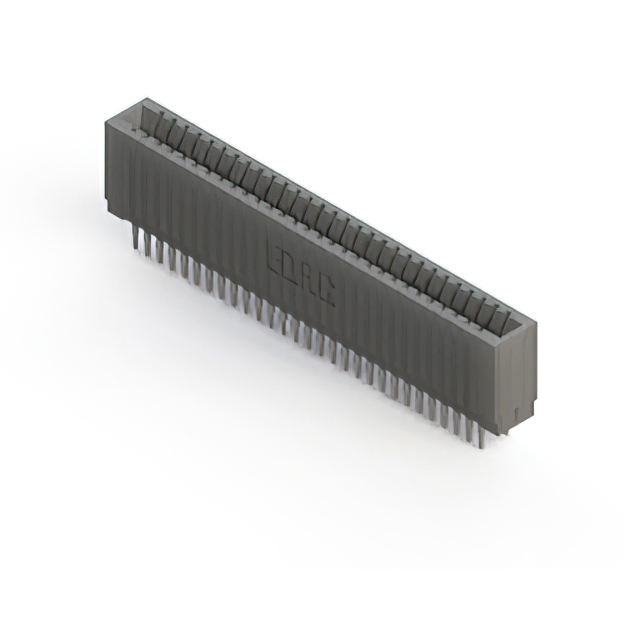

EDAC Inc. 745-058-541-201	Polyester Thermoplastic		Through Hole	30 Áin	0.76 Ám	29	Press-Fit Wire Wrap	-40 C	105 ░C		Cantilever	Gold	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Copper Alloy	0.1 "	2.54 mm	58	Black	Female	2	2

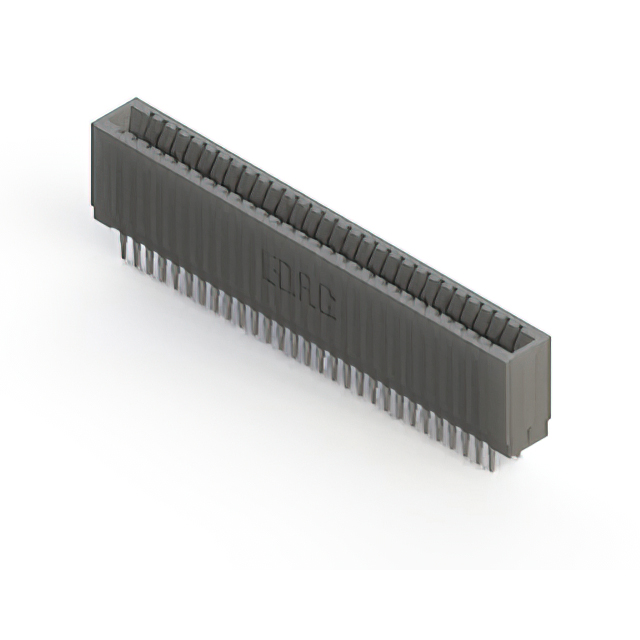

EDAC Inc. 745-058-540-201	Polyester Thermoplastic		Through Hole	30 Áin	0.76 Ám	29	Press-Fit Wire Wrap	-40 C	105 ░C		Cantilever	Gold	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Copper Alloy	0.1 "	2.54 mm	58	Black	Female	2	2
EDAC Inc. 745-058-522-201	Polyester Thermoplastic		Through Hole	30 Áin	0.76 Ám	29	Press-Fit	-40 C	105 ░C		Cantilever	Gold	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Copper Alloy	0.1 "	2.54 mm	58	Black	Female	2	2

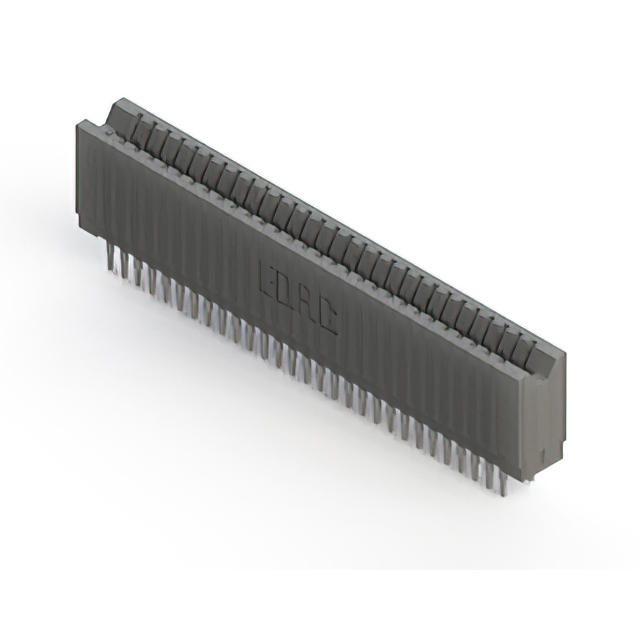

EDAC Inc. 745-058-522-206	Polyester Thermoplastic		Through Hole	30 Áin	0.76 Ám	29	Press-Fit	-40 C	105 ░C		Cantilever	Gold	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Copper Alloy	0.1 "	2.54 mm	58	Black	Female	2	2
EDAC Inc. 745-058-545-206	Polyester Thermoplastic		Through Hole	30 Áin	0.76 Ám	29	Press-Fit	-40 C	105 ░C		Cantilever	Gold	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Copper Alloy	0.1 "	2.54 mm	58	Black	Female	2	2
