794633 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER SMD 16POS 3MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Voltage Rating	Insulation Material	Contact Finish - Mating	Contact Shape	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Number of Rows [custom]	Shrouding	Features	Current Rating (Amps)	Fastening Type	Mounting Type	Contact Type	Termination	Pitch - Mating	Pitch - Mating	Style	Connector Type	Number of Positions

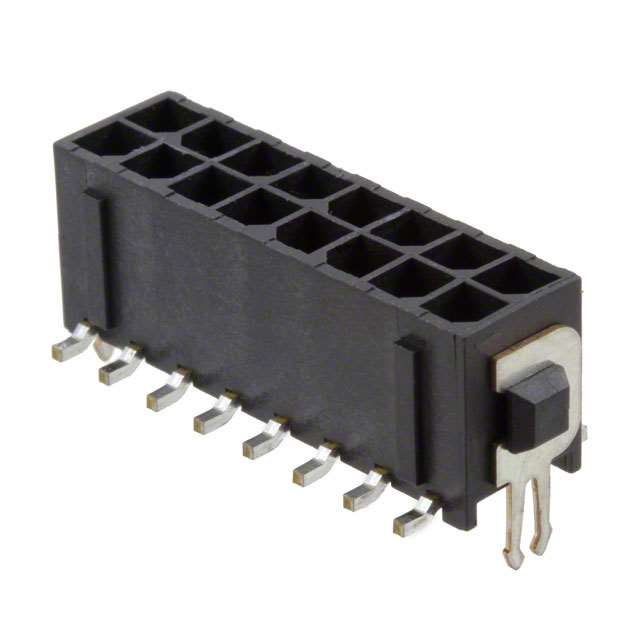

TE Connectivity AMP Connectors 1-794633-6	General Purpose	2.54 µm	100 µin	Brass	250 V	Nylon Polyamide (PA)	Tin-Lead	Square	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	All	-40 C	105 ░C	Black	9.25 mm	0.364 in	Tin-Lead	2	Shrouded - 4 Wall	Board Lock Pick and Place	Varies by Wire Gauge	Locking Ramp	Surface Mount	Male Pin	Solder	3 mm	0.118 in	Board to Cable/Wire	Header	16

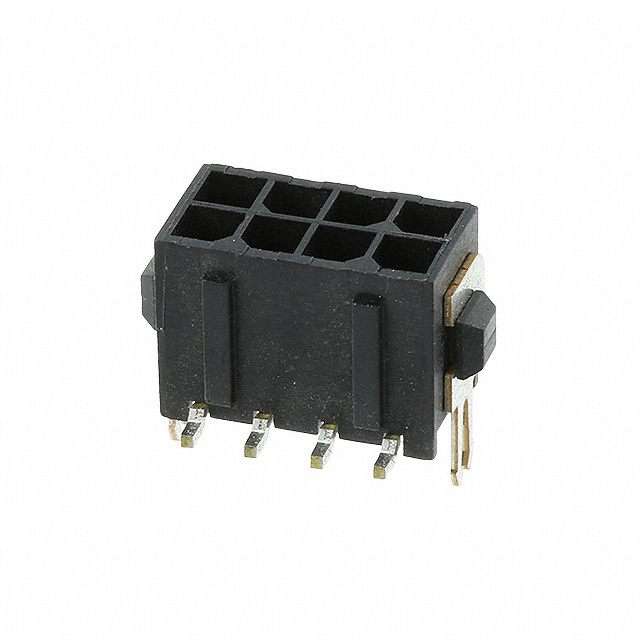

TE Connectivity AMP Connectors 794633-8	General Purpose	2.54 µm	100 µin	Brass	250 V	Nylon Polyamide (PA)	Tin-Lead	Square	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	All	-40 C	105 ░C	Black	9.25 mm	0.364 in	Tin-Lead	2	Shrouded - 4 Wall	Board Lock Pick and Place	Varies by Wire Gauge	Locking Ramp	Surface Mount	Male Pin	Solder	3 mm	0.118 in	Board to Cable/Wire	Header	8
TE Connectivity AMP Connectors 794633-6	General Purpose	2.54 µm	100 µin	Brass	250 V	Nylon Polyamide (PA)	Tin-Lead	Square	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	All	-40 C	105 ░C	Black	9.25 mm	0.364 in	Tin-Lead	2	Shrouded - 4 Wall	Board Lock Pick and Place	Varies by Wire Gauge	Locking Ramp	Surface Mount	Male Pin	Solder	3 mm	0.118 in	Board to Cable/Wire	Header	6

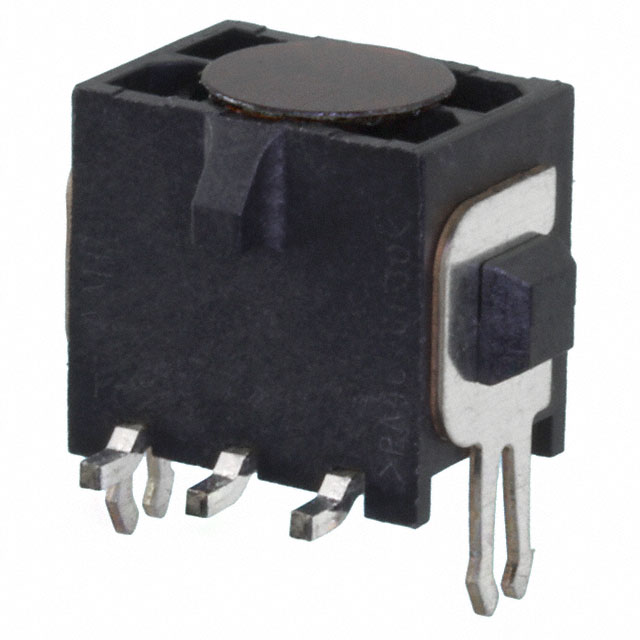

TE Connectivity AMP Connectors 794633-4	General Purpose	2.54 µm	100 µin	Brass	250 V	Nylon Polyamide (PA)	Tin-Lead	Square	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	All	-40 C	105 ░C	Black	9.25 mm	0.364 in	Tin-Lead	2	Shrouded - 4 Wall	Board Lock Pick and Place	Varies by Wire Gauge	Locking Ramp	Surface Mount	Male Pin	Solder	3 mm	0.118 in	Board to Cable/Wire	Header	4

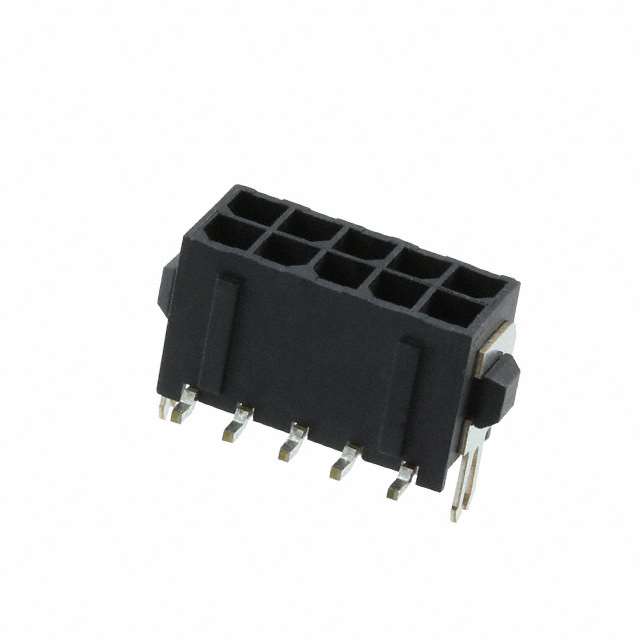

TE Connectivity AMP Connectors 1-794633-0	General Purpose	2.54 µm	100 µin	Brass	250 V	Nylon Polyamide (PA)	Tin-Lead	Square	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	All	-40 C	105 ░C	Black	9.25 mm	0.364 in	Tin-Lead	2	Shrouded - 4 Wall	Board Lock Pick and Place	Varies by Wire Gauge	Locking Ramp	Surface Mount	Male Pin	Solder	3 mm	0.118 in	Board to Cable/Wire	Header	10
TE Connectivity AMP Connectors 4-794633-0	General Purpose	2.54 µm	100 µin	Brass	250 V	Nylon Polyamide (PA)		Square	UL94 V-0	100 çin	2.54 çm	0.118 in	3 mm	All	-40 C	105 ░C	Black	9.25 mm	0.364 in	Tin	2	Shrouded - 4 Wall	Board Lock Pick and Place	Varies by Wire Gauge	Locking Ramp	Surface Mount	Male Pin	Solder	3 mm	0.118 in	Board to Cable/Wire	Header	10
