39-138 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH PUSH SPST-NO 0.5A 115V
| Part | Electrical Life | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Actuator Type | Panel Cutout Dimensions [diameter] | Switch Function | Circuit | Features | Termination Style | Mounting Type | Actuator Marking | Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

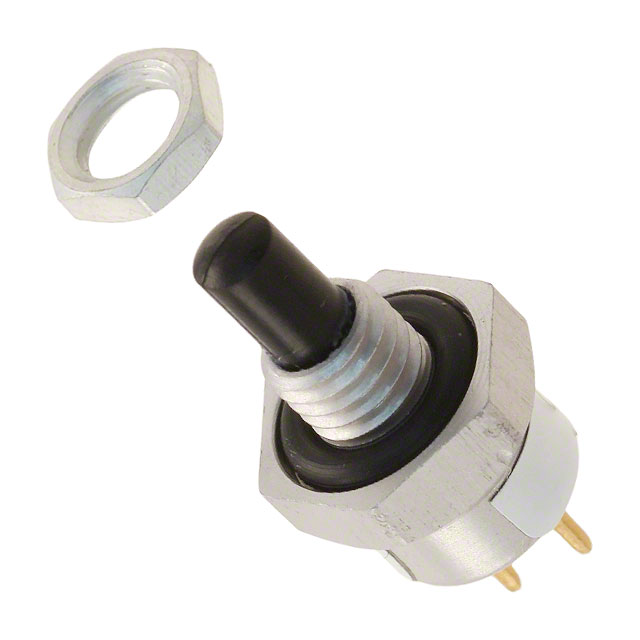

 Grayhill Inc. | 250000 Cycles | 500 mA | 85 °C | -40 C | 115 V | Plunger Round | 4.37 mm | Off-Mom | SPST-NO | Sealed - Fully | PC Pin | Panel Mount Rear | No Marking | Standard | Black |

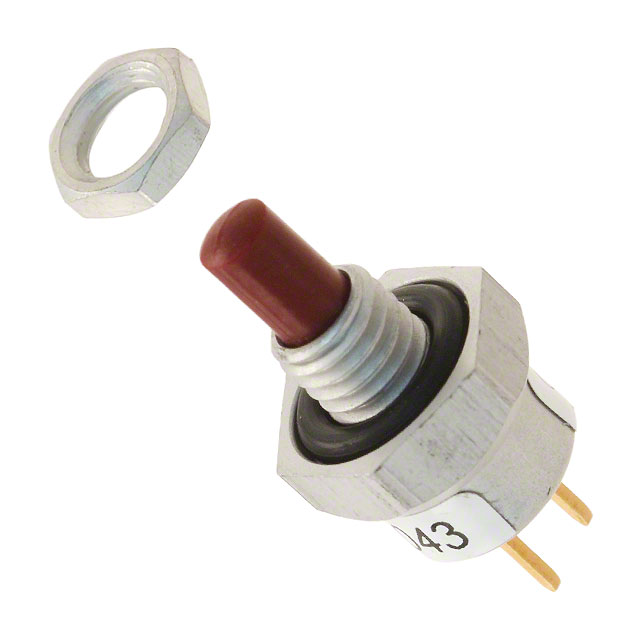

 Grayhill Inc. | 250000 Cycles | 500 mA | 85 °C | -40 C | 115 V | Plunger Round | 4.37 mm | Off-Mom | SPST-NO | Sealed - Fully | PC Pin | Panel Mount Rear | No Marking | Standard | Red |
