2425753 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

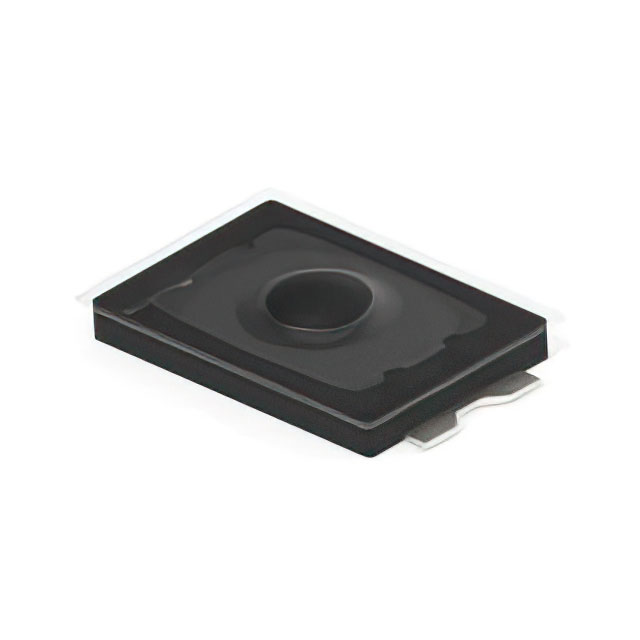

SWITCH TACTILE SPST-NO 0.02A 15V
| Part | Mechanical Life | Switch Travel | Circuit | Ingress Protection | Illumination | Actuator Height off PCB, Vertical | Termination Style | Actuator Orientation | Actuator Type | Switch Function | Contact Rating @ Voltage [x] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Outline [x] | Outline [y] | Actuator Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 500000 Cycles | 0.13 mm | SPST-NO | IP67 - Dust Tight Waterproof | Non-Illuminated | 0.6 mm | SMD (SMT) Tab | Top Actuated | Round Button | Off-Mom | 0.02 A 15 VDC | Surface Mount | 85 °C | -40 °C | 3 mm | 2 mm | Polyamide (PA9T) Nylon 9T |
