ADC3423 Series
Manufacturer: Texas Instruments
Beta
⌘K

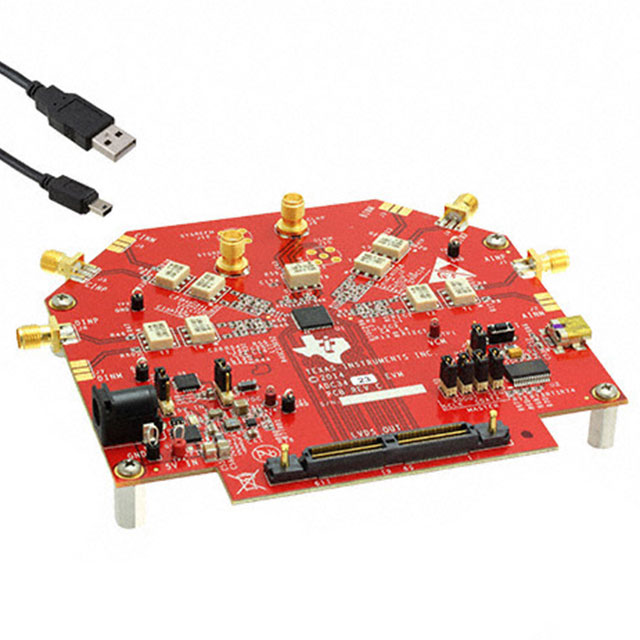

EVALUATION MODULE ADC3423
| Part | Number of Bits | Supplied Contents | Utilized IC / Part | Power (Typ) @ Conditions | Data Interface | Input Range | Sampling Rate (Per Second) | Number of A/D Converters | Mounting Type | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Inputs | Architecture | Reference Type | Package / Case | Features | Input Type | Supplier Device Package | Configuration | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 12 bits | Board(s) | ADC3423 | 288 mW | LVDS - Serial | 2 Vpp | 80 M | 4 | |||||||||||||||
 Texas Instruments | 12 bits | LVDS - Serial | 80 M | 4 | Surface Mount | 1.9 V | 1.7 V | 85 °C | -40 °C | 4 | Pipelined | External Internal | 56-VFQFN Exposed Pad | Simultaneous Sampling | Differential | 56-QFN (8x8) | ADC | 1.7 V | 1.9 V | ||||
 Texas Instruments | Surface Mount | 56-VFQFN Exposed Pad | 56-QFN (8x8) |
