391-034 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 34POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Contact Material	Gender	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row [custom]	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Features	Termination	Pitch	Pitch	Number of Positions [custom]	Color	Termination Rows	Number of Positions/Bay/Row	Number of Rows

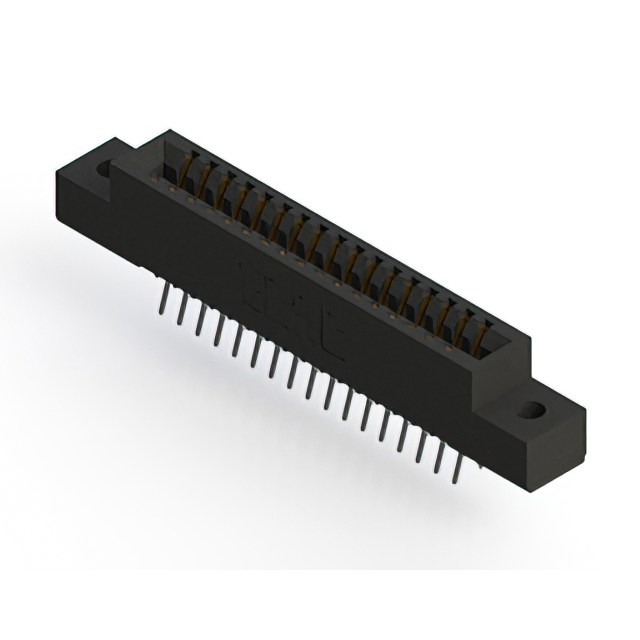

EDAC Inc. 391-034-556-202	2	Polyester Thermoplastic	2	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	17	Dual	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	-40 C	105 ░C	Board Edge Straddle Mount	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows	Card Extender	Solder	0.1 "	2.54 mm	34	Black
EDAC Inc. 391-034-521-108		Polyester Thermoplastic		Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm		Single	4-40 Flush Mount Threaded Insert Top Opening			-40 C	105 ░C	Through Hole	Gold	Non Specified - Single Edge	0.25 Ám	10 Áin	Semi Bellows		Solder	0.1 "	2.54 mm	34	Black	1	34	1
EDAC Inc. 391-034-522-108		Polyester Thermoplastic		Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm		Single	4-40 Flush Mount Threaded Insert Top Opening			-40 C	105 ░C	Through Hole	Gold	Non Specified - Single Edge	0.25 Ám	10 Áin	Semi Bellows		Solder	0.1 "	2.54 mm	34	Black	1	34	1
EDAC Inc. 391-034-522-104		Polyester Thermoplastic		Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm		Single	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	-40 C	105 ░C	Through Hole	Gold	Non Specified - Single Edge	0.25 Ám	10 Áin	Semi Bellows		Solder	0.1 "	2.54 mm	34	Black	1	34	1
EDAC Inc. 391-034-524-208	2	Polyester Thermoplastic	2	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	17	Dual	4-40 Flush Mount Threaded Insert Top Opening			-40 C	105 ░C	Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows		Solder	0.1 "	2.54 mm	34	Black

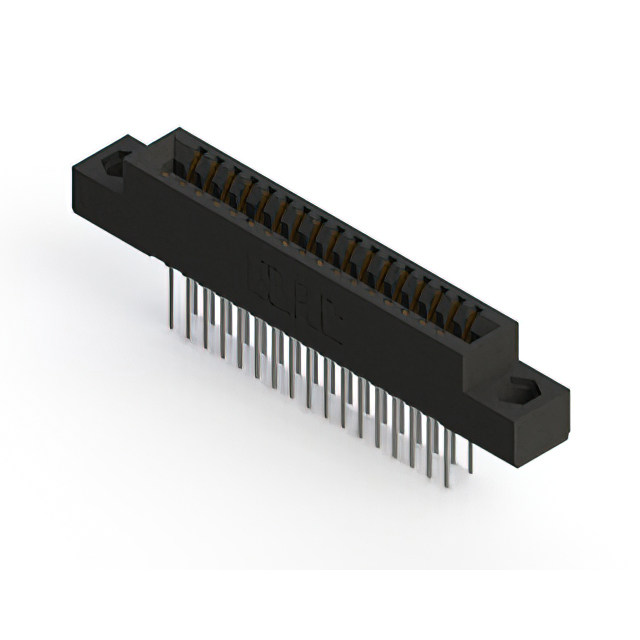

EDAC Inc. 391-034-522-204	2	Polyester Thermoplastic	2	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	17	Dual	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	-40 C	105 ░C	Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows		Solder	0.1 "	2.54 mm	34	Black

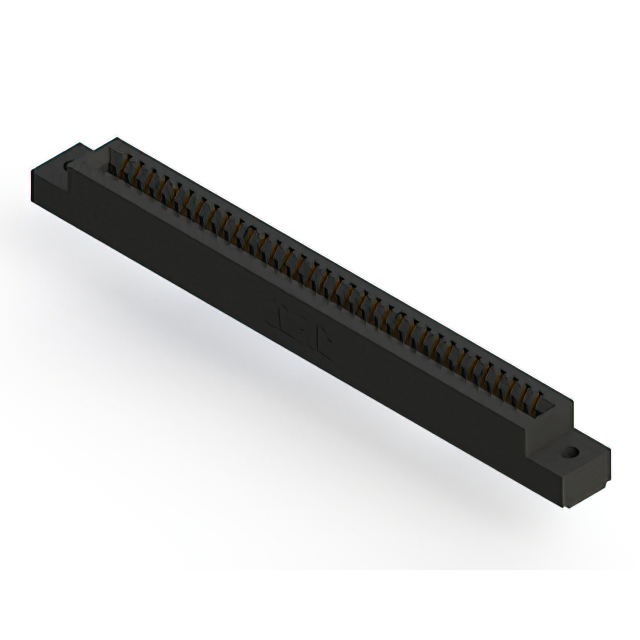

EDAC Inc. 391-034-524-102		Polyester Thermoplastic		Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm		Single	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	-40 C	105 ░C	Through Hole	Gold	Non Specified - Single Edge	0.25 Ám	10 Áin	Semi Bellows		Solder	0.1 "	2.54 mm	34	Black	1	34	1
EDAC Inc. 391-034-520-202	2	Polyester Thermoplastic	2	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	17	Dual	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	-40 C	105 ░C	Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows		Solder	0.1 "	2.54 mm	34	Black

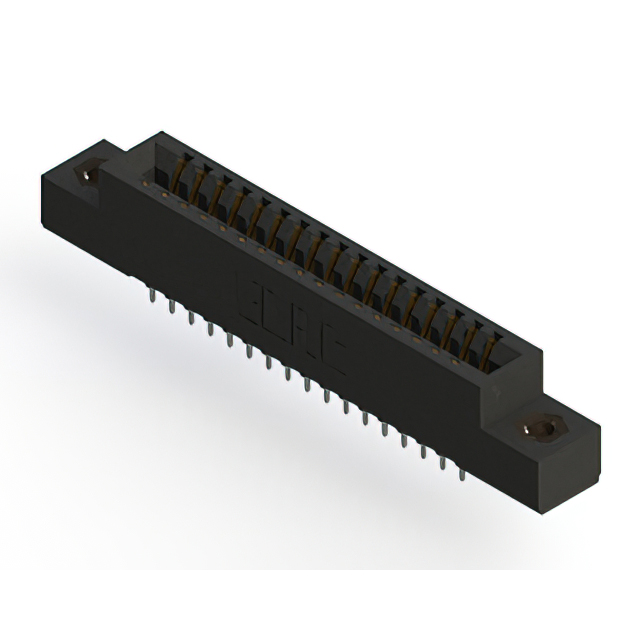

EDAC Inc. 391-034-520-207	2	Polyester Thermoplastic	2	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	17	Dual	Flush Mount M3 Threaded Insert Top Opening			-40 C	105 ░C	Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows		Solder	0.1 "	2.54 mm	34	Black
EDAC Inc. 391-034-556-207	2	Polyester Thermoplastic	2	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	17	Dual	Flush Mount M3 Threaded Insert Top Opening			-40 C	105 ░C	Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows	Card Extender	Solder	0.1 "	2.54 mm	34	Black
