182 Series

Manufacturer: Serpac

Catalog

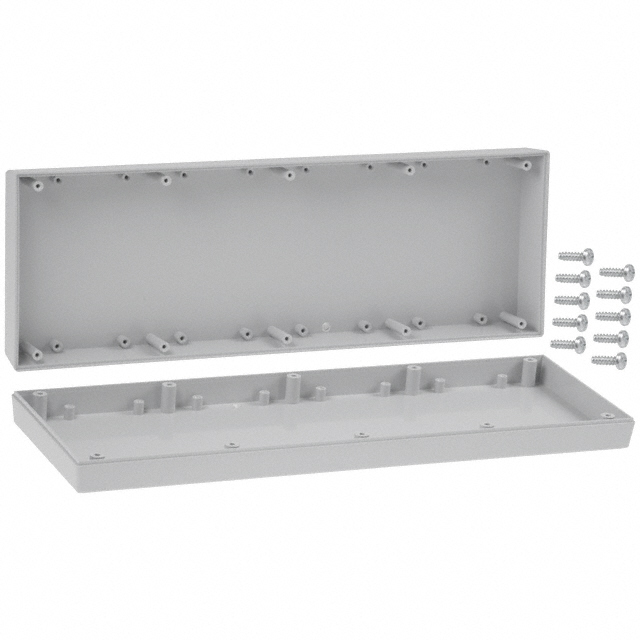

BOX ABS GRAY 14.21"L X 4.88"W

Part	Weight	Weight	Ratings	Material Flammability Rating	Area (L x W)	Area (L x W)	Container Type	Design	Height [z]	Height [z]	Thickness	Thickness	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material	Color
Serpac 182,GY	420.93 g	0.928 lb	IP40 NEMA 1	UL94 HB	69.3 in²	447 cm²	Box	Hand Held Split Sides	50.8 mm	2 in	2.54 mm	0.1 in	PCB Supports	123.95 mm	4.88 in	14.21 in	360.93 mm	ABS Plastic	Gray

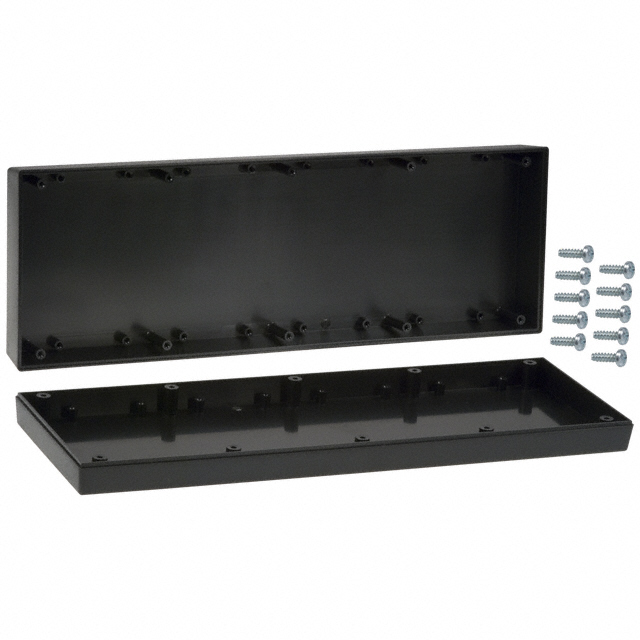

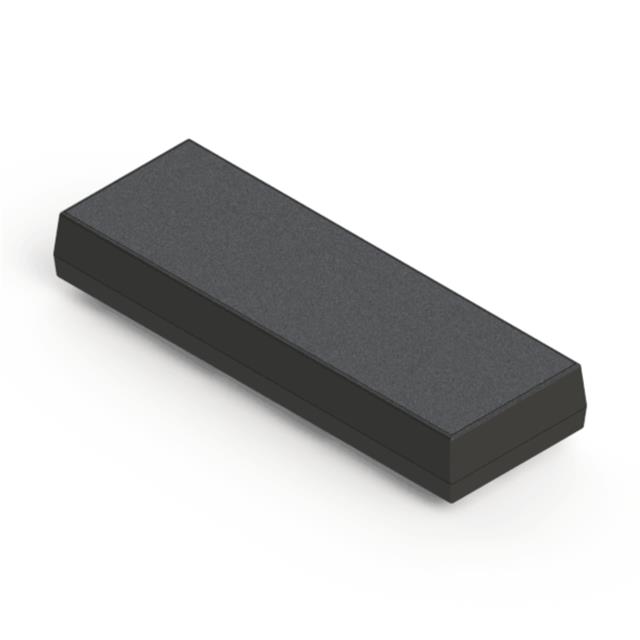

Serpac 182,BK	420.93 g	0.928 lb	IP40 NEMA 1	UL94 HB	69.3 in²	447 cm²	Box	Hand Held Split Sides	50.8 mm	2 in	2.54 mm	0.1 in	PCB Supports	123.95 mm	4.88 in	14.21 in	360.93 mm	ABS Plastic	Black

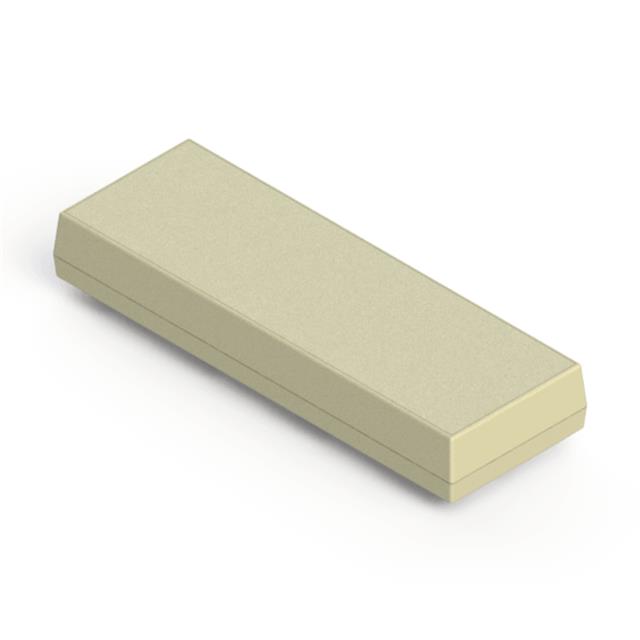

Serpac 182,AL	420.93 g	0.928 lb	IP40 NEMA 1	UL94 HB	69.3 in²	447 cm²	Box	Hand Held Split Sides	50.8 mm	2 in	2.54 mm	0.1 in	PCB Supports	123.95 mm	4.88 in	14.21 in	360.93 mm	ABS Plastic	Almond
