82723 Series
Manufacturer: Belden Inc.
Beta
⌘K

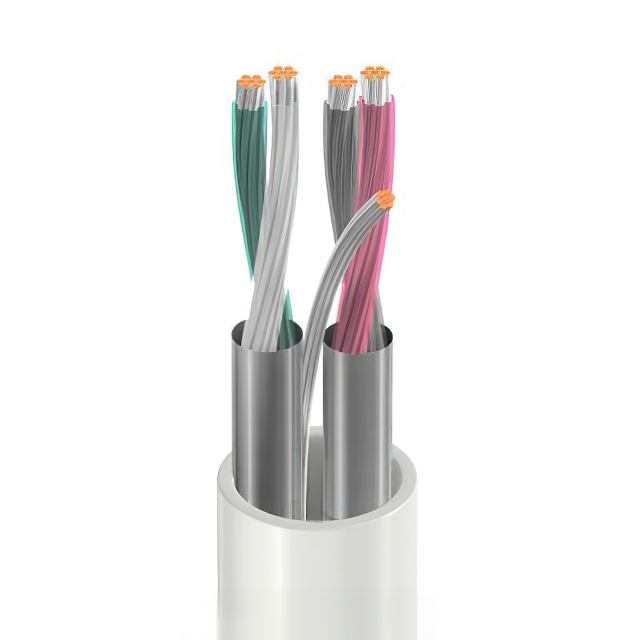

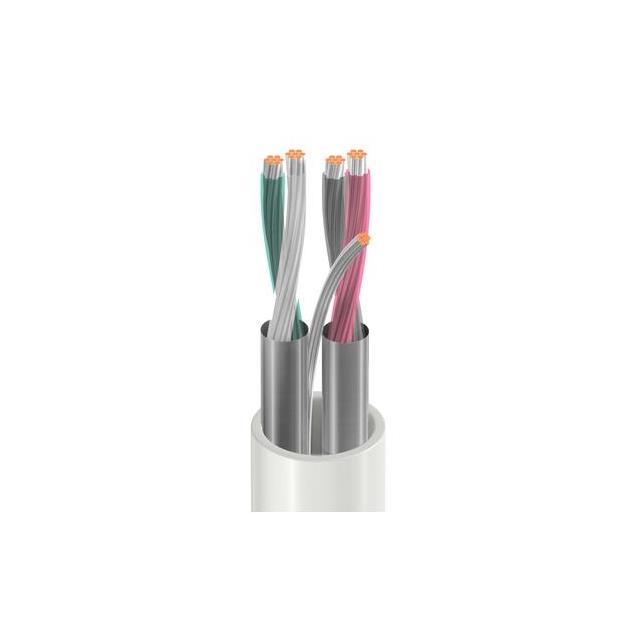

MULTI-PAIR 4COND 22AWG NAT
| Part | Shield Material | Shield Coverage | Conductor Insulation | Voltage | Jacket (Insulation) Material | Conductor Material | Cable Type | Shield Type | Length [x] | Length [x] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Wire Gauge | Length | Length | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Copper Tinned | Multi-Pair | Foil | 2000 ft | 609.6 m | Drain Wire | -20 ░C | 90 °C | Audio Control Instrumentation | 0.017 " | 0.432 mm | 3.89 mm | 0.153 in | Natural | 30 AWG | 7 | 4 | 22 AWG | |||
 Belden Inc. | Aluminum | 100 % | Fluorinated Ethylene-Propylene (FEP) | Low Smoke Poly-Vinyl Chloride (LSPVC) | Copper Tinned | Multi-Pair | Foil | Drain Wire | -20 ░C | 90 °C | 0.017 " | 0.432 mm | 3.89 mm | 0.153 in | Natural | 30 AWG | 7 | 4 | 22 AWG | 152.4 m | 500 ft | UL Style CMP | ||||
Belden Inc. | Aluminum | 100 % | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Copper Tinned | Multi-Pair | Foil | Drain Wire | -20 ░C | 90 °C | Audio Control Instrumentation | 0.017 " | 0.432 mm | 3.89 mm | 0.153 in | Natural | 30 AWG | 7 | 4 | 22 AWG | |||||
 Belden Inc. | Aluminum | 100 % | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Copper Tinned | Multi-Pair | Foil | Drain Wire | -20 ░C | 90 °C | Audio Control Instrumentation | 0.017 " | 0.432 mm | 3.89 mm | 0.153 in | Natural | 30 AWG | 7 | 4 | 22 AWG | 304.8 m | 1000 ft |
