63453 Series

Catalog

CONN RECEPT 14POS 2MM STR DL PCB

...

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Mounting Type	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Connector Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Material Flammability Rating	Fastening Type	Current Rating (Amps)	Insulation Color	Insulation Height	Insulation Height	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Insulation Material	Number of Positions
Amphenol ICC (FCI) 63453-014LF	0.079 in	2 mm	Female Socket	Through Hole	Solder	0.079 in	2 mm	Square	Receptacle	Gold	2.5 mm	0.098 in	Tin	0.203 Ám	8 Áin	General Purpose Industrial Medical	UL94 V-0	Push-Pull	2 A	Black	0.177 in	4.5 mm	Phosphor Bronze	-55 °C	125 °C	All	2	60 µin	1.52 µm	200 V	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	14
Amphenol ICC (FCI) 63453-128	0.079 in	2 mm	Female Socket	Through Hole	Solder	0.079 in	2 mm	Square	Receptacle	Gold	2.5 mm	0.098 in	Tin	0.76 Ám	30 Áin	General Purpose Industrial Medical	UL94 V-0	Push-Pull	2 A	Black	0.177 in	4.5 mm	Phosphor Bronze	-55 °C	125 °C	All	2	60 µin	1.52 µm	200 V	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	28
Amphenol ICC (FCI) 63453-314	0.079 in	2 mm	Female Socket	Through Hole	Solder	0.079 in	2 mm	Square	Receptacle	Gold	2.5 mm	0.098 in	Tin	0.38 µm	15 µin	General Purpose Industrial Medical	UL94 V-0	Push-Pull	2 A	Black	0.177 in	4.5 mm	Phosphor Bronze	-55 °C	125 °C	All	2	60 µin	1.52 µm	200 V	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	14
Amphenol ICC (FCI) 63453-310	0.079 in	2 mm	Female Socket	Through Hole	Solder	0.079 in	2 mm	Square	Receptacle	Gold	2.5 mm	0.098 in	Tin	0.38 µm	15 µin	General Purpose Industrial Medical	UL94 V-0	Push-Pull	2 A	Black	0.177 in	4.5 mm	Phosphor Bronze	-55 °C	125 °C	All	2	60 µin	1.52 µm	200 V	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	10

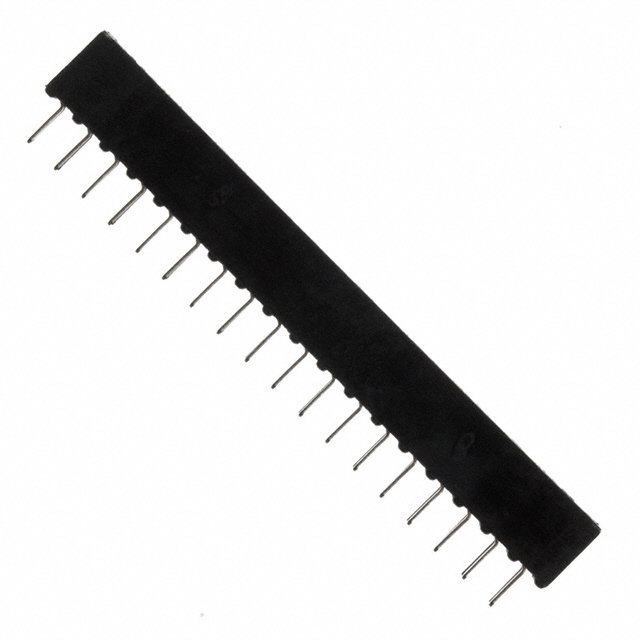

Amphenol ICC (FCI) 63453-136LF	0.079 in	2 mm	Female Socket	Through Hole	Solder	0.079 in	2 mm	Square	Receptacle	Gold	2.5 mm	0.098 in	Tin	0.76 Ám	30 Áin	General Purpose Industrial Medical	UL94 V-0	Push-Pull	2 A	Black	0.177 in	4.5 mm	Phosphor Bronze	-55 °C	125 °C	All	2	60 µin	1.52 µm	200 V	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	36

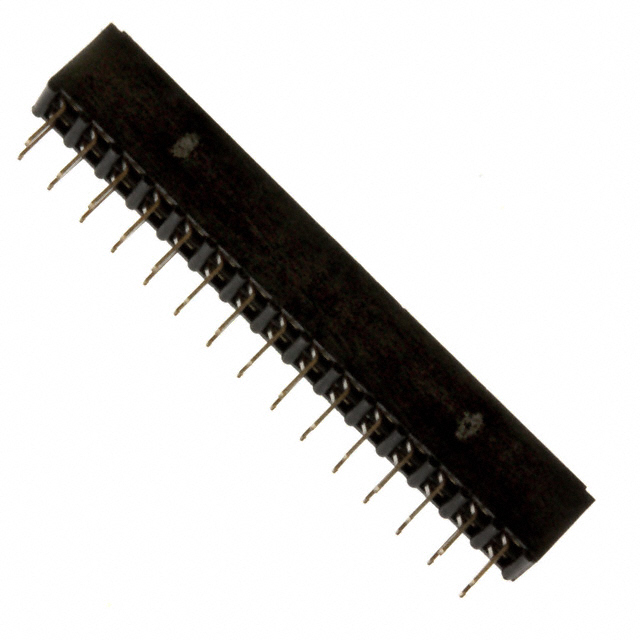

Amphenol ICC (FCI) 63453-130LF	0.079 in	2 mm	Female Socket	Through Hole	Solder	0.079 in	2 mm	Square	Receptacle	Gold	2.5 mm	0.098 in	Tin	0.76 Ám	30 Áin	General Purpose Industrial Medical	UL94 V-0	Push-Pull	2 A	Black	0.177 in	4.5 mm	Phosphor Bronze	-55 °C	125 °C	All	2	60 µin	1.52 µm	200 V	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	30
Amphenol ICC (FCI) 63453-148	0.079 in	2 mm	Female Socket	Through Hole	Solder	0.079 in	2 mm	Square	Receptacle	Gold	2.5 mm	0.098 in	Tin	0.76 Ám	30 Áin	General Purpose Industrial Medical	UL94 V-0	Push-Pull	2 A	Black	0.177 in	4.5 mm	Phosphor Bronze	-55 °C	125 °C	All	2	60 µin	1.52 µm	200 V	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	48
Amphenol ICC (FCI) 63453-342	0.079 in	2 mm	Female Socket	Through Hole	Solder	0.079 in	2 mm	Square	Receptacle	Gold	2.5 mm	0.098 in	Tin	0.38 µm	15 µin	General Purpose Industrial Medical	UL94 V-0	Push-Pull	2 A	Black	0.177 in	4.5 mm	Phosphor Bronze	-55 °C	125 °C	All	2	60 µin	1.52 µm	200 V	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	42
Amphenol ICC (FCI) 63453-150	0.079 in	2 mm	Female Socket	Through Hole	Solder	0.079 in	2 mm	Square	Receptacle	Gold	2.5 mm	0.098 in	Tin	0.76 Ám	30 Áin	General Purpose Industrial Medical	UL94 V-0	Push-Pull	2 A	Black	0.177 in	4.5 mm	Phosphor Bronze	-55 °C	125 °C	All	2	60 µin	1.52 µm	200 V	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	50
Amphenol ICC (FCI) 63453-140	0.079 in	2 mm	Female Socket	Through Hole	Solder	0.079 in	2 mm	Square	Receptacle	Gold	2.5 mm	0.098 in	Tin	0.76 Ám	30 Áin	General Purpose Industrial Medical	UL94 V-0	Push-Pull	2 A	Black	0.177 in	4.5 mm	Phosphor Bronze	-55 °C	125 °C	All	2	60 µin	1.52 µm	200 V	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	40
